Fluke i2500-18 Pinza amperimétrica flexible de CA, 2500 A, bobina de 18 pulgadas, CAT IV 600 V, BNC 3676405

Electricians and maintenance technicians use the Fluke i2500-18 flexible current probe to measure AC current up to 2500 A in tight or awkward spaces. The 18-inch flexible coil wraps around large or irregular conductors, while the BNC connector plugs directly into compatible Fluke meters for instant readings.

Key specifications

• Current range: 2500 A AC
• Frequency range: 20 Hz to 20 kHz
• Output sensitivity: 0.5 mV/A
• Coil length: 18 in (45.7 cm)
• Cable length: 1.8 m
• Safety rating: CAT IV 600 V, CAT III 1000 V
• Connector: BNC
• Maximum conductor diameter: 15 cm
• Operating temperature: -20 °C to 55 °C
• Colour: black with red and yellow markings

Why choose it

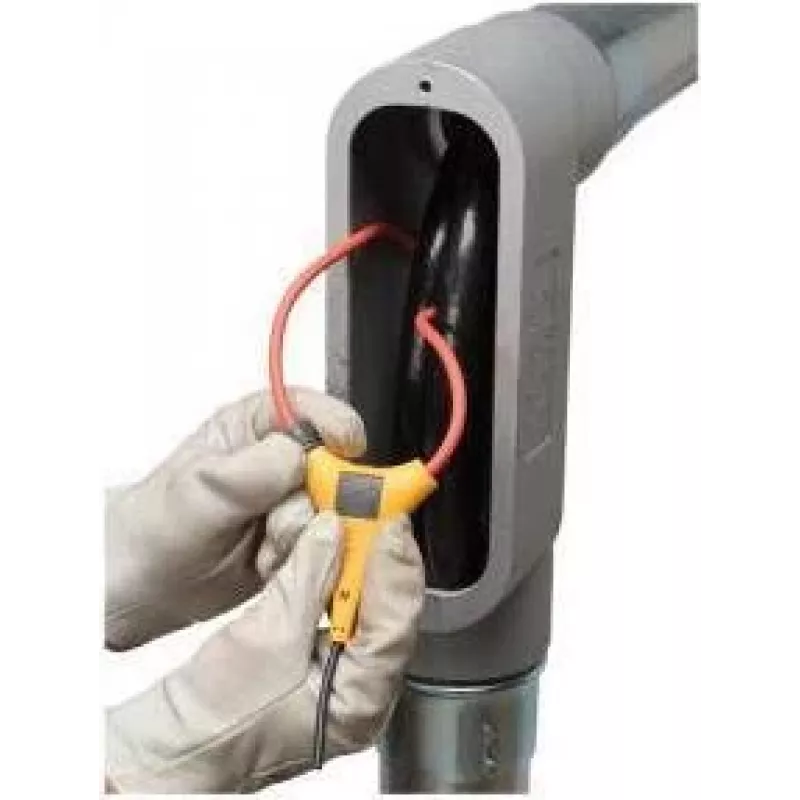

The flexible coil design allows measurement in confined panels, around bus bars, or on large cables without breaking the circuit. Its high CAT IV safety rating makes it suitable for outdoor and utility applications.

Ideal use cases

• Industrial electrical maintenance
• Power quality audits
• HVAC and motor current monitoring
• Utility and substation measurements

Good to know

The probe is powered by the connected Fluke meter, so no batteries are needed. It is sold as a single piece.
