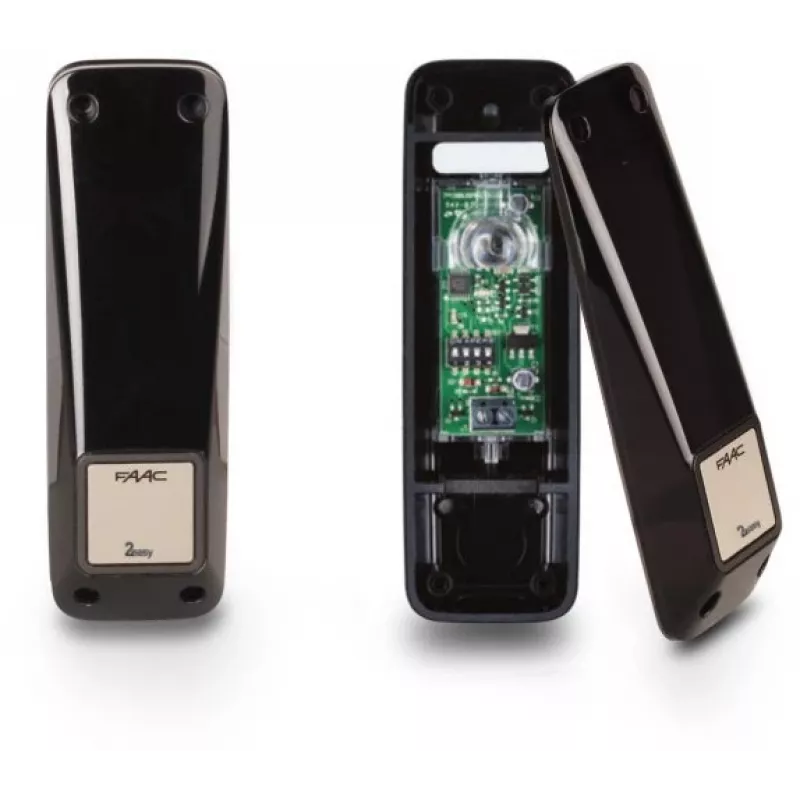

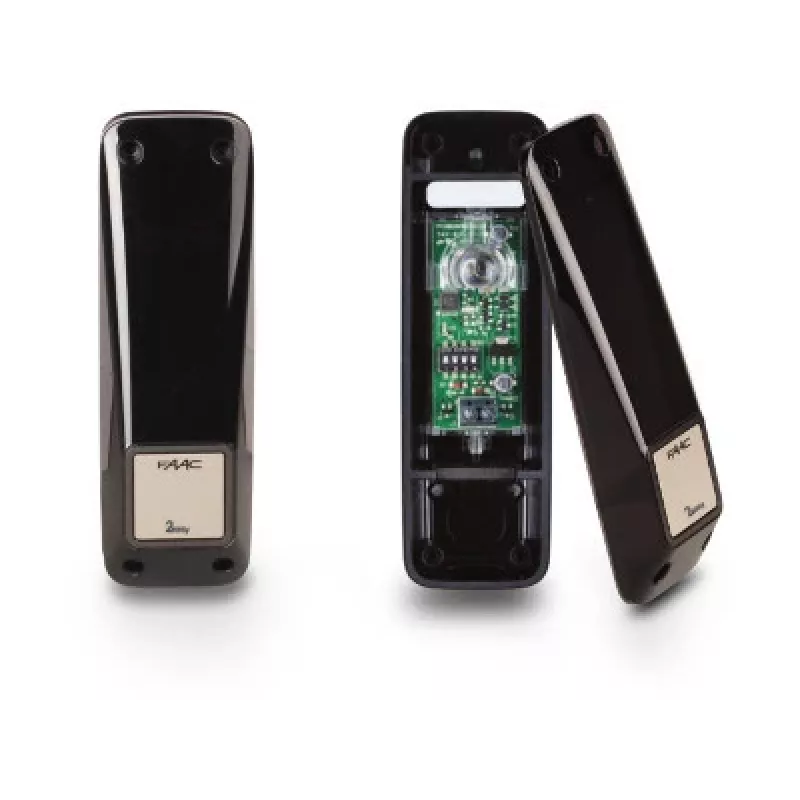

Fotocélulas FAAC XP20BD con ajuste ocular BlueBUS

The FAAC XP20BD photocells are high-performance through-beam infrared sensors designed for automatic gate and door safety. Featuring FAAC's proprietary BlueBUS technology, these photocells offer a simple 2-wire non-polarized connection, reducing installation time and complexity. With a detection range of up to 20 meters and wide horizontal (180°) and vertical (20°) adjustment, they provide reliable protection for residential and commercial applications.

Advantages

BlueBUS technology enables easy wiring with just two wires, eliminating polarity concerns. The optical synchronization ensures immunity to interference from other infrared sources, while the IP54 rating guarantees durability in outdoor environments. LED indicators simplify alignment and status monitoring.

Suitable for

• Automatic sliding, swing, and overhead gates
• Industrial doors and barriers
• Access control systems requiring safety beams

Key specifications

• Technology: FAAC BlueBUS (2-wire system)
• Detection range: 20 meters
• Horizontal adjustment: 180° (±90°)
• Vertical adjustment: 20° (±10°)
• Protection rating: IP54
• Operating temperature: -20°C to +55°C
• Current consumption (Tx+Rx): 10 mA
• Response time: < 20 ms
• Housing material: ABS Plastic
• Compatibility: FAAC BlueBUS control units

Recommendations

For optimal performance, pair with FAAC BlueBUS control boards. Ensure proper alignment during installation using the built-in LED indicators. Regular cleaning of the lenses is recommended to maintain maximum range.
