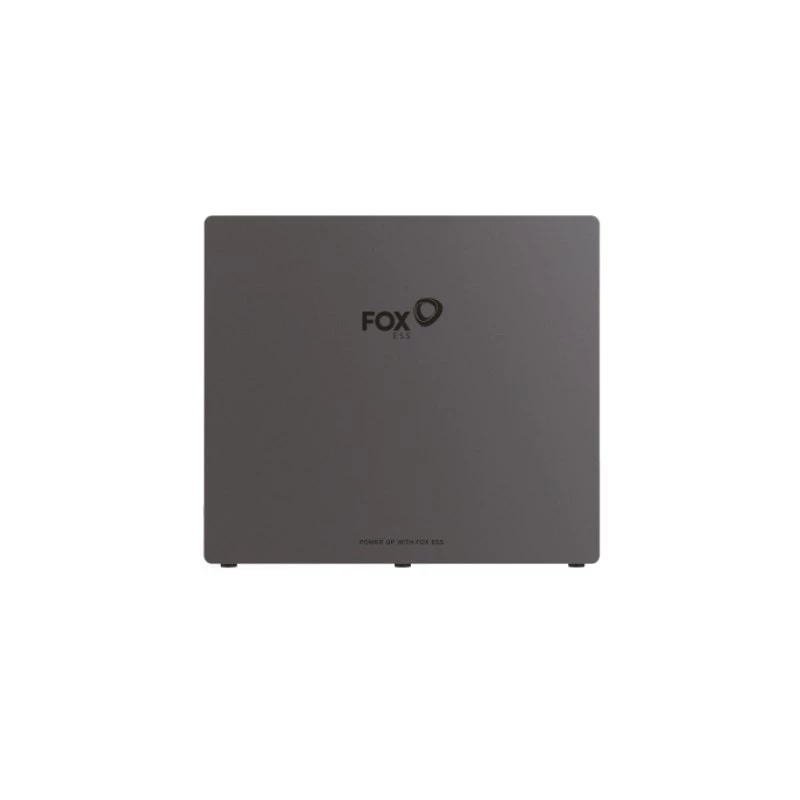

FoxESS EP11 Sistema de almacenamiento de energía con BMS, 10,36 kWh

The FoxESS EP11 is a high-capacity energy storage system designed for residential and commercial solar applications. It integrates a Lithium Iron Phosphate (LiFePO4) battery with a sophisticated Battery Management System (BMS) to provide reliable, long-lasting power storage. With a nominal energy capacity of 10.36 kWh and a usable capacity of 9.32 kWh, it offers efficient energy management for self-consumption, backup power, and peak shaving.

Advantages

Safe and durable LiFePO4 chemistry with over 6000 cycles at 90% depth of discharge. IP65 rated for outdoor installation. Scalable up to 7 modules in parallel for larger energy needs. Integrated BMS ensures optimal performance and safety.

Suitable for

• Residential solar energy storage
• Commercial backup power systems
• Off-grid and hybrid installations

Key specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Energy Capacity: 10.36 kWh
• Usable Energy Capacity: 9.32 kWh
• Nominal Voltage: 51.2 V
• Operating Voltage Range: 44.8 V - 57.6 V
• Max Charge/Discharge Current: 100 A
• Max Charge/Discharge Power: 5.12 kW
• Depth of Discharge: 90%
• Cycle Life: >6000 cycles @ 90% DoD, 25°C
• Communication Interface: CAN / RS485
• Operating Temperature (Charge): 0°C to +50°C
• Operating Temperature (Discharge): -10°C to +50°C
• Ingress Protection: IP65
• Scalability: Up to 7 modules in parallel
• BMS: Integrated
• Installation: Floor-standing
• Module Configuration: 4 x EP2.5 Battery Modules + 1 x BMS-01
• Warranty: 10 Years

Recommendations

For optimal performance, install in a well-ventilated area and ensure proper cable connections. Compatible with FoxESS inverters and most major solar inverters via CAN/RS485.
