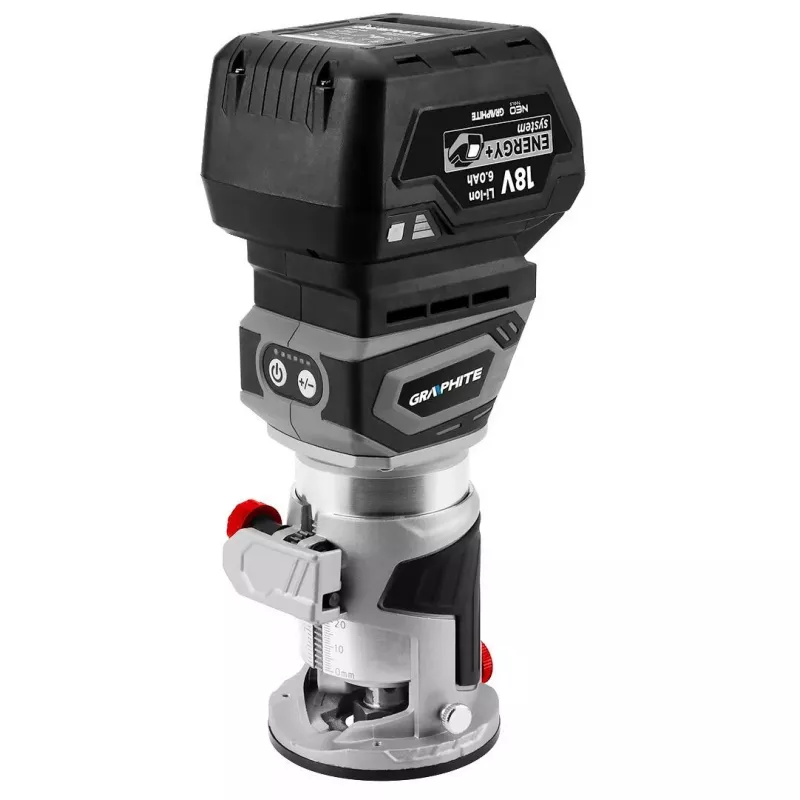

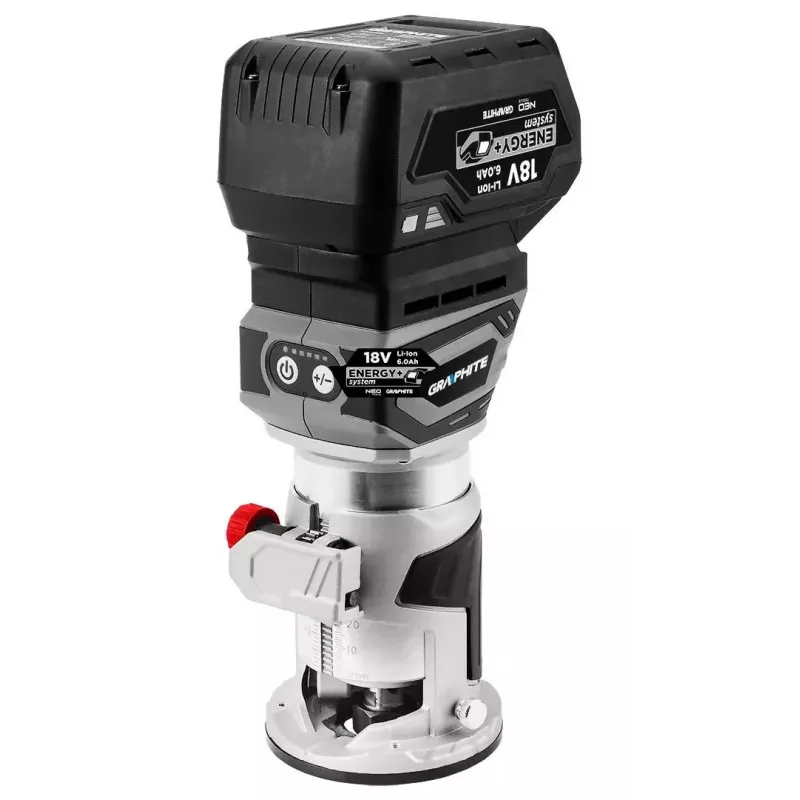

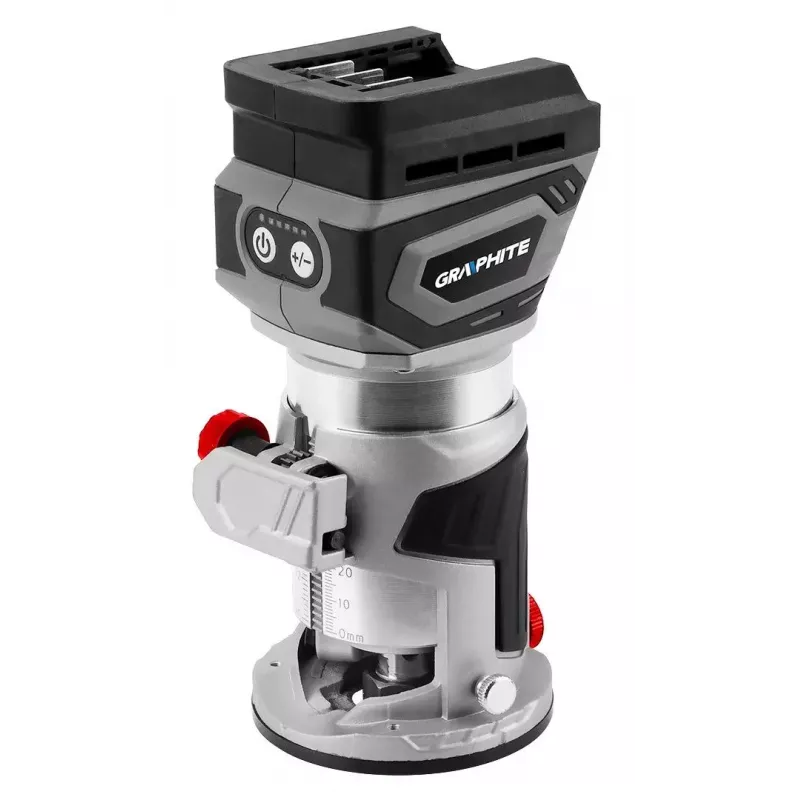

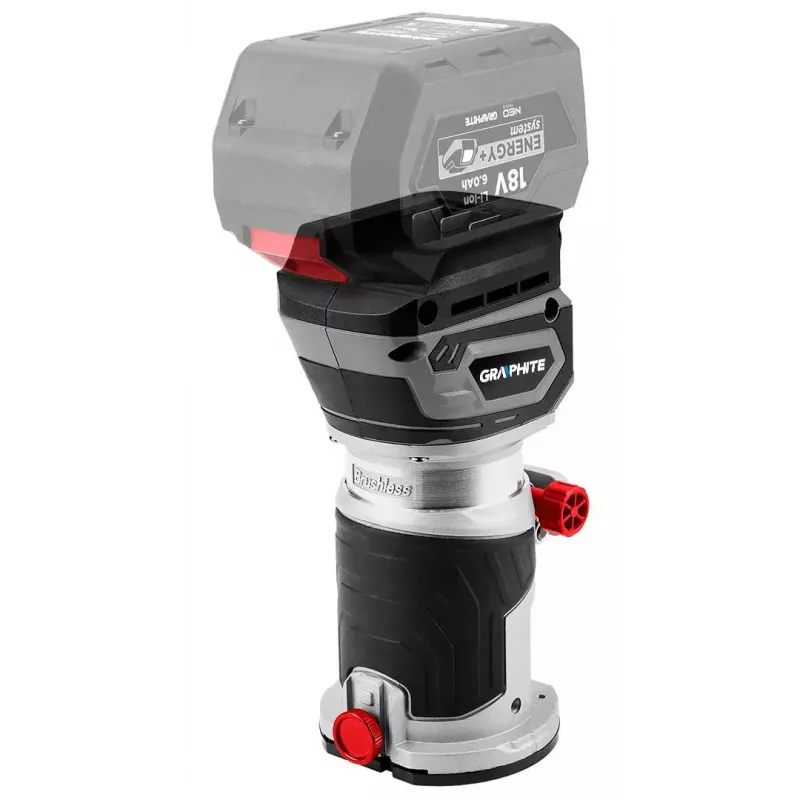

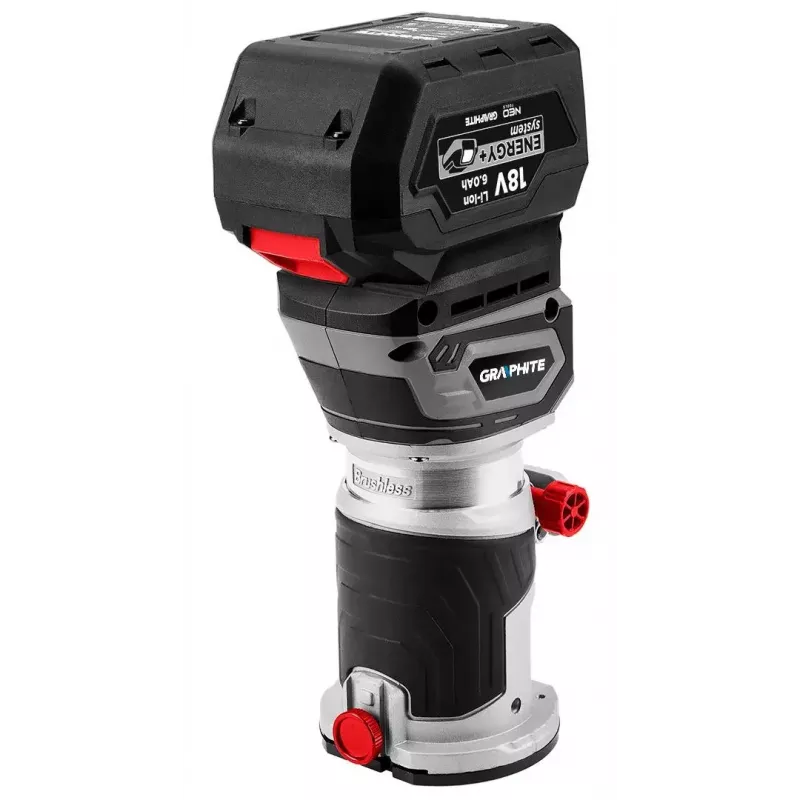

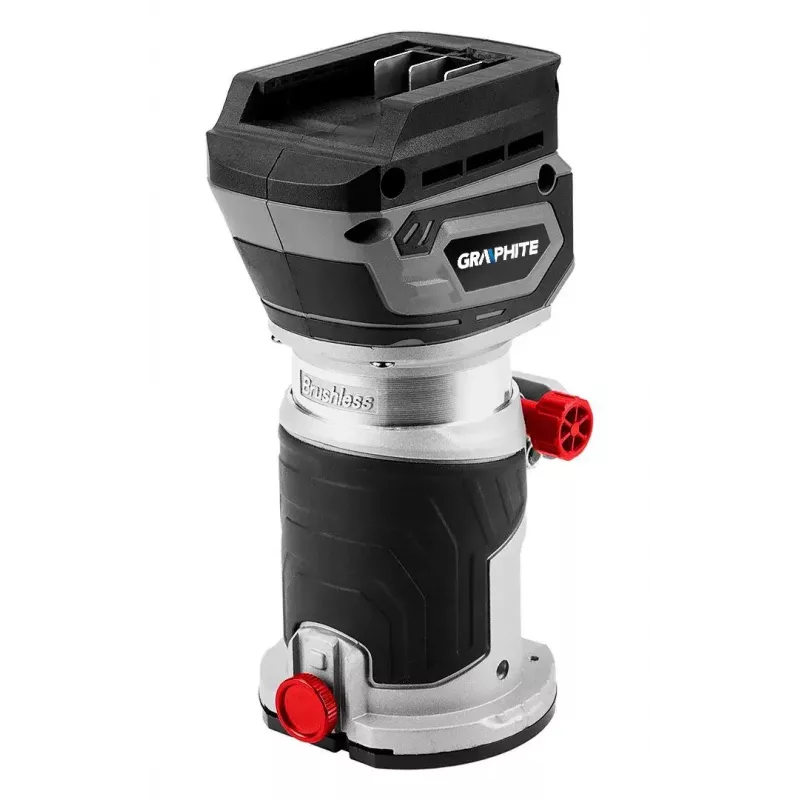

Fresadora GRAPHITE 58GE140

The Energy+ 18V 58GE140 GRAPHITE cordless brushless router trimmer is a compact tool for milling holes, grooves, edges and profiles in wood, wood-based materials, plastics and aluminum. It features a brushless motor, an aluminum base for stable guidance and an LED work light for improved visibility. The tool is part of the Energy+ 18 V battery system and is supplied without a battery; run times at idle depend on the battery capacity used.

Advantages

The brushless motor provides higher efficiency and longer service life compared with brushed motors. Soft start reduces initial torque to protect bearings and gears. A quick-release locking mechanism and cam depth adjustment enable fast and precise changes of milling depth, while the stable aluminum foot ensures easy and controlled guidance on various surfaces. The included LED light improves visibility of the working area.

Suitable for

Key specifications

How to use

Fit a compatible 6–6.35 mm router bit in the collet and securely tighten the spindle lock. Adjust the milling depth using the cam depth adjustment and lock the setting with the quick-release mechanism. Hold the router with both hands, place the stable aluminum foot flat on the work surface and power the tool from a charged Energy+ 18 V battery. Use steady, controlled movements along the workpiece, allowing the tool to reach operating speed before engaging the material.

Recommendations

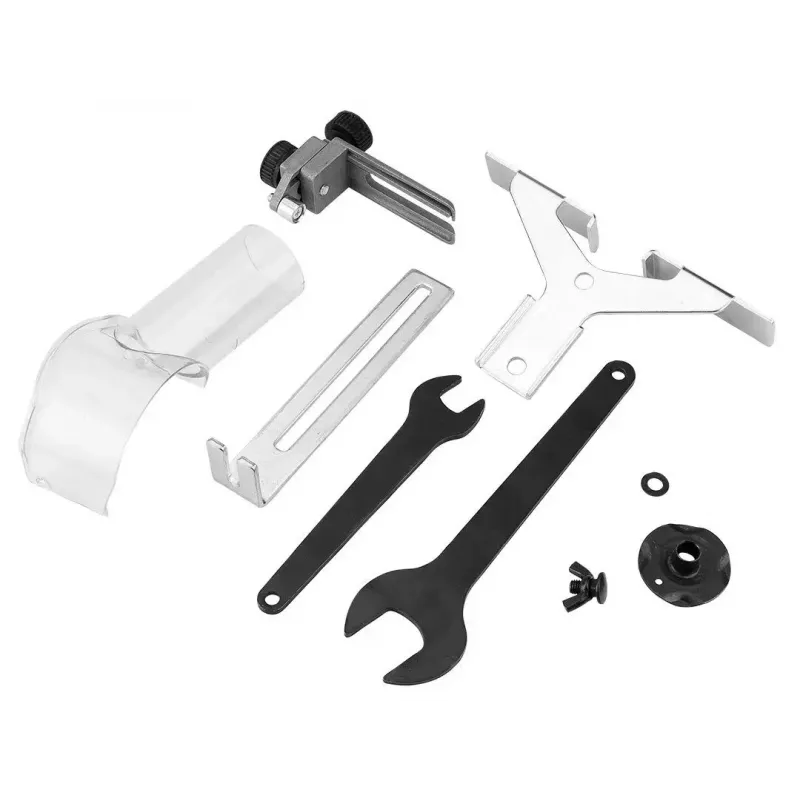

Use appropriate personal protective equipment (eye and ear protection and dust extraction). For best results with prolonged runtime, select Energy+ batteries with higher capacity: 2.0 Ah provides approx. 25 minutes idle operation, 4.0 Ah approx. 50 minutes, and 6.0 Ah approx. 75 minutes. Store and charge batteries according to the manufacturer’s instructions. The router is supplied with collet, dust extraction, angle arm, wrench and parallel guide.
