Fränkische SSG-E-V 50 abrazadera de distancia M50 acero zinc-níquel galvanizado 20570050

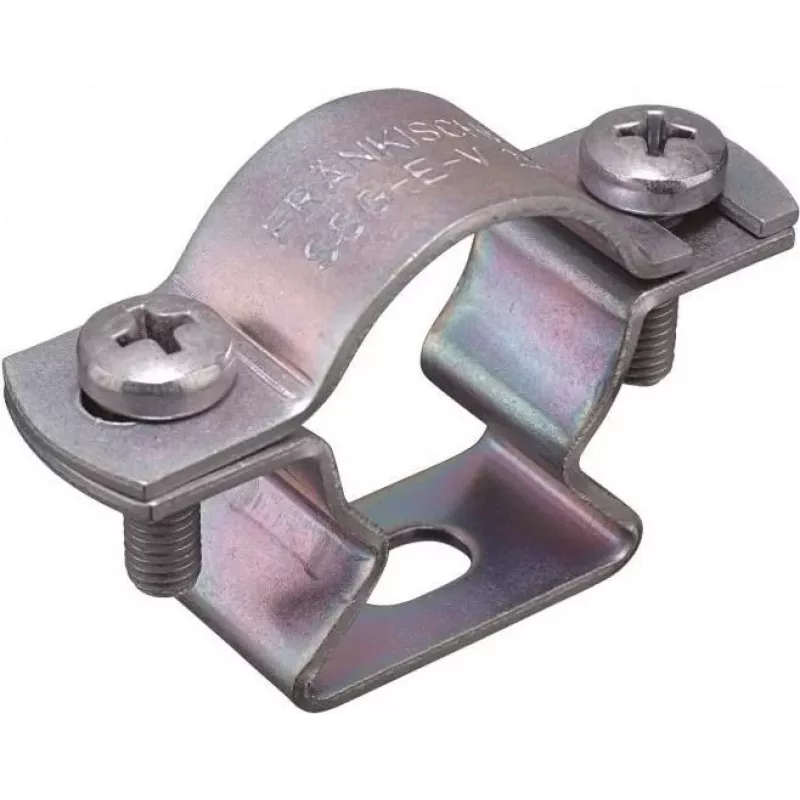

Securing conduits at a fixed distance from walls or ceilings can be a challenge, especially in demanding environments where corrosion resistance and temperature stability are critical. The Frnkische SSG-E-V 50 spacer clamp solves this by providing a robust, zinc-nickel galvanized steel clamp for M50 conduits, ensuring a 15 mm stand-off from the mounting surface.

Who is it for

Electrical installers and industrial maintenance teams working with Fränkische STARO-Rohr conduit systems in outdoor, industrial, or other harsh conditions where high corrosion protection and wide temperature tolerance are required.

Main features

• Zinc-nickel (Zn-Ni) galvanized steel for very high corrosion protection, suitable for C4/C5 environments
• Fits conduits with outer diameter 50.0 - 51.0 mm (M50)
• Provides 15 mm distance between conduit and mounting surface
• Mounting hole diameter 7 mm, compatible with M6 screws
• Temperature resistance from -45 °C to +400 °C
• Halogen-free and UV resistant
• Compliant with DIN EN 61386-1

Specifications

• Material: Steel
• Surface treatment: Zinc-nickel (Zn-Ni) galvanized
• Nominal size: M50
• Suitable conduit outer diameter: 50.0 - 51.0 mm
• Clamp type: Spacer clamp
• Distance to mounting surface: 15 mm
• Mounting hole diameter: 7 mm
• Colour: Metallic (silver-grey)

Tips

Use with M6 screws for secure mounting. The spacer design ensures proper air circulation around the conduit, which can help with heat dissipation in high-temperature applications.
