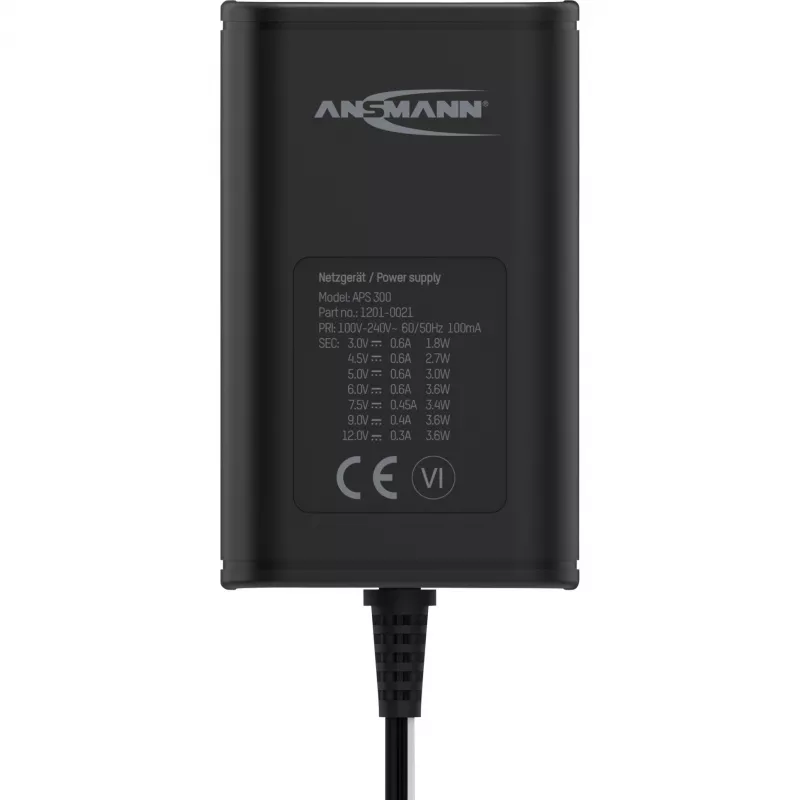

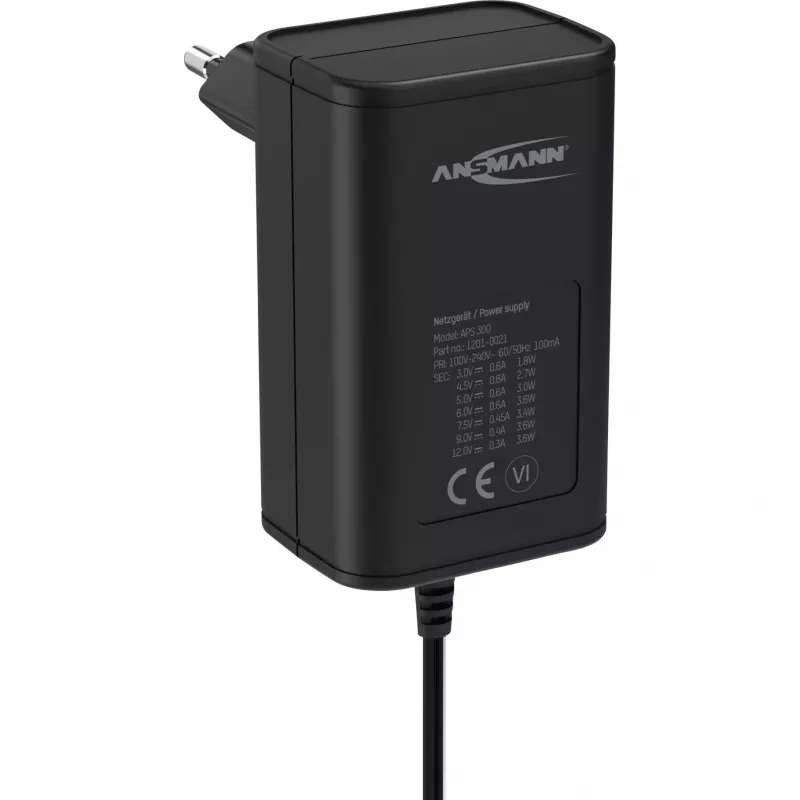

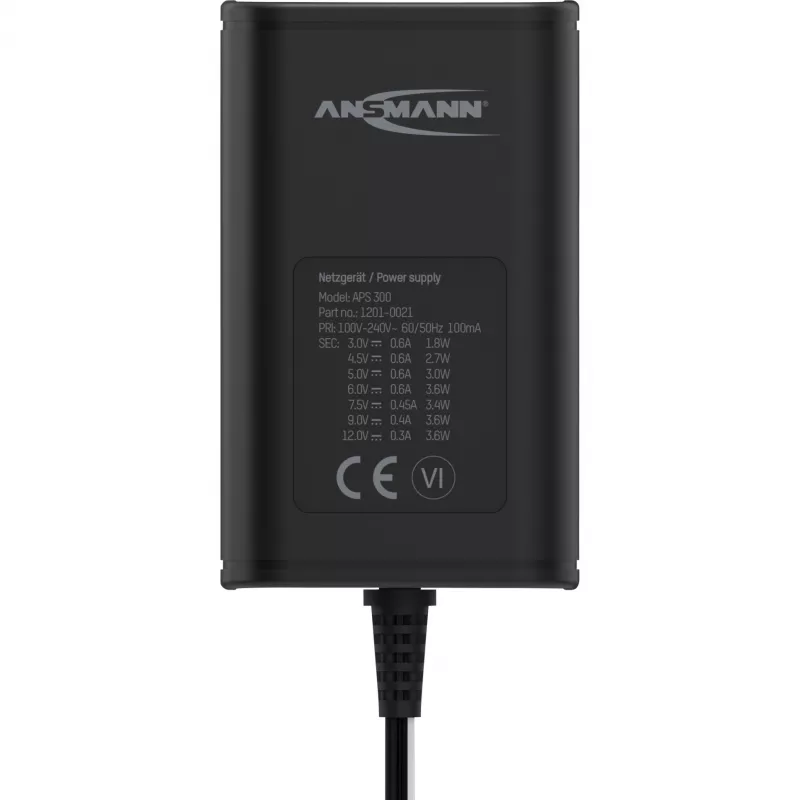

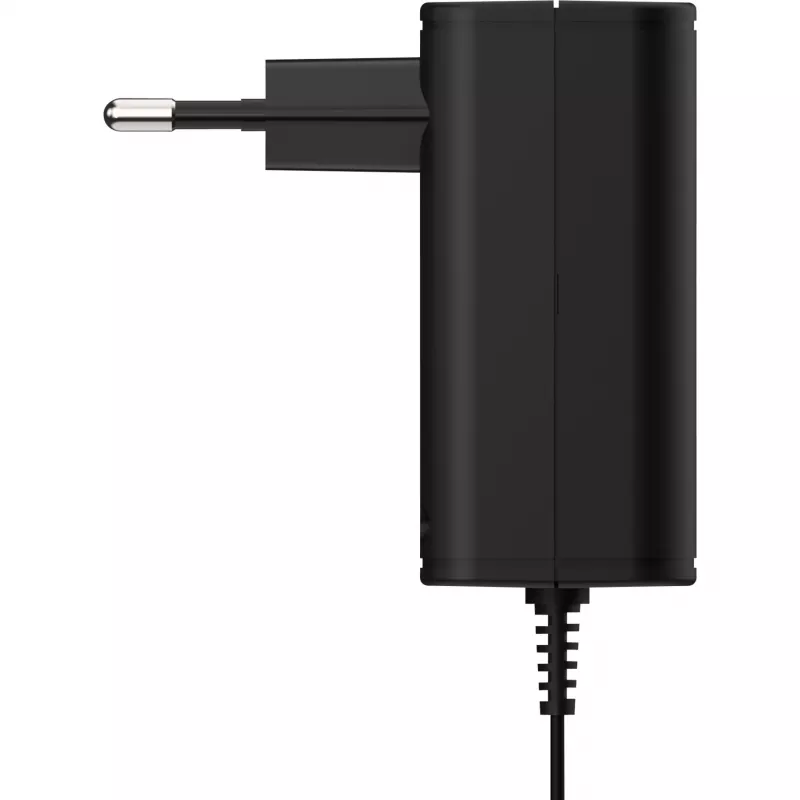

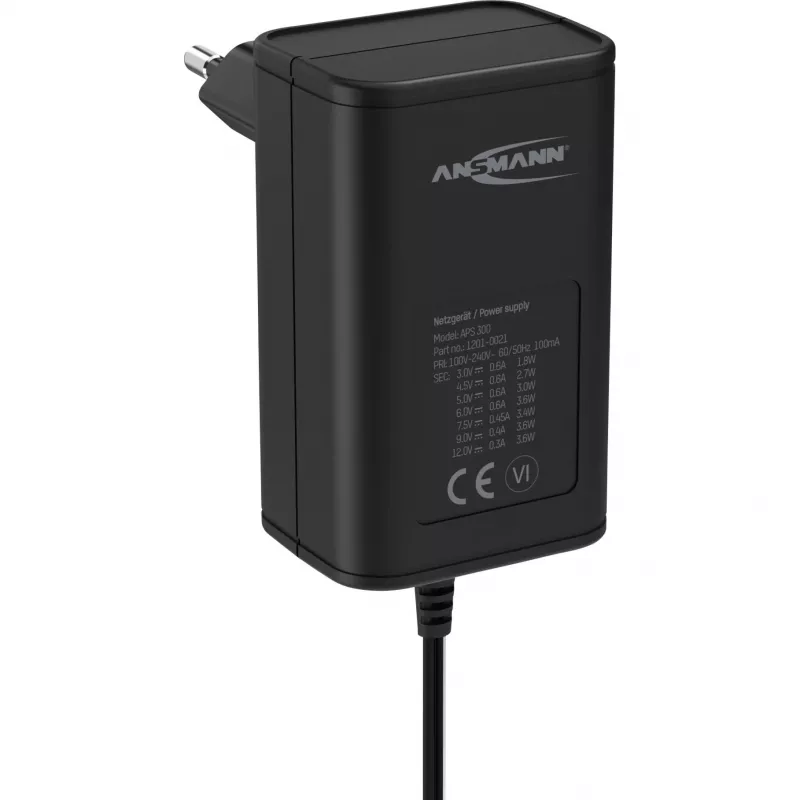

Fuente de alimentación Ansmann APS 300

The Ansmann APS 300 is a universal indoor power adapter designed to supply small electronic devices with a selectable DC output between 3 and 12 V. It includes a seven-part set of interchangeable input plugs and common barrel connectors to ensure compatibility with a wide range of handheld computers, digital cameras, measuring instruments, MP3/CD players and similar portable devices. The adapter is housed in a black casing and is suitable for devices drawing up to 0.6 A (3.6 W).

Advantages

The APS 300 provides a voltage-stabilized, short-circuit-proof output with a rotary switch for easy selection of the required DC voltage. The included multi-plug set increases compatibility across many devices, and the compact black design fits unobtrusively into indoor environments. The adapter accepts a wide mains input range (100–240 V) so it can be used in different regions.

Suitable for

• Handheld computers and PDAs
• Digital cameras and camcorders
• Measuring instruments and test equipment
• MP3 players, CD players and other small audio devices
• Any small electronic device requiring 3–12 V DC up to 0.6 A

Key specifications

• Manufacturer: ANSMANN
• Model: APS 300 (MPN 1201-0021)
• Input voltage: 100–240 V AC
• Output voltage: adjustable 3–12 V DC (rotary switch)
• Maximum output current: 0.6 A
• Maximum output power: 3.6 W

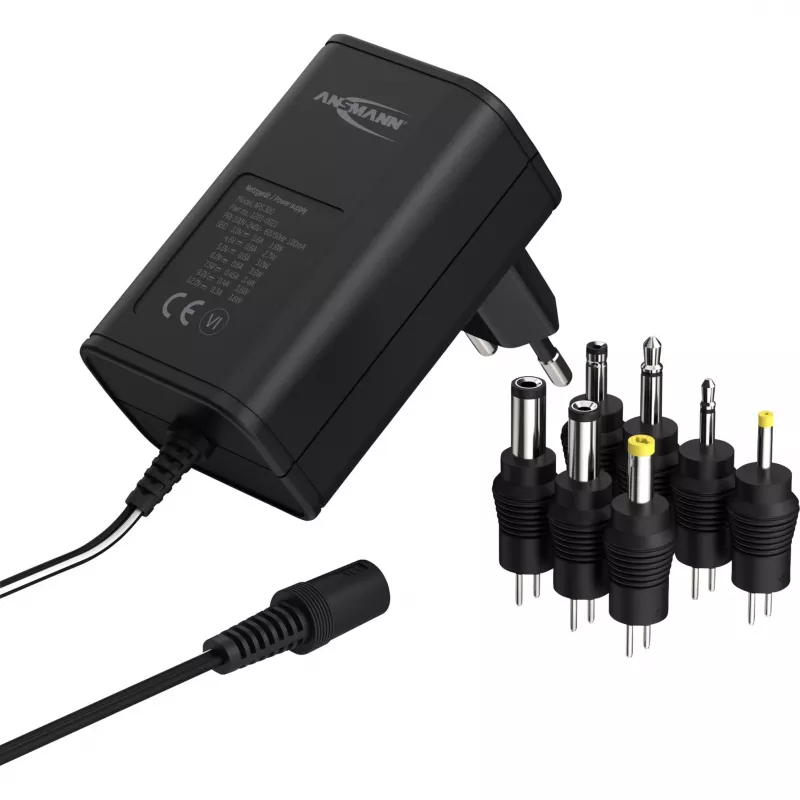

• Included: seven-piece interchangeable plug set (common barrel connectors)
• Colour: Black
• EAN: 4013674164073

How to use

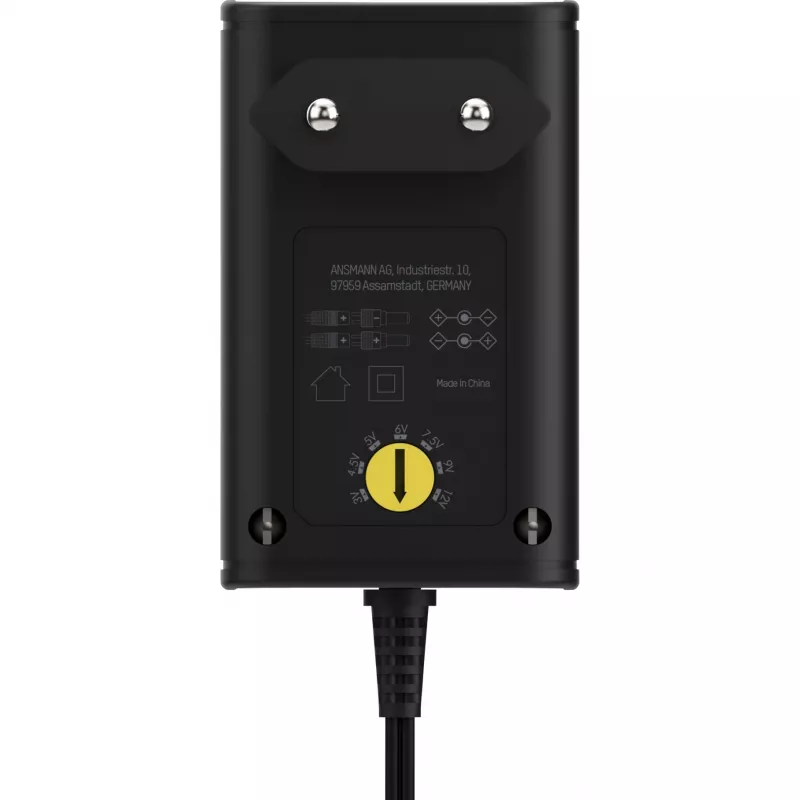

Select the required output voltage using the rotary switch on the back of the adapter, then attach the appropriate plug from the supplied set to match your device's input jack. Connect the adapter to the mains supply (100–240 V AC) and then to the device. Verify that the device’s current draw does not exceed 0.6 A and that the selected voltage matches the device specification before powering on.

Recommendations

Use only the supplied or compatible connector that provides a secure fit; avoid forcing mismatched plugs. Check the device voltage and current requirements before use. Do not exceed the maximum output current of 0.6 A. For indoor use only and avoid exposure to moisture or extreme temperatures.
