Fuente de alimentación Enermax Revolution DFX 850 W

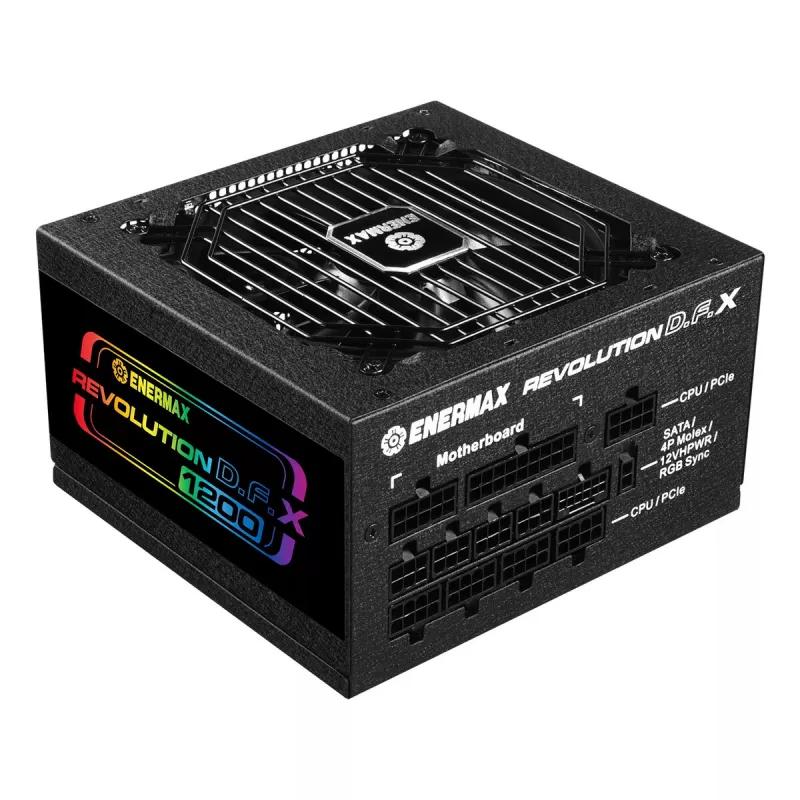

The REVOLUTION D.F. X power supply is Intel ATX 3.0 and PCIe 5.0 ready, featuring a native 600W 12VHPWR cable to deliver stable power to next-generation graphics cards such as NVIDIA® GeForce RTX™ 40 Series. It complies with Intel ATX 3.0 requirements including fast power-on times and strict power excursion handling to support demanding gaming and overclocking scenarios.

Advantages

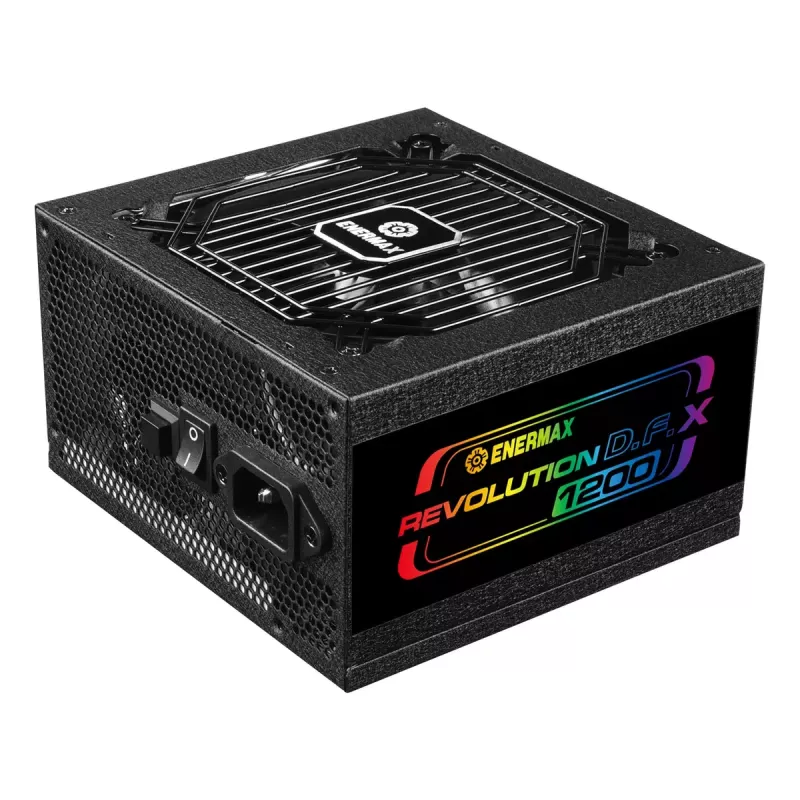

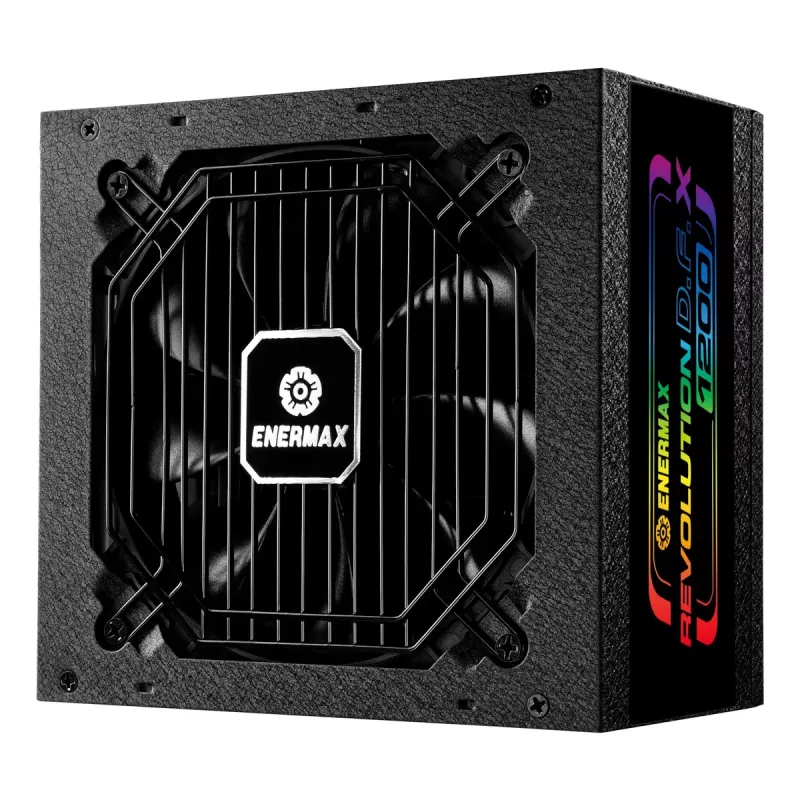

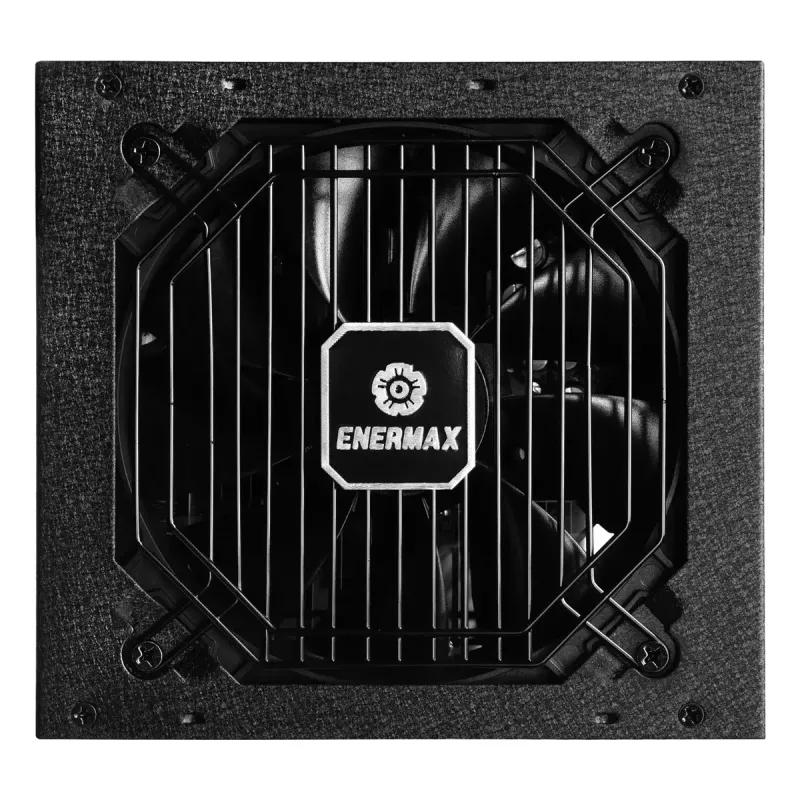

The unit supports up to 200% power excursion for consistent GPU power delivery, offers high efficiency with 80 PLUS Gold certification, and achieves more than 90% efficiency under standard load. A compact 140 mm depth allows easier installation in most mainstream cases. Built-in ARGB side panel with 14 lighting modes and an RGB control button provide adjustable illumination and easy on/off control. Dust-free Rotation technology helps keep the fan and PSU interior clean, improving long-term reliability.

Key specifications

How to use

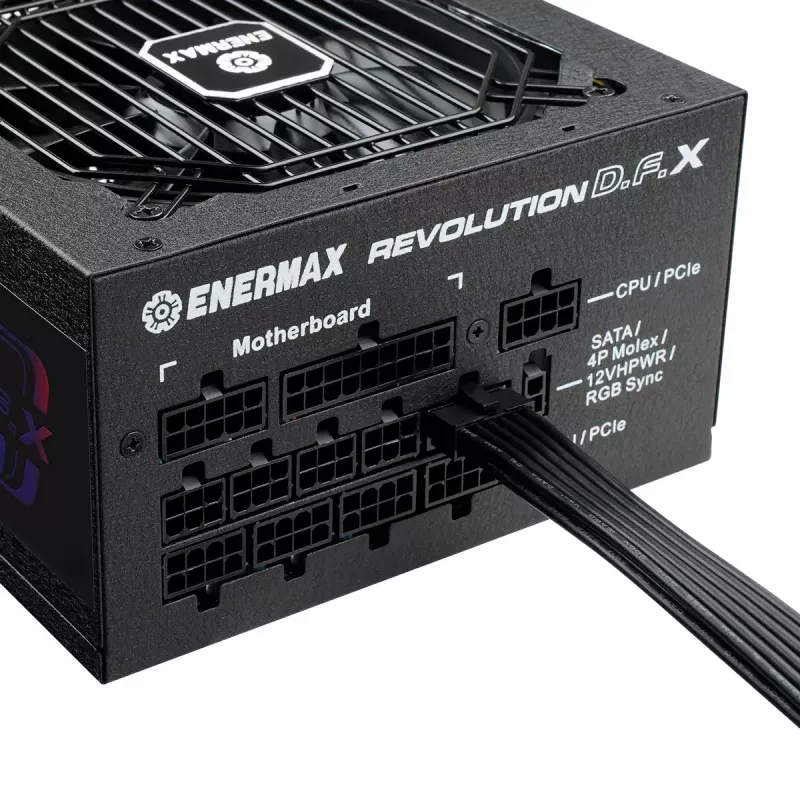

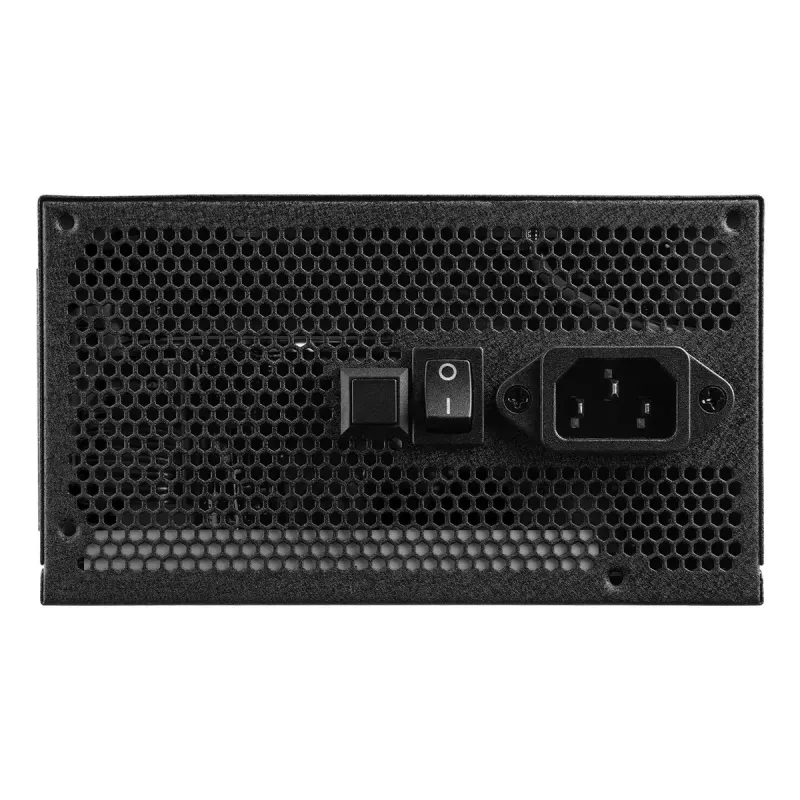

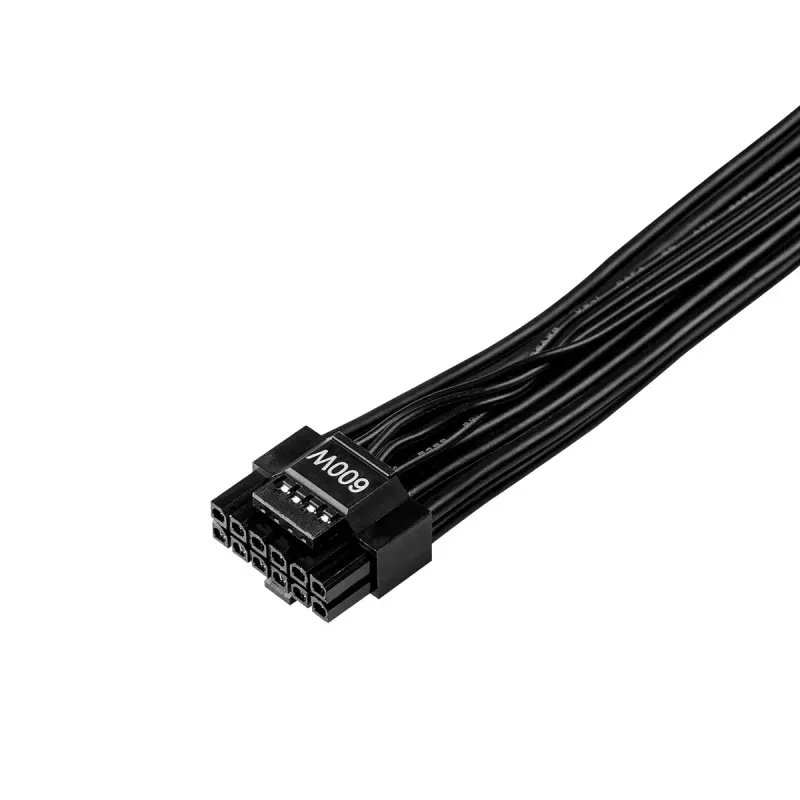

Align the 12+4 pin 12VHPWR connector straight with the GPU port and insert it evenly without bending. Hold both sides of the plug and push it straight in until fully seated, avoiding gaps and ensuring no downward bending within 40 mm of the plug. Use the included adaptor cable when connecting via dual 8-pin PCIe connectors from the PSU side if required. Use the RGB control button next to the power switch to cycle lighting modes or to turn the ARGB illumination off.

Recommendations

Ensure your case and GPU are compatible with the 12VHPWR connector and check clearance for the 140 mm PSU depth. Follow motherboard and GPU manufacturer guidelines when connecting high-power cables and avoid forcing the connector to prevent damage.
