Fuente de alimentación Ernitec ELECTRA-PWR-480-48 480W 48V

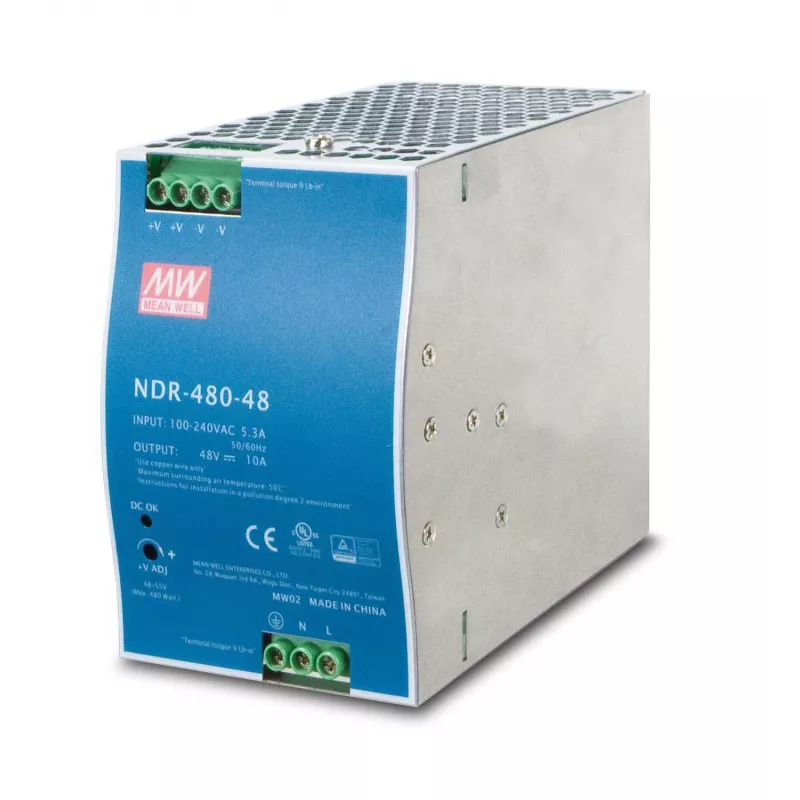

The Ernitec ELECTRA-PWR-480-48 is a compact DIN-rail power supply that provides 48V DC at up to 480W from a universal 100–240V AC input. Designed for industrial Ethernet and other equipment in harsh environments, the unit fits TS-35 rails (7.5 or 15 mm) and uses convection cooling to maintain stable operation across a wide ambient temperature range.

Advantages

This compact power supply offers a high 480W output in a space-saving housing suitable for DIN-rail installation. It accepts universal AC input voltage and delivers regulated 48V DC power while including protections against short circuit, overload, over voltage and over temperature. Convection cooling and a wide operating temperature range allow reliable performance in demanding industrial conditions.

Suitable for

• Industrial Ethernet switches and routers
• Automation controllers and PLCs
• Outdoor or factory floor equipment in harsh environments
• DIN-rail power distribution cabinets

Key specifications

• Brand: ERNITEC
• Model (MPN): ELECTRA-PWR-480-48
• EAN: 5715063755822
• Output: 48V DC
• Power: 480W
• Input: 100–240V AC (universal)
• Mounting: DIN rail TS-35 (7.5/15 mm)
• Cooling: convection (free air)
• Protections: short circuit, overload, over voltage, over temperature
• Operating temperature: -20 to 70 °C (max)

How to use

Mount the unit on a TS-35 DIN rail and connect the AC input to a properly fused 100–240V AC supply following local electrical codes. Connect the 48V DC output to the load, observing correct polarity. Ensure adequate spacing and ventilation for convection cooling and verify protective settings on the connected equipment. Perform initial startup tests with a suitable load and monitoring to confirm stable output and proper functioning of protections.

Recommendations

Install the power supply in a ventilated enclosure or panel, avoid covering vents, and maintain ambient conditions within the specified -20 to 70 °C range. Use proper fusing on the AC input and follow grounding and wiring standards to ensure safe, reliable operation.
