Fuente de alimentación FSP Hydro K PRO 750W 24-pol ATX 80 PLUS Bronze ventilador 120 mm negro

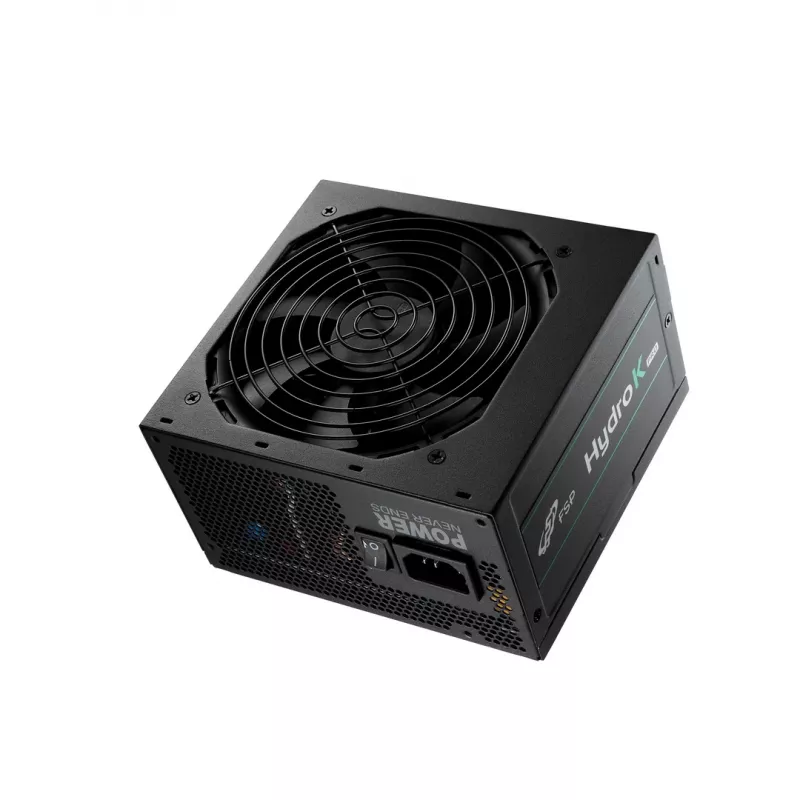

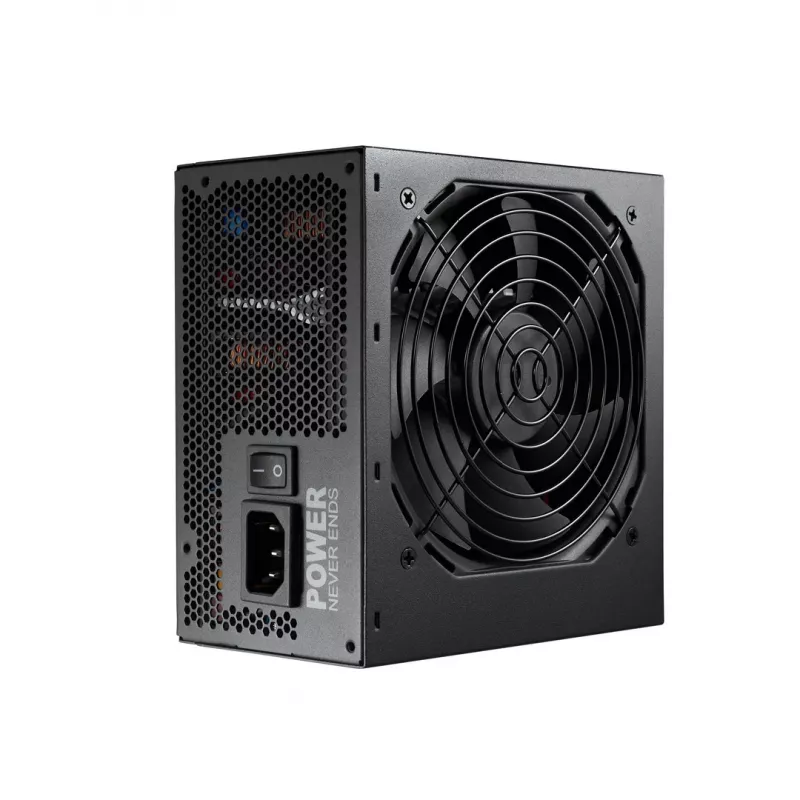

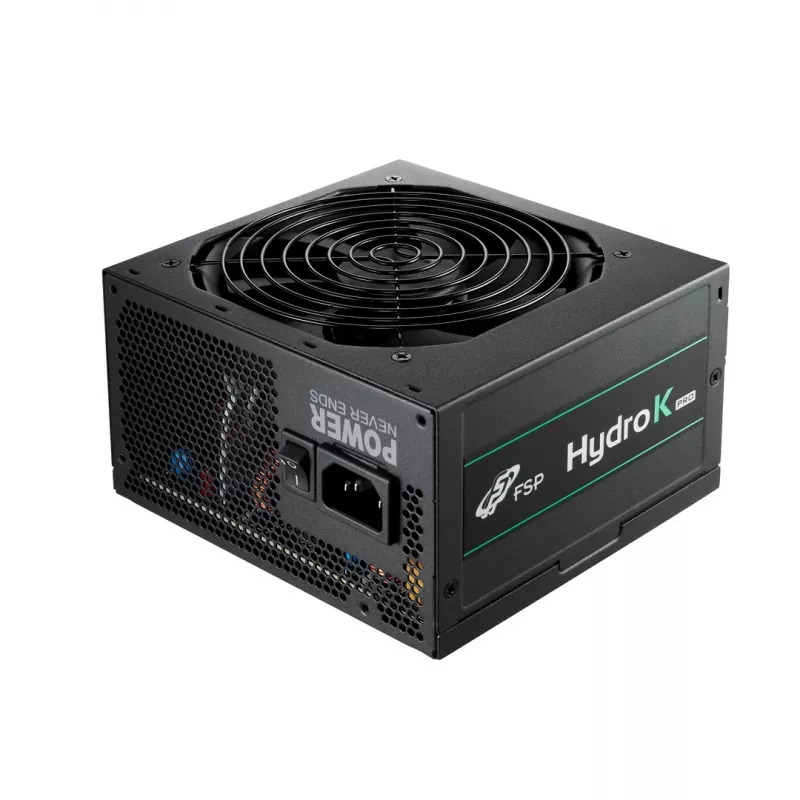

FSP Hydro K PRO 750W is a black ATX power supply unit engineered for standard desktop PCs and small servers. It delivers 750 W of continuous power with an 80 PLUS Bronze efficiency rating (approximately 88%), features a 24-pin ATX motherboard connector and integrated 120 mm active cooling. The unit accepts AC input in the 220–240 V, 50/60 Hz range and includes a set of power cables for CPU, PCIe, peripheral (Molex) and SATA devices with supplied cable lengths for motherboard and CPU connections.

Advantages

The Hydro K PRO 750W combines stable 750 W output with Bronze-level efficiency to reduce energy loss under typical loads. Its 120 mm cooling fan provides active airflow to maintain operating temperatures while keeping acoustic levels moderate. Compact compatibility with standard ATX cases and a 24-pin motherboard connector ensures straightforward installation in most desktop builds. Included cables for CPU, PCIe, Molex and SATA simplify system assembly without the need for additional adapters.

Key specifications

• Total power: 750 W
• Efficiency: approximately 88% (80 PLUS Bronze)
• Motherboard connector: 24-pin ATX

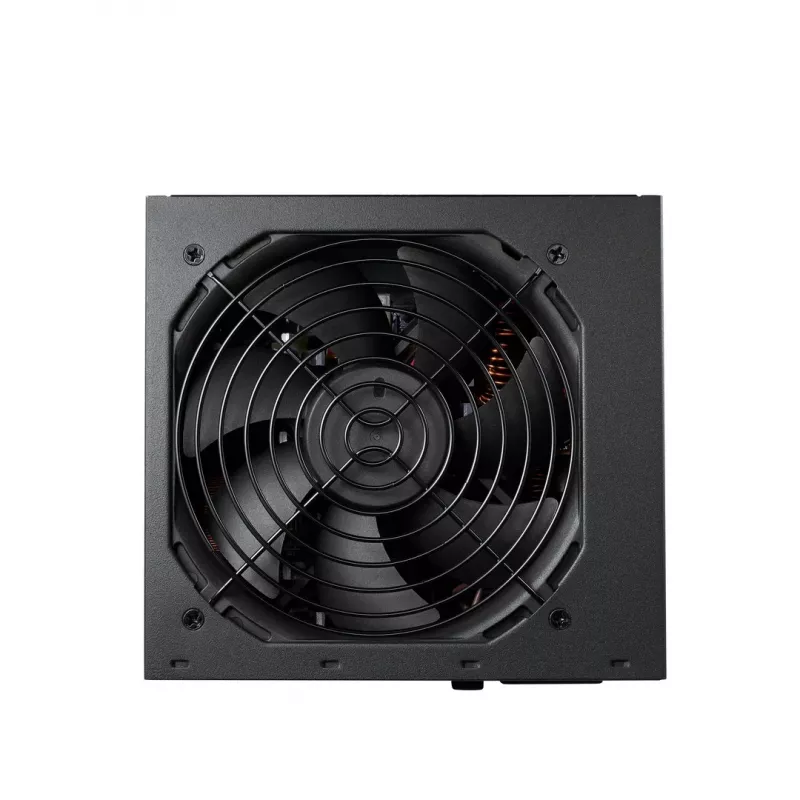

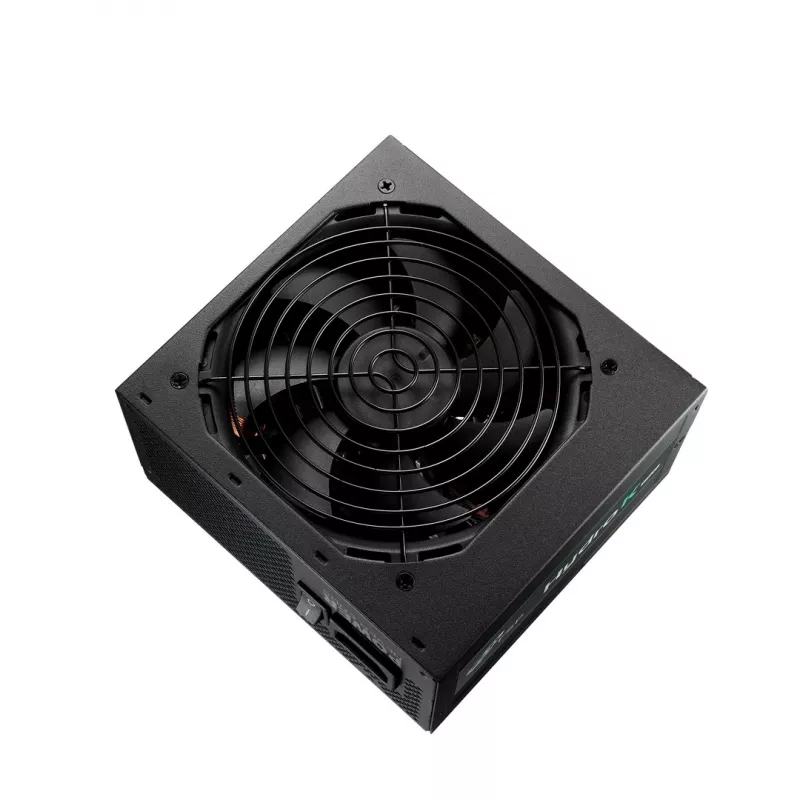

• Cooling: 120 mm active fan

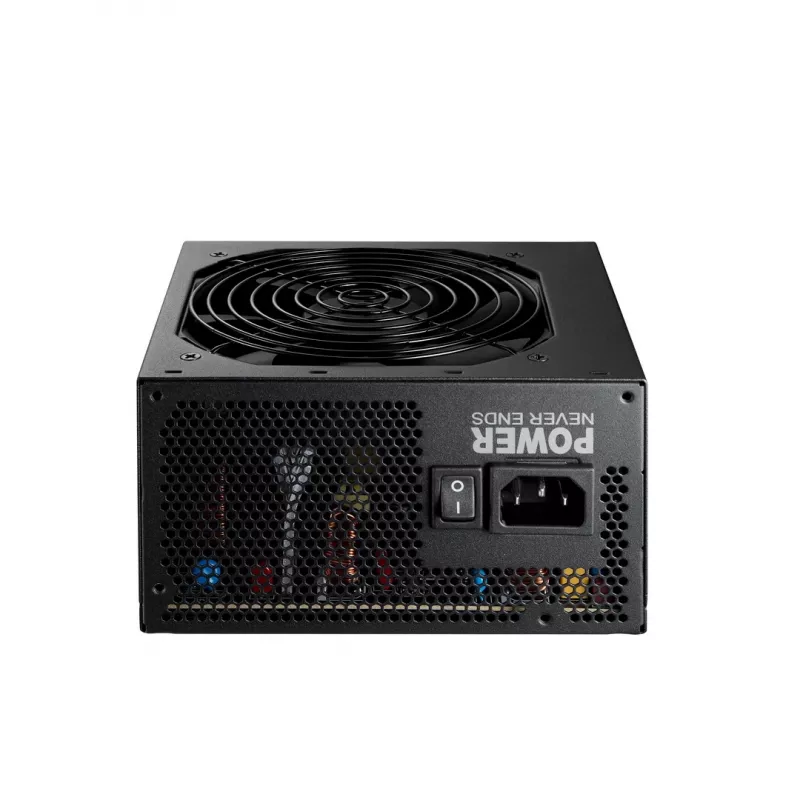

• AC input range: 220–240 V, 50/60 Hz
• Color: Black
• Included cables: CPU, PCIe, Peripheral (Molex), SATA
• Cable lengths: motherboard ~53 cm, CPU ~75 cm

How to use

Install the PSU into a compatible ATX case following standard safety procedures: disconnect mains power before beginning, secure the unit to the case with screws, connect the 24-pin ATX cable to the motherboard, attach the CPU power cable to the appropriate connector on the board, and route PCIe, SATA and Molex cables to your components. Ensure the fan intake and exhaust are not obstructed and that internal cable routing does not block airflow. After all connections are made, restore mains power and verify system POST and stable voltages before extended use.

Recommendations

For reliable operation, place the PSU in a case with adequate ventilation and avoid operating at sustained maximum load. Periodically check and clean dust from the fan and vents. Use the included cables without excessive bending or tension and ensure connectors are fully seated. Match the unit’s power capability to your system’s peak draw with some headroom for stability and future upgrades.
