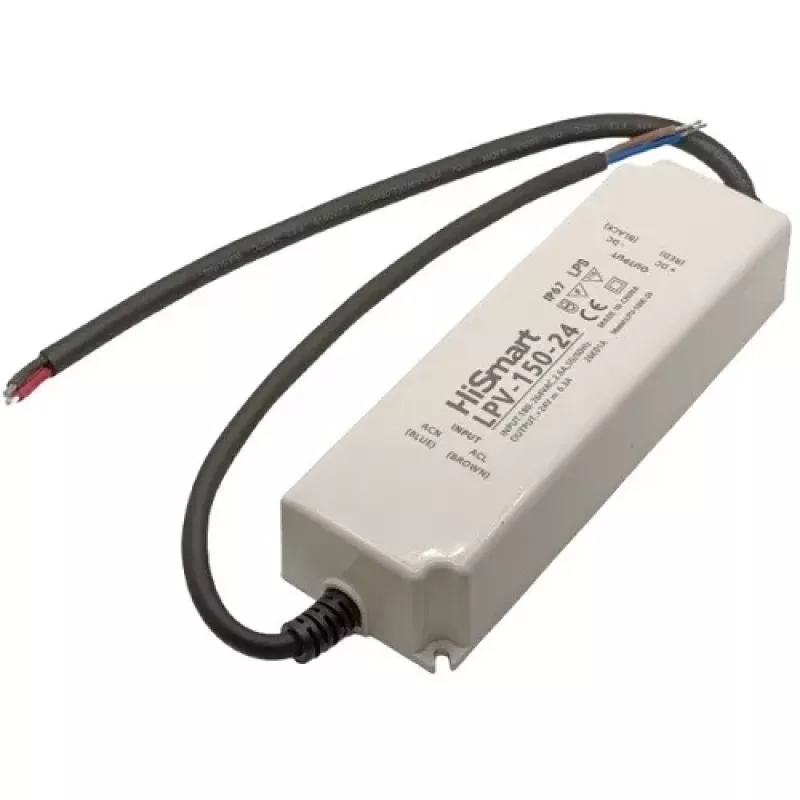

Fuente de alimentación HISMART LPV-150-24 24V 6,3A 150W IP67

The HISMART LPV-150-24 is a high-performance, industrial-grade power supply delivering 24V DC output at 6.3A with 150W of power. Designed for reliability in demanding environments, it features an IP67 rating for dust and water ingress protection, making it ideal for outdoor and industrial applications. With a wide input voltage range of 100-240V AC and high efficiency >88%, this constant voltage power supply ensures stable and efficient operation.

Advantages

This power supply offers robust protection features including overload, short circuit, over voltage, and over temperature protection. Its fanless, natural convection cooling design ensures silent operation and long lifespan. The aluminum alloy housing provides excellent heat dissipation and durability. With a compact size and wire leads for input and output, installation is straightforward.

Suitable for

• LED lighting installations (indoor and outdoor)
• Industrial control systems
• Outdoor electronic equipment
• Security and surveillance systems
• Automation and process control

Key specifications

• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Output Voltage: 24V DC
• Output Current: 6.3A
• Output Power: 150W
• Ingress Protection: IP67
• Efficiency: >88%
• Power Factor: >0.95
• Protection: Overload, Short Circuit, Over Voltage, Over Temperature
• Cooling: Natural Convection (Fanless)
• Operating Temperature: -25°C to +50°C
• Housing Material: Aluminum Alloy
• Connection: Wire Leads (Input & Output)
• Ripple & Noise: <150mVp-p
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and avoid exposure to extreme temperatures beyond the specified range. This power supply is suitable for constant voltage LED drivers and industrial equipment requiring a stable 24V DC supply.
