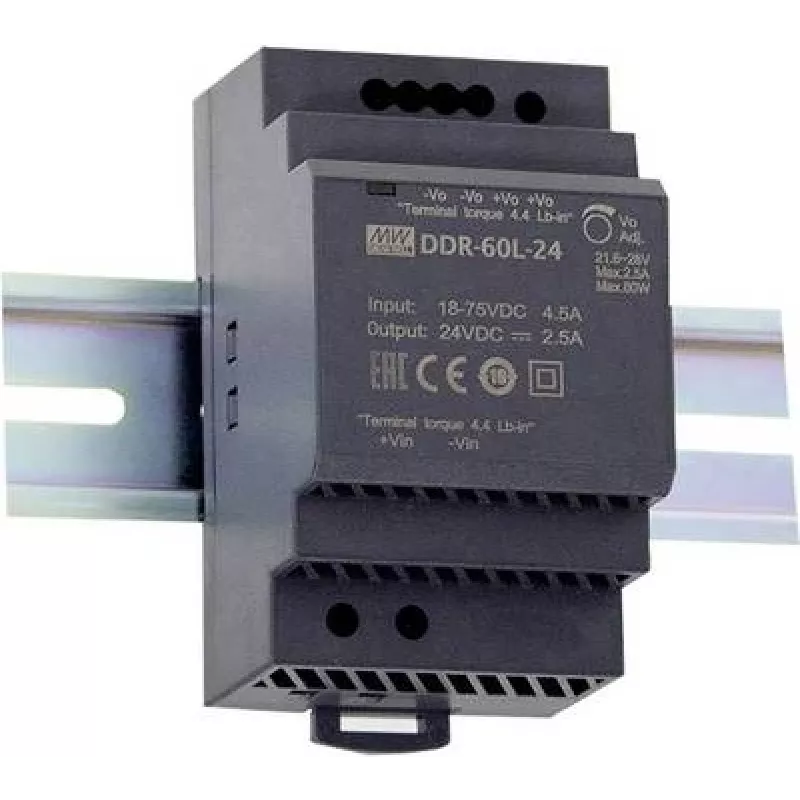

Fuente de alimentación MEAN WELL DDR-60L-24

The MEAN WELL DDR-60L-24 is an ultra-slim industrial DC-DC DIN-rail converter that accepts a wide input range of 18–75 VDC and provides a single fixed output of 24 VDC at up to 2.5 A (60 W). With compact dimensions of 52.5 mm (W) × 54.5 mm (D) × 90 mm (H) and RoHS compliance, this module is designed for space-constrained control cabinets and industrial power distribution where a reliable 24 V supply is required.

Advantages

The converter offers a wide input voltage window for use with diverse battery and intermediate bus systems, a compact DIN-rail form factor that saves panel space, and regulated 24 V output suitable for industrial controllers and sensors. RoHS compliance ensures it meets environmental directives, while the 60 W power rating supports common automation loads.

Suitable for

• Industrial control cabinets and automation racks
• Battery-powered systems and vehicle electronics with 18–75 V inputs
• Powering PLCs, sensors, relays and field devices that require 24 V

Key specifications

• Model: MEAN WELL DDR-60L-24
• Input voltage: 18–75 VDC
• Output: 24 VDC, 2.5 A (60 W)
• Dimensions: 52.5 × 54.5 × 90 mm (W × D × H)
• Mounting: DIN-rail
• Compliance: RoHS

How to use

Mount the DDR-60L-24 on a standard DIN rail inside the control cabinet and connect the input terminals to the 18–75 VDC source, observing correct polarity. Connect the 24 V output to the load, ensuring the combined load does not exceed 2.5 A. Provide appropriate upstream protection (fuse or circuit breaker) and observe wiring best practices for secure terminals and correct wire sizing.

Recommendations

Operate the converter within the specified input range and ambient temperature limits. Avoid exceeding the 60 W rating; allow clearance for ventilation and follow manufacturer instructions for grounding and protective measures to ensure reliable long-term operation.
