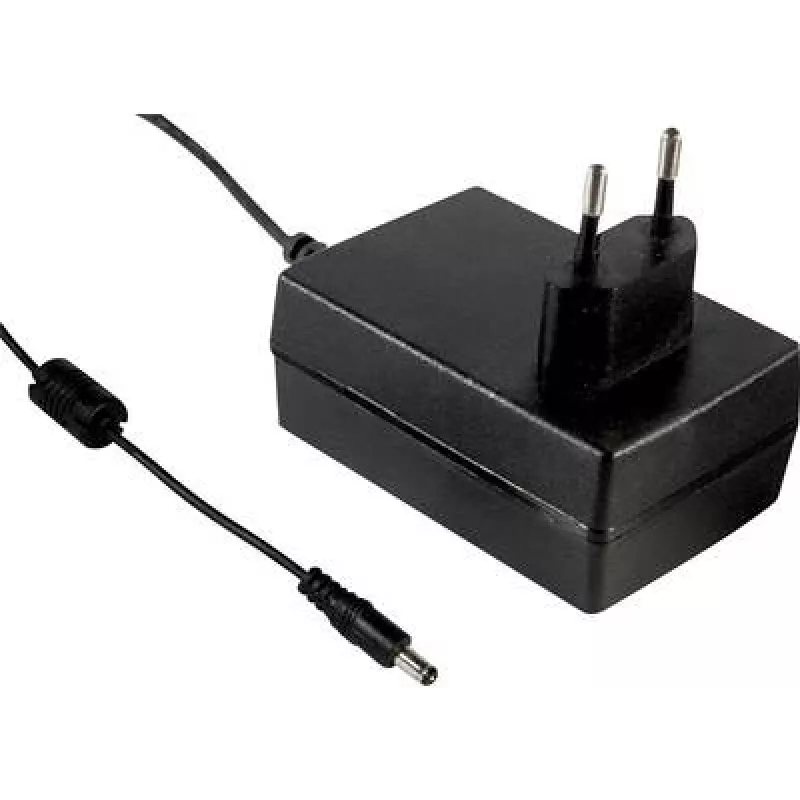

Fuente de alimentación MEAN WELL GSM18E09-P1J 18W 9V 80-264V

The MEAN WELL GSM18E09-P1J is an 18W AC-DC medical wall-mount single-output adapter delivering 9V DC at 2A from an 80–264V AC input. It features a Euro two-pin plug and meets medical safety isolation of 2xMOPP (EN 60601), making it suitable for use where medical-grade power isolation is required. The adapter is compact (54 mm × 79 mm × 33 mm) and RoHS compliant.

Advantages

The adapter provides a stable 9V DC output at up to 2A with universal AC input (80–264V), offers medical-grade isolation (2xMOPP) certified to EN 60601, and has a compact wall-mount form factor with a Euro 2-pin plug for easy installation. RoHS compliance ensures reduced environmental impact.

Suitable for

• Medical devices requiring isolated 9V DC power
• Clinical equipment and bedside instruments
• Electronics and instruments needing a compact wall-mount adapter

Key specifications

• Brand: mean well
• Model: GSM18E09-P1J
• Output: 9 V DC, 2 A
• Output power: 18 W
• Input voltage: 80–264 V AC
• Plug type: Euro 2-pin
• Safety: EN 60601, 2xMOPP
• Dimensions: 54 × 79 × 33 mm
• RoHS compliant
• MPN: GSM18E09-P1J
• EAN: 4021087037082

How to use

Plug the adapter into a compatible Euro 2-pin AC mains socket and connect the DC output to the device requiring 9V DC. Verify the device input rating matches 9V and does not exceed 2A. Ensure the adapter is used in a dry, ventilated location and that connections are secure before powering the device.

Recommendations

Use only with equipment rated for a 9V DC input and maximum 2A draw. For medical applications, follow applicable installation and grounding procedures and consult device-specific instructions. Avoid covering the adapter and keep it away from heat sources to maintain safe operating temperature.
