Fuente de alimentación MEAN WELL GSM18E12-P1J 18W 12V 80-264V

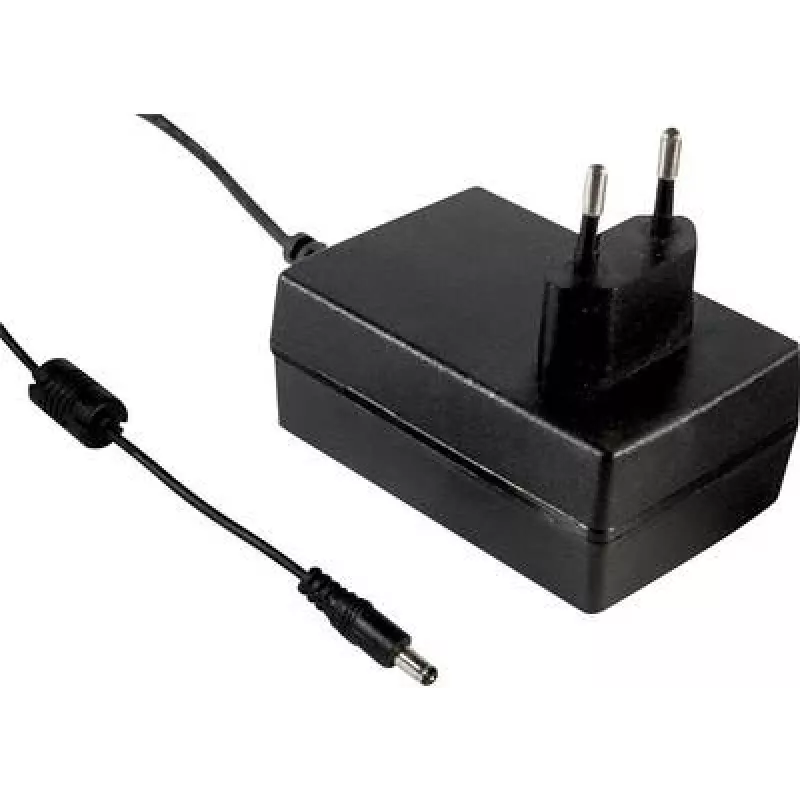

The MEAN WELL GSM18E12-P1J is a compact medical-grade AC-DC wall-mount single-output adapter providing 12 V DC at 1.5 A (18 W). It accepts a wide input voltage range of 80–264 V AC and features a Euro 2-pin plug. The adapter meets EN60601 medical safety requirements with 2xMOPP isolation and is RoHS compliant, making it suitable for equipment that requires a stable, medically approved low-voltage supply.

Advantages

This adapter combines a wide input voltage range (80–264 V AC) with a fixed 12 V / 1.5 A output, delivering up to 18 W of regulated DC power in a compact enclosure (54 × 79 × 33 mm). EN60601 compliance and 2xMOPP isolation provide medical-grade safety for connected devices, and RoHS certification confirms adherence to environmental standards. The integrated Euro 2-pin plug simplifies wall-mount installation.

Suitable for

• Medical and clinical devices requiring EN60601-compliant DC power
• Compact desktop or wall-mounted electronics needing 12 V / 1.5 A supply
• Replacement or spare power adapter for compatible equipment with Euro 2-pin mains

Key specifications

• Model: MEAN WELL GSM18E12-P1J
• Output: 12 V DC, 1.5 A (18 W)
• Input: 80–264 V AC
• Plug type: Euro 2-pin
• Medical safety: EN60601, 2xMOPP
• RoHS: Yes
• Dimensions: 54 mm (W) × 79 mm (D) × 33 mm (H)
• Brand: mean well
• MPN: GSM18E12-P1J
• EAN: 4021087037075

How to use

Insert the Euro 2-pin plug into a compatible mains outlet within the specified input range (80–264 V AC). Connect the adapter's DC output to the device requiring 12 V DC, ensuring correct polarity and secure connector fit. Verify that the connected device's power rating does not exceed 1.5 A. Use the adapter in a well-ventilated area and avoid obstructing airflow around the unit.

Recommendations

Use this adapter only with equipment designed for a 12 V DC, 1.5 A supply and with Euro 2-pin mains connections. For medical applications, follow the device manufacturer's guidance and applicable safety standards when installing or servicing powered equipment.
