Fuente de alimentación MEAN WELL GST40A24-P1J

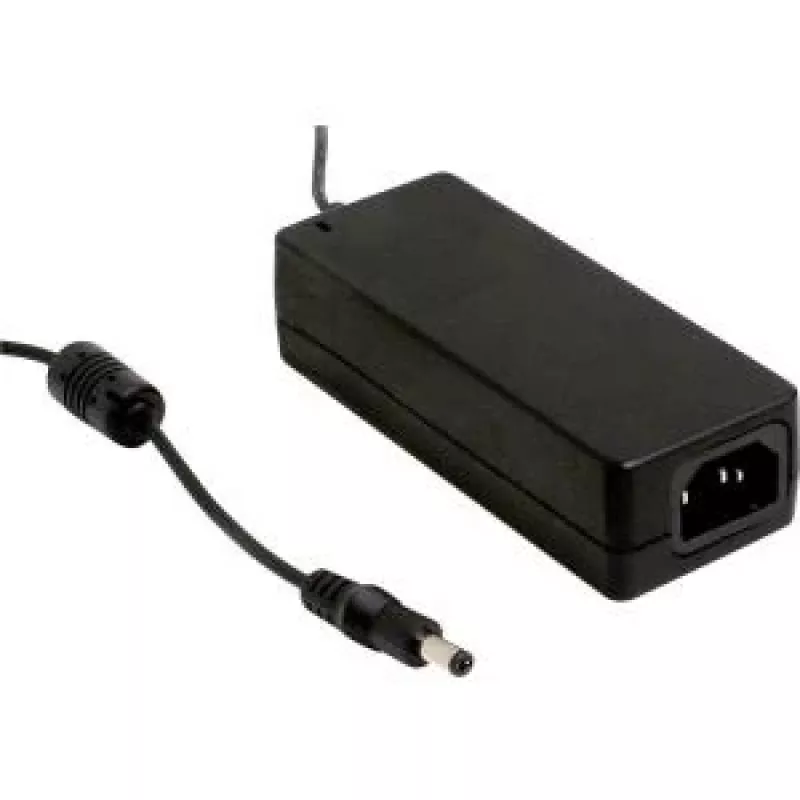

The MEAN WELL GST40A24-P1J is an AC-DC industrial desktop adapter that provides a stable 24V DC output at 1.67A (40W). Designed for use with a wide input voltage range of 90–264V AC and featuring a 3‑pole IEC320‑C14 AC inlet, this compact adapter measures approximately 50 mm (W) x 125 mm (D) and weighs 280 g. The unit is RoHS compliant and intended for integration into equipment and systems that require a reliable 24V power source.

Advantages

The adapter delivers a regulated 24V output with a 40W power rating in a compact desktop form factor, simplifying installation in industrial and commercial environments. Its wide AC input range supports international mains voltages without additional converters, and the standard IEC320‑C14 inlet enables straightforward connection to common power cords. Compliance with RoHS ensures reduced environmental impact.

Suitable for

• Industrial control equipment and automation modules
• Embedded systems and single-board computers requiring 24V
• Small machinery, instrumentation, and measurement devices
• Powering network appliances and peripheral devices

Key specifications

• Model: MEAN WELL GST40A24-P1J
• Output: 24V DC, 1.67A (40W)
• Input voltage range: 90–264V AC
• AC inlet: 3‑pole IEC320‑C14
• Dimensions: 50 mm (W) × 125 mm (D)
• Weight: 280 g
• Compliance: RoHS
• Brand: mean well
• MPN: GST40A24-P1J
• EAN: 4021087028516

How to use

Connect a compatible mains power cord to the IEC320‑C14 inlet and plug it into a suitable AC outlet within the specified 90–264V range. Connect the 24V DC output to the device requiring power, observing correct polarity. Ensure the adapter is placed on a stable, ventilated surface and that load current does not exceed 1.67A. Allow adequate clearance around the adapter for heat dissipation during continuous operation.

Recommendations

For reliable long‑term operation, avoid exposing the adapter to excessive dust, liquids, or temperatures outside the manufacturer's specified operating range. Verify connected devices draw no more than the rated 1.67A and use appropriate fusing or circuit protection where required.
