Fuente de alimentación MEAN WELL GST90A15-P1M

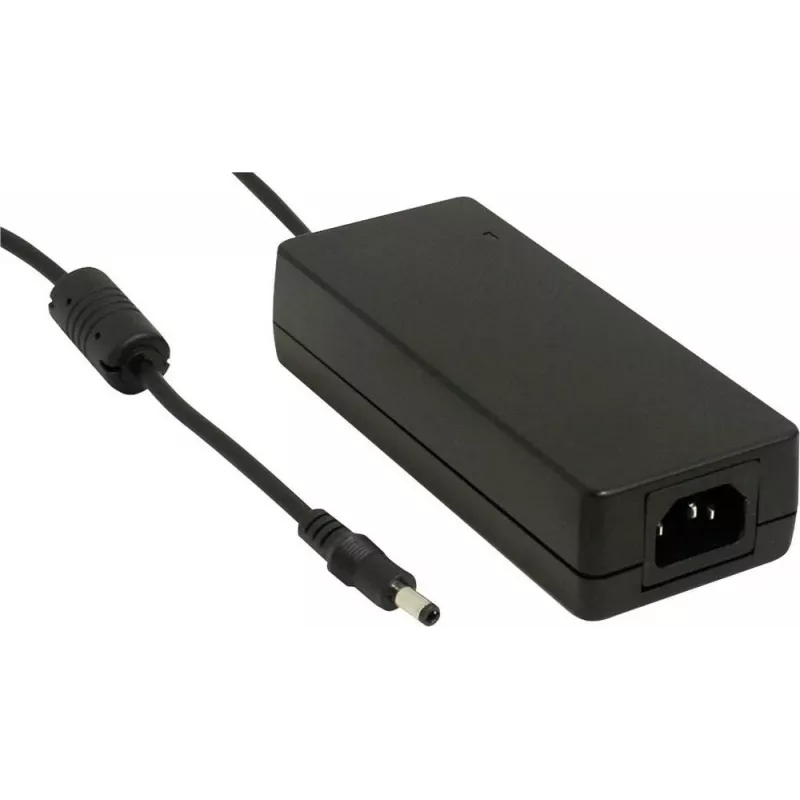

The MEAN WELL GST90A15-P1M is an AC-DC industrial desktop adapter with active PFC, designed for stable 15V DC output at up to 6A (90W). It accepts a wide input range of 90–264V via a 3-pin IEC320-C14 socket, meets RoHS requirements and comes with a P1M tuning fork output plug (outer diameter 5.5 mm, inner diameter 2.5 mm). The adapter has compact dimensions (60 × 145 × 32 mm) and a 1 000 ±50 mm cable length, suitable for equipment and installations that require a reliable 15V, 6A supply.

Advantages

The adapter provides universal AC input (90–264V) with active power factor correction for improved efficiency and reduced mains distortion. Its 15V/6A output delivers 90W of continuous power in a compact desktop housing, and the P1M tuning fork plug ensures compatibility with devices requiring a 5.5 × 2.5 mm barrel connector. Compliance with RoHS supports safer environmental handling.

Suitable for

• Desktop electronics and peripherals that require 15V DC power
• Industrial equipment and control units operating at up to 6A
• Bulk installations and projects where multiple adapters are deployed

Key specifications

• Model: MEAN WELL GST90A15-P1M
• Brand: mean well
• Input: 90–264V AC via IEC320-C14 (3-pin)
• Output: 15V DC, 6A (90W)
• Output connector: P1M tuning fork plug, OD 5.5 mm / ID 2.5 mm
• Cable length: 1000 ±50 mm
• Dimensions: 60 × 145 × 32 mm (W × D × H)
• RoHS compliant
• MPN: GST90A15-P1M; EAN: 4021087028400

How to use

Connect the adapter to the mains using a compatible IEC320-C13 power cord plugged into the IEC320-C14 inlet. Plug the P1M tuning fork output into the device’s 5.5 × 2.5 mm DC jack, taking care to align the connector and ensure a secure fit. Verify that the target device accepts 15V DC and up to 6A before powering on. Place the adapter on a flat, ventilated surface and avoid covering it to ensure adequate cooling during operation.

Recommendations

Use the adapter in environments within the manufacturer’s specified temperature and humidity range, and avoid exposure to moisture or conductive contaminants. For installations with multiple units, ensure adequate spacing for ventilation and use correctly rated mains cords and fusing to protect connected equipment.
