Fuente de alimentación MEAN WELL GST90A24-P1M 90W

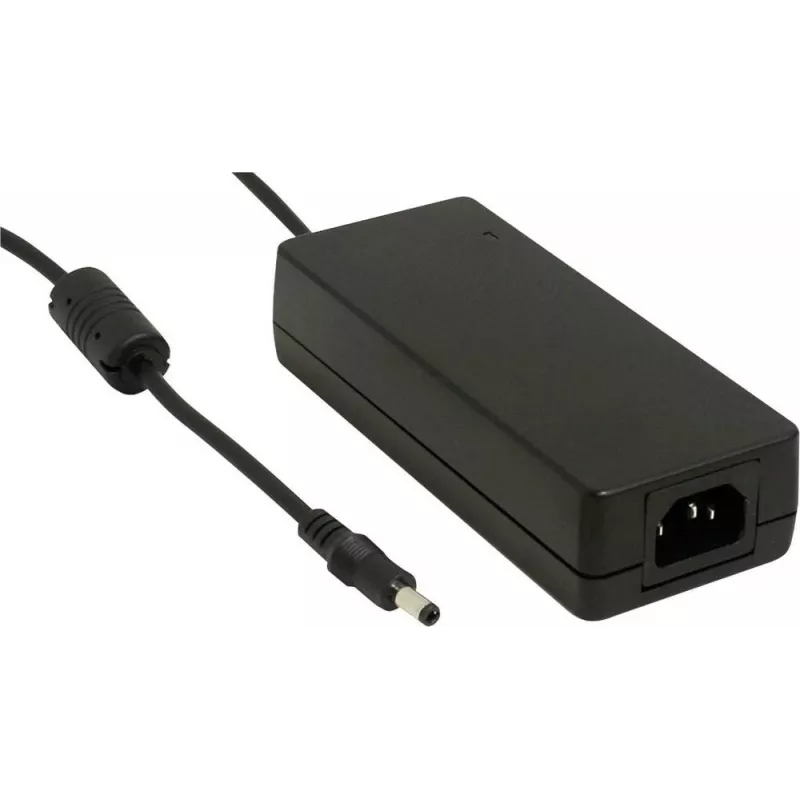

MEAN WELL GST90A24-P1M is an AC-DC industrial desktop adapter that delivers 24 VDC at 3.75 A (90 W). It accepts universal AC input voltage from 90–264 VAC and features a 3-pin IEC320-C14 input socket and a P1M tuning fork output plug with outer diameter 5.5 mm and inner diameter 2.5 mm. The adapter is compact (60 × 145 × 32 mm), includes a 1.2 m cable (±50 mm) and meets RoHS requirements.

Advantages

The GST90A24-P1M provides stable 24 V output with built-in PFC for improved power factor and reduced interference. Its standardized IEC320-C14 inlet simplifies installation in desktop and rack environments, while the P1M plug ensures compatibility with equipment using a 5.5 × 2.5 mm barrel connector. Its compact metal/plastic enclosure and broad input range make it suitable for varied industrial and commercial settings.

Suitable for

• Desktop electronic equipment requiring 24 VDC power
• Industrial control modules and instrumentation
• Networking and communication devices with 5.5 × 2.5 mm barrel input
• Bulk deployments and OEM installations

Key specifications

• Model: MEAN WELL GST90A24-P1M
• Rated output: 24 VDC, 3.75 A (90 W)
• Input: 90–264 VAC, IEC320-C14 socket
• Output connector: P1M tuning fork plug, OD 5.5 mm, ID 2.5 mm
• Cable length: 1200 ± 50 mm
• Dimensions: 60 × 145 × 32 mm
• Compliance: RoHS

How to use

Connect the adapter to a grounded AC outlet using the IEC320-C14 inlet on the unit. Plug the P1M 5.5 × 2.5 mm barrel plug into the device's DC input jack, observing correct polarity. Ensure the connected device accepts 24 VDC and does not draw more than 3.75 A. Allow adequate ventilation around the adapter during operation.

Recommendations

Use the adapter within its specified input and output ranges, avoid exposure to moisture and extreme temperatures, and verify polarity before connection. For installations with sensitive equipment, place the adapter away from radio-frequency sources and follow local electrical safety regulations.
