Fuente de alimentación MEAN WELL RSD-60L-24 60W 24V entrada 18-72V

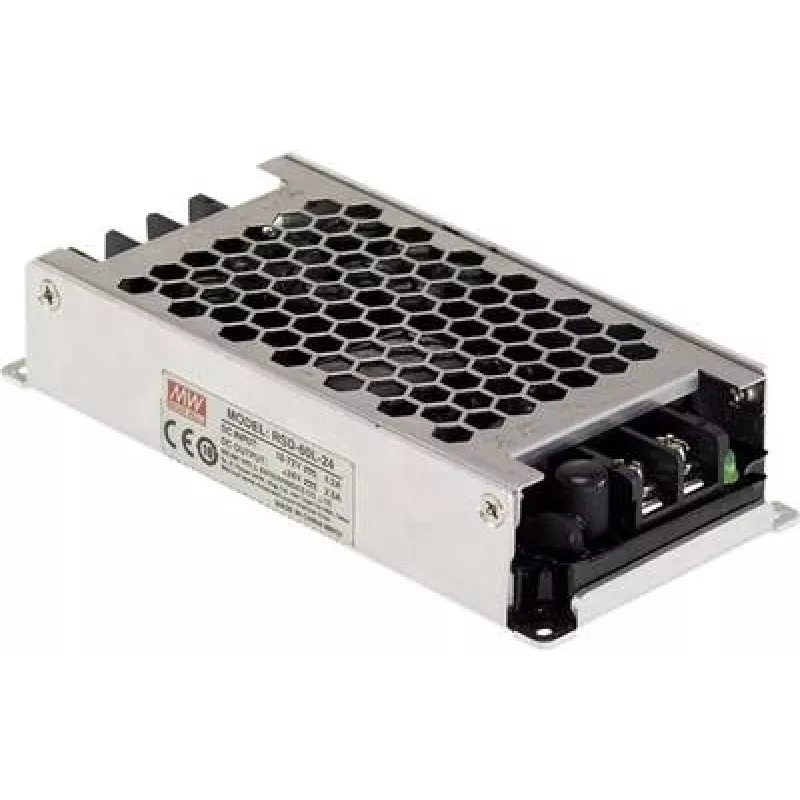

The MEAN WELL RSD-60L-24 is a 60W enclosed DC-DC converter designed for use with input voltages from 18 to 72 VDC and providing a regulated 24 VDC output at up to 2.5 A. The unit meets railway standard EN50155, offers 4000 VDC input-to-output isolation, and is RoHS compliant. Its compact housing measures approximately 60 mm (W) x 128 mm (D) x 25 mm (H), suitable for space-constrained installations.

Advantages

The converter delivers a stable 24 V output at 2.5 A from a wide 18–72 V input range, supporting systems with varying supply voltages. EN50155 compliance ensures suitability for railway and transport applications, while 4000 VDC isolation improves safety and protects downstream equipment. The compact enclosed design simplifies integration into control cabinets or vehicle installations and RoHS compliance meets environmental regulatory requirements.

Suitable for

• On-board railway and mass-transit power systems
• Industrial control cabinets and automation equipment
• Telecommunications and signal equipment requiring 24 V supply
• Battery-backed systems and DC distribution with wide input sources

Key specifications

• Model: MEAN WELL RSD-60L-24 (MPN: RSD-60L-24)
• Output: 24 VDC, 2.5 A (60 W)
• Input voltage range: 18–72 VDC
• Isolation: 4000 VDC input-to-output
• Standards: EN50155 (railway)
• Compliance: RoHS
• Dimensions (W×D×H): 60 × 128 × 25 mm
• EAN: 4021087042055

How to use

Mount the enclosed converter in a suitable location inside the equipment or vehicle using the recommended secure fixing method for the housing. Connect the DC input (18–72 V) to the designated input terminals observing correct polarity and any vehicle grounding requirements. Connect the 24 V output to your load, ensuring the total current draw does not exceed 2.5 A. Verify isolation and protective measures are in place before powering the system. Follow any additional installation notes from the MEAN WELL datasheet regarding ventilation and temperature ranges.

Recommendations

Install the unit with adequate ventilation and away from heat sources. Use appropriate fusing on the input and output lines, confirm polarity during wiring, and consult the MEAN WELL datasheet for derating curves and EN50155-related installation guidance to ensure reliable operation in railway environments.
