Fuente de alimentación MEAN WELL WDR-60-24

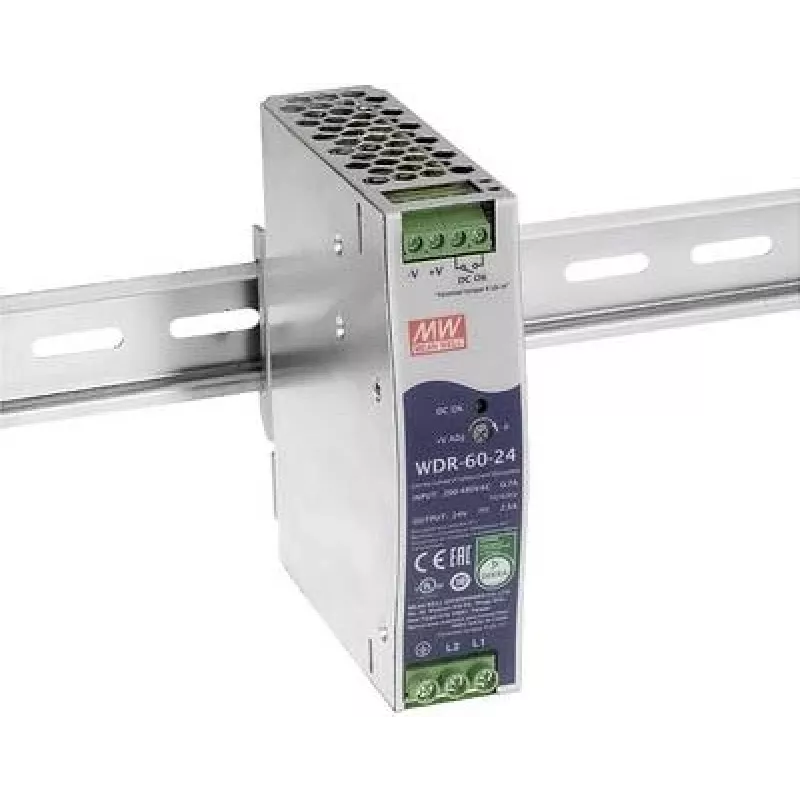

The MEAN WELL WDR-60-24 is an AC-DC industrial DIN-rail power supply that delivers 24 V DC at up to 2.5 A (60 W). Designed for use on single- and three-phase mains, it accepts an ultra-wide input voltage range of 180–550 V AC. The unit is housed in a metal case, complies with RoHS, and features a compact DIN-rail form factor (32 mm width, 102 mm depth, 125.2 mm height).

Advantages

The WDR-60-24 offers a wide input voltage range suitable for unstable or mixed mains supplies, stable 24 V DC output up to 2.5 A, and a metal enclosure that supports industrial installation on DIN rails. Its compact dimensions allow space-saving mounting in control cabinets. RoHS compliance ensures the unit meets common environmental restrictions.

Suitable for

• Industrial control cabinets and automation systems
• Equipment requiring a stable 24 V DC supply (sensors, relays, PLCs)
• Single- and three-phase mains environments, including places with wide voltage variations

Key specifications

• Model: MEAN WELL WDR-60-24 (MPN: WDR-60-24)
• Output: 24 V DC, 2.5 A (60 W)
• Input voltage: 180–550 V AC (single- and three-phase compatible)
• Case: metal
• Mounting: DIN rail
• Dimensions: 32 mm (W) × 102 mm (D) × 125.2 mm (H)
• Certifications: RoHS compliant
• EAN: 4021087057066

How to use

Mount the WDR-60-24 on a standard DIN rail inside a control cabinet. Connect the AC supply (single- or three-phase) to the input terminals following local electrical codes and safety practices. Connect the 24 V DC output to the load, ensuring the total current draw does not exceed 2.5 A. Verify correct polarity and secure all terminal connections before powering on.

Recommendations

Install the power supply in a well-ventilated area with ambient temperature within the manufacturer's specified range, provide appropriate overcurrent protection on the AC side, and avoid exceeding the rated output current to ensure reliable operation and longevity.
