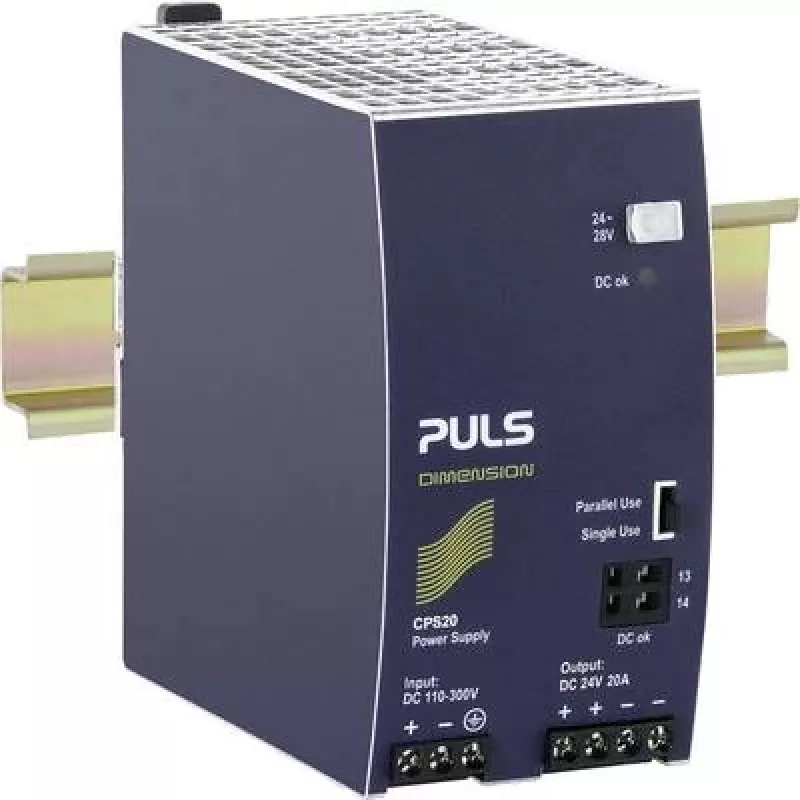

Fuente de alimentación para carril DIN PULS CPS20.241-D1 24V DC 20A 480W

DIN rail power supply unit delivering 24 V DC with a maximum current of 20 A and 480 W output power. The CPS20.241-D1 from PULS DIMENSION series offers high efficiency up to 95.2% and convection cooling for reliable operation in industrial control cabinets.

Advantages

High efficiency reduces energy consumption and heat generation. The unit supports parallel operation for redundancy or increased power. Wide AC input range of 100–240 V AC and DC input of 110–150 V DC provide flexibility in various installations.

Suitable for

• Industrial automation systems
• Machine control panels
• Process control equipment
• Building automation

Key specifications

• Output: 24 V DC, 20 A, 480 W
• Input: 100–240 V AC (single phase), 110–150 V DC
• Efficiency: up to 95.2%
• Mounting: DIN rail TS35
• Operating temperature: -25°C to +70°C
• Protection: IP20
• Cooling: convection
• Protections: overload (constant current), short-circuit, overvoltage
• Parallel operation: yes
• Input frequency: 50–60 Hz
• Output ripple & noise: < 50 mVpp
• Terminals: screw type
• Certifications: UL 61010-1, UL 61010-2-201, UL 508, IEC/EN 61010-1, IEC/EN 61010-2-201, SEMI F47, ATEX, IECEx

Recommendations

For reliable 24 V DC power in industrial environments, the CPS20.241-D1 offers high efficiency and robust protection features. Verify input voltage and mounting space before installation.
