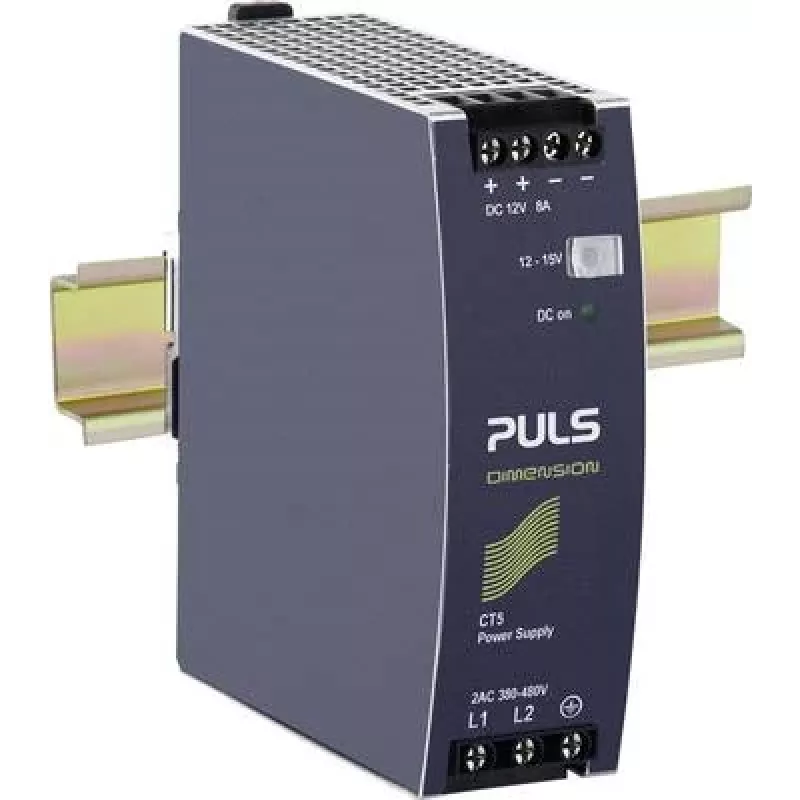

Fuente de alimentación para carril DIN PULS DIMENSION CT5.121 12V/DC 8A 96W 1 salida

Delivers 96 W of power at 12 V/DC with an 8 A output current, achieving over 90% efficiency. The PULS DIMENSION CT5.121 is a DIN rail power supply built for industrial control systems.

Overview

The CT5.121 converts a wide AC input range of 100–240 V AC (or 110–150 V DC) into a regulated 12 V DC output. Its compact metal housing mounts directly onto standard DIN rails (TS35/7.5 or TS35/15) using screw terminals for secure wiring.

What stands out

• High efficiency above 90% reduces energy waste and heat generation.
• Output voltage adjustable from 12 to 15 V for flexible integration.
• Protection against overload, short circuit, overvoltage, and overtemperature ensures reliable operation.
• Wide operating temperature range from -25°C to +70°C suits harsh environments.
• Low ripple and noise below 50 mVpp for clean power delivery.

Technical details

• Output: 12 V/DC, 8 A, 96 W
• Input: 100–240 V AC, 110–150 V DC, 50–60 Hz
• Hold-up time: >20 ms at 115/230 V AC
• Connection: Screw terminals
• Mounting: DIN rail TS35/7.5 or TS35/15

Our verdict

The CT5.121 combines high efficiency, robust protection, and a wide temperature range in a compact DIN rail format, making it a dependable choice for demanding industrial applications.
