Fuente de alimentación PoE MID-Span ROLINE 19 pulgadas 21.13.1181

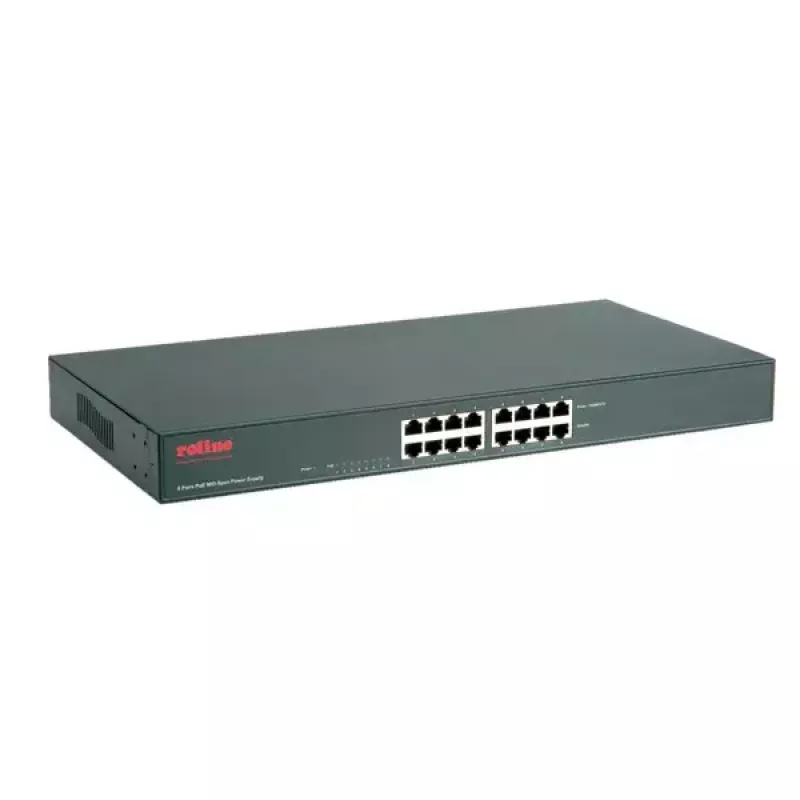

The ROLINE 19" PoE MID-Span Power Supply (model 21.13.1181) is an 8-way PoE injector that delivers IEEE 802.3af compliant power and data over standard twisted-pair Ethernet cabling. It provides eight Data-in ports and eight Data+Power-out ports, enabling centralised delivery of power to devices such as access points, IP phones, network cameras and workgroup switches while fitting into a 19" rack.

Advantages

This mid-span power supply supports IEEE 802.3af on all eight ports with a maximum of 15.4 W per port and a total PoE budget of 110 W. The unit includes status LEDs for port monitoring, an internal power supply, active cooling via an integrated fan and a metal housing with a rack-mount kit for 19" installation. Compact dimensions and a weight of 2.7 kg make it suitable for standard network racks.

Suitable for

• Powering IEEE 802.3af-compatible access points
• Supplying network cameras (PoE IP cameras)
• Feeding power to IP telephones
• Providing power to unmanaged workgroup switches and other PoE endpoints

Key specifications

• Data-in Ports: 8 × 10/100Base-TX
• Data + Power-out Ports: 8 × 10/100Base-TX
• Standards: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3x Flow Control, IEEE 802.3af (PoE)
• Max. power output per port: 48 V DC / 15.4 W
• PoE-capable ports: Port 1–8, up to 15.4 W per port
• PoE power budget: 110 W
• Max. power consumption (without PoE): 122 W (12 W)
• Indicators: Status LEDs
• Chassis: Metal, 19" rack-mountable (rack-mount kit included)
• Cooling: Active, integrated fan
• Power supply: Internal
• Dimensions (W×D×H): 440 × 220 × 44 mm
• Weight: 2.7 kg

How to use

Install the unit in a standard 19" rack using the included rack-mount kit, connect the device to mains power with the supplied power cord and link network switches or a switch uplink to the Data-in ports. Connect PoE-capable devices to the Data+Power-out ports using standard Ethernet cables (Cat5e or better recommended). Observe the status LEDs to verify power delivery and link status for each port.

Recommendations

For reliable operation, ensure the combined power requirements of connected PoE devices do not exceed the 110 W PoE budget. Use appropriate cabling (Cat5e or higher) and allow ventilation space for the integrated fan. Verify device compatibility with IEEE 802.3af and distribute high-power endpoints across ports to avoid overloading a single area of the unit.
