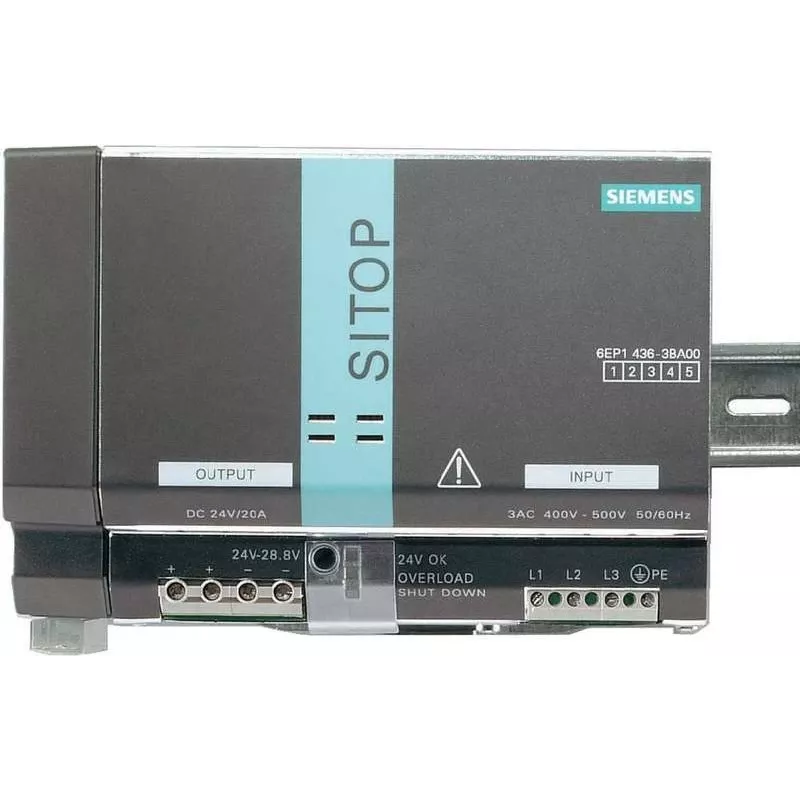

Fuente de alimentación Siemens Sitop 3 6EP1436-3BA00 AC 400–500 V 480 W

The Siemens Sitop 3 power supply model 6EP1436-3BA00 delivers up to 480 W of output power from an AC input range of 400–500 V. Designed for industrial environments, this DIN-rail mountable unit converts high-voltage AC mains to a stable DC output suitable for control cabinets, automation systems and machinery. The design focuses on continuous operation under variable load conditions and includes protections and thermal management features to support reliability in demanding applications.

Advantages

The Sitop 3 power supply provides consistent voltage regulation and high efficiency across its rated power range, reducing heat dissipation in confined cabinet spaces. Robust input handling tolerates industrial AC mains variations and the device incorporates protection against overload, short circuit and thermal stress to help maintain continuous operation. Compact mechanical dimensions and standard mounting allow straightforward integration into existing switchgear and control panels.

Suitable for

Key specifications

How to use

Install the power supply on a standard DIN rail inside the control cabinet, ensuring adequate ventilation and clearance from heat sources. Connect the AC mains within the 400–500 V range to the input terminals following local electrical codes and wiring practices. Connect the DC output to the load equipment, observing polarity and recommended cable sizes to minimize voltage drop. Verify correct output voltage before connecting sensitive control modules and perform initial commissioning with monitoring for temperature and load behavior.

Recommendations

For reliable long-term performance, maintain ambient temperatures within the device’s specified operating range, avoid excessive dust and moisture, and confirm that upstream supply protection and earthing are properly installed. Schedule periodic inspections for terminal torque and signs of overheating, and use appropriately sized fuses or circuit breakers on both input and output circuits where required by local standards.
