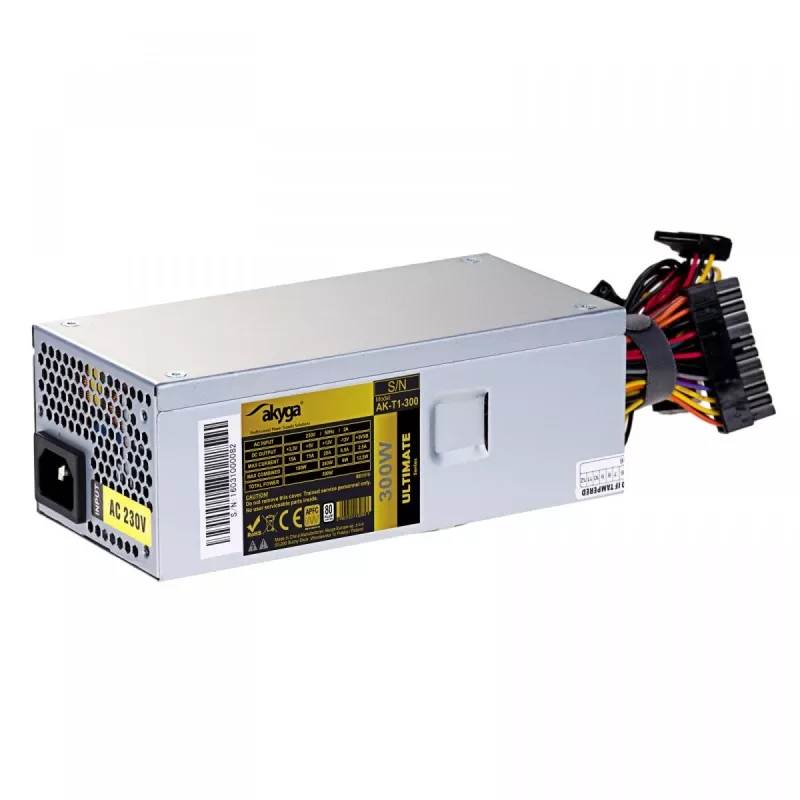

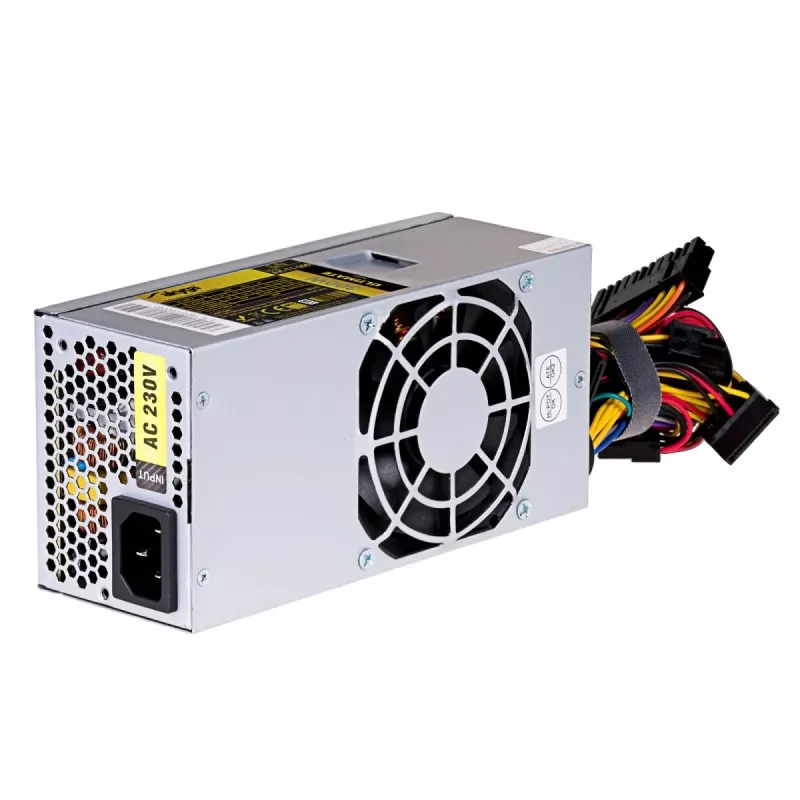

Fuente de alimentación TFX Akyga AK-T1-300 300 W, PFC activo, ventilador de 80 mm

The Akyga AK-T1-300 is a 300 W TFX power supply designed for mini and media PC systems. It features active PFC, an 8 cm fan, and a 24-pin motherboard connector.

Key features

• 300 W power output
• TFX form factor
• Active PFC
• 80 PLUS compatibility
• 8 cm fan with automatic speed control
• Protection: OVP, OCP, OPP, OTP, SCP, UVP
• Galvanized steel construction
• Grey colour

Specifications

• Form factor: TFX
• Power supply: 300 W
• PFC: Active
• Fan: 8 cm
• Dimensions: 175 x 85 x 65 mm
• Weight: 836.4 g
• Combined power (+3.3V): 100 W
• Combined power (+12V): 240 W
• Max output current (+3.3V): 15 A
• Max output current (+12V): 20 A
• Max output current (+5V): 15 A
• Modular: No

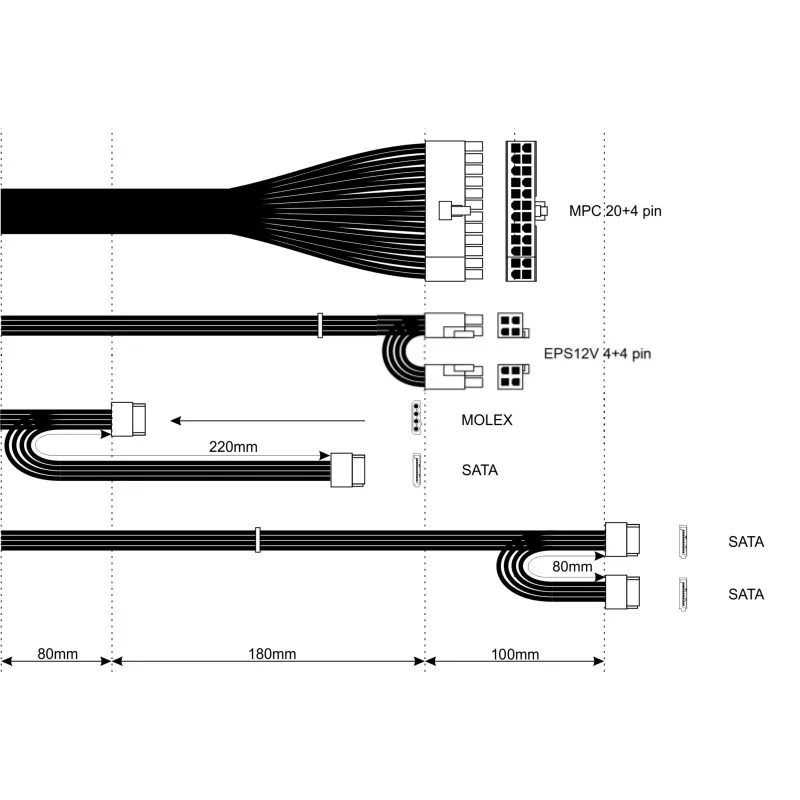

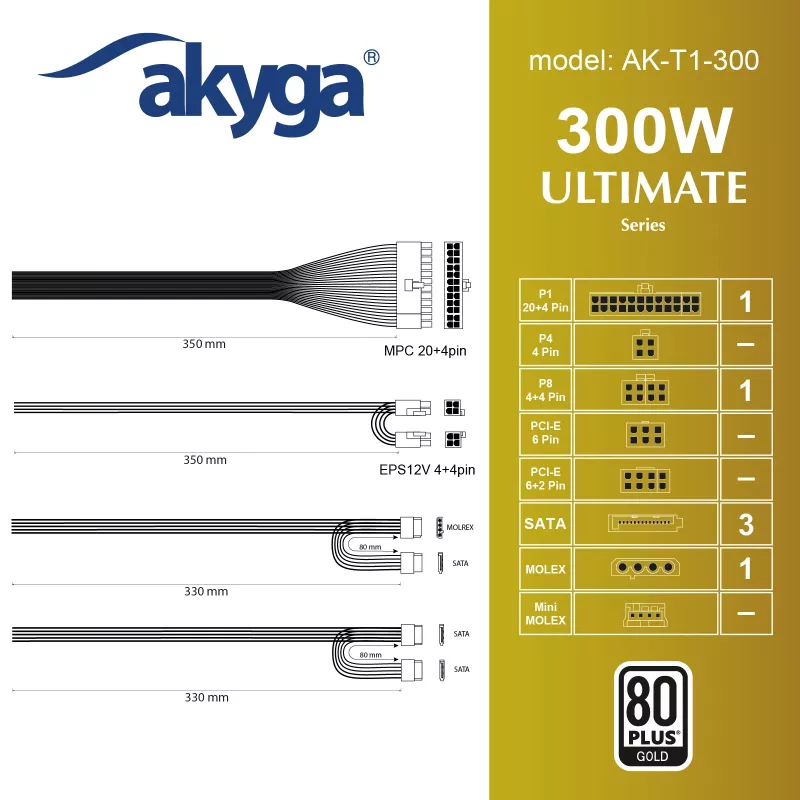

• MB power connector: 24 pin
• Number of power supply connector 4+4-pin 12V: 1
• MOLEX power connectors: 1
• SATA power connectors: 3
• 8-pin 12V power connectors: 0
• Number of power supply connectors PCI-E 6 +2 pin: 0
• Number of power connectors 12VHPWR: 0
• Floppy power connectors: 0
• Number of connectors PATA: 0
• Number of power supply connector 4-pin 12V: 0
• PCI-E 6-pin power connectors: 0
• PCI-E 8-pin power connectors: 0
• Number of power connectors PCI-E 16-pin Gen 5: 0
• Number of USB 10p connectors: 0
• Power protection features: Over voltage, Over current, Over power, Overheating, Short circuit, Under voltage
• Filters / protection: Surge
• Certificates 80+: 80 PLUS
• Power cord included: No
