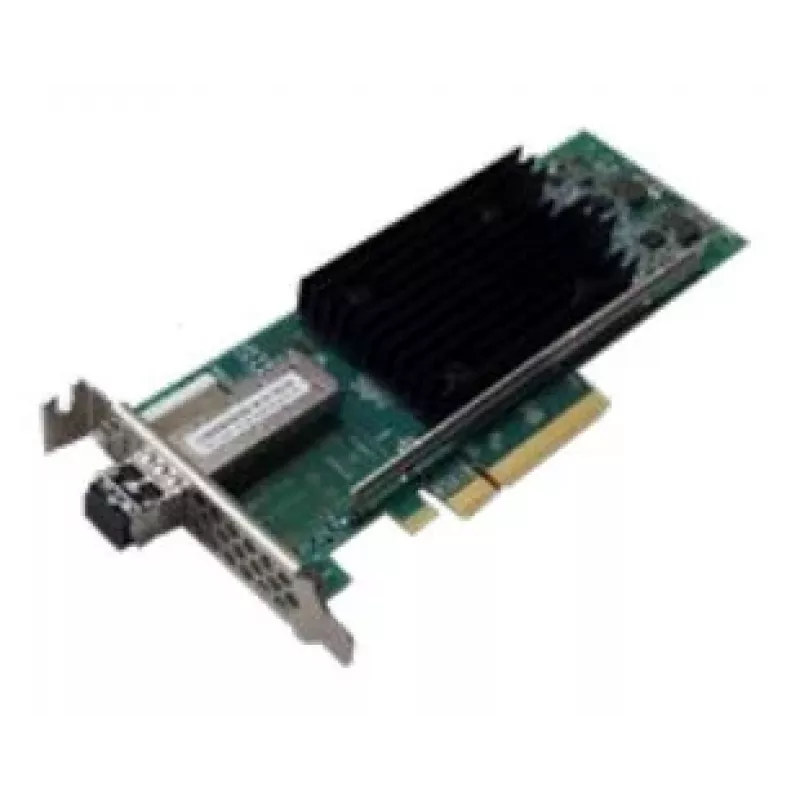

Fujitsu PFC EP QLE2772 2x 32Gb QLogic Fibre Channel HBA perfil bajo PCIe 3.0 x8 PY-FC412

The Fujitsu PFC EP QLE2772 is a high-performance Fibre Channel Host Bus Adapter (HBA) designed for enterprise data centers. Featuring the QLogic QLE2772 controller, it delivers dual 32 Gbps Fibre Channel ports with PCI Express 3.0 x8 interface, ensuring maximum throughput and low latency for demanding storage environments.

Advantages

With support for 32GFC speeds and backward compatibility to 16GFC and 8GFC, this HBA provides investment protection and seamless integration into existing SAN infrastructures. The included full-height and low-profile brackets offer flexible deployment options for various server form factors.

Suitable for

• Fujitsu PRIMERGY servers requiring high-speed Fibre Channel connectivity
• Enterprise storage area networks (SAN) with 32Gb, 16Gb, or 8Gb switches
• Virtualized environments leveraging NPIV and boot from SAN
• Applications needing high throughput and low latency, such as databases and virtualization

Key specifications

• Device Type: Fibre Channel Host Bus Adapter
• Controller Chipset: QLogic QLE2772
• Host Interface: PCI Express 3.0 x8
• Fibre Channel Ports: 2
• Data Rate: 32 Gbps per port (also supports 16GFC, 8GFC)
• Connector Type: SFP28 (LC optical transceivers not included)
• Form Factor: Low-Profile PCIe Card (includes full-height and low-profile brackets)
• Data Transfer Rate: Up to 3200 MB/s per port
• Supported Topologies: Point-to-Point, Arbitrated Loop, Switched Fabric
• Features: NPIV, Boot from SAN, Dynamic Load Balancing, F_Port and N_Port Virtualization, T10-DIF
• Power Consumption: Typically 10-15W
• Management Software: QLogic QConvergeConsole (QCC)

Recommendations

For optimal performance, pair this HBA with compatible 32Gb Fibre Channel switches and use high-quality SFP28 optical transceivers. Ensure your server has an available PCIe 3.0 x8 slot.
