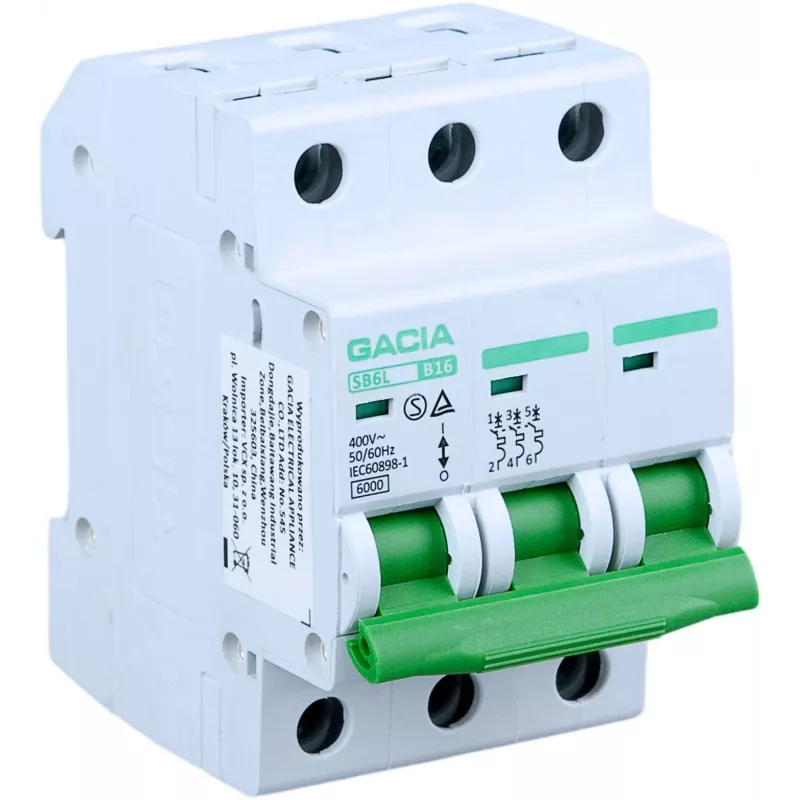

GACIA SB6L B 3P 6A Interruptor automático, 6kA, curva B, 3 polos, 6A

The GACIA SB6L B 3P 6A is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in residential, commercial, and industrial electrical installations. With a rated current of 6A and a B tripping curve, it provides fast response to short circuits and overloads, ensuring safety and equipment protection.

Advantages

This MCB offers excellent breaking capacity of 6kA, complying with IEC/EN 60898-1 standards. Its compact 3-pole design saves space on DIN rails, while screw terminals ensure secure and easy wiring. The device is built for long service life with high electrical and mechanical endurance.

Suitable for

• Lighting circuits
• Socket outlets
• Small appliance protection
• Distribution boards in residential and commercial buildings

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3-Pole
• Rated Current (In): 6 A
• Tripping Curve: B
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail (35mm)
• Standard Compliance: IEC/EN 60898-1
• Protection Degree: IP20 (Terminals)
• Electrical Endurance: ≥ 10,000 operations
• Mechanical Endurance: ≥ 20,000 operations
• Terminal Capacity (Rigid): 1-25 mm²
• Terminal Capacity (Flexible): 1-16 mm²
• Operating Temperature Range: -25°C to +55°C
• Pollution Degree: 2
• Energy Limiting Class: 3
• Connection Type: Screw Terminals

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This MCB is suitable for use in standard distribution boards and should be selected based on the load characteristics and cable sizing.
