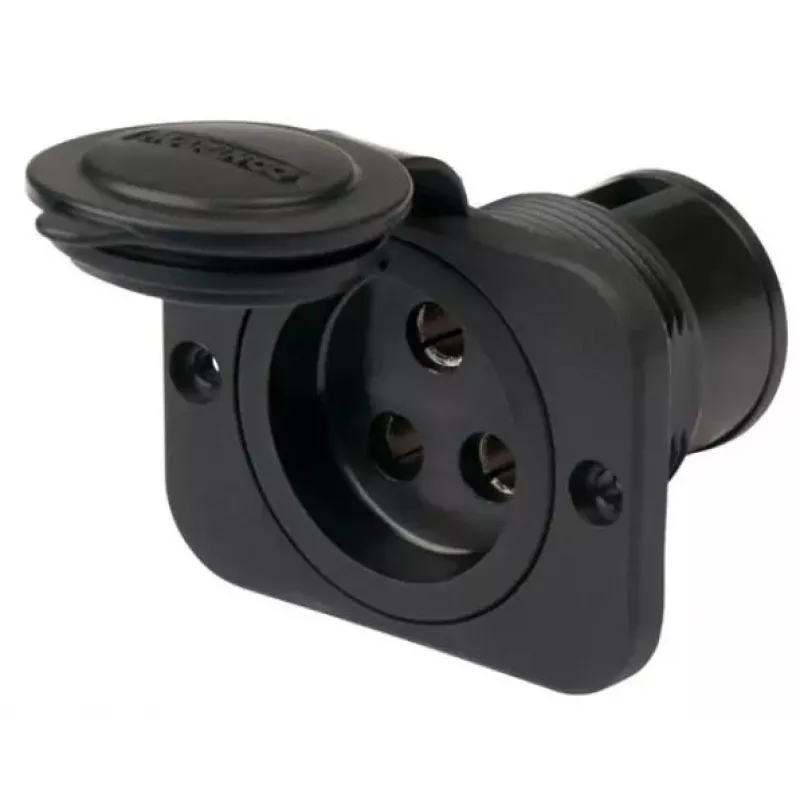

Garmin Force Power Receptacle Kit para motor de curricán (010-12832-42)

Anglers and boaters who rely on Garmin Force trolling motors need a power connection that can handle the demands of marine environments. This Garmin Force Power Receptacle Kit provides a secure, quick-disconnect interface between the motor and the boat's electrical system, ensuring reliable power delivery in fresh or saltwater conditions.

Key specifications

• Compatibility: Garmin Force Trolling Motor
• Voltage Rating: 24V and 36V DC systems
• Current Rating: Up to 60 Amps
• Connector Type: 2-pin high-current marine connector
• Material: Marine-grade, UV-resistant plastic housing with corrosion-resistant brass contacts
• Weather Resistance: IPX7 (submersible up to 1 meter for 30 minutes)
• Mounting Type: Panel mount
• Wire Gauge Compatibility: Accepts up to 6 AWG wire
• Connection Method: Screw-down terminals for secure wire attachment
• Included Components: Power receptacle, wiring harness, mounting hardware, dust cap

Why choose it

Built to withstand harsh marine environments, this power receptacle features UV-resistant housing and corrosion-resistant contacts for long-lasting performance even with constant exposure to water and salt. The polarity-protected design adds an extra layer of safety, while the simple DIY installation means you can get setup quickly without professional help.

Ideal use cases

• Powering Garmin Force trolling motors on boats and watercraft
• Replacing worn or damaged power receptacles on existing setups
• New builds or retrofits for reliable motor power connections

Good to know

Operating temperature range: -15°C to 70°C (5°F to 158°F). The kit includes a dust cap to protect the receptacle when not in use. Polarity protected design prevents reverse connection damage.
