Gateway de red móvil TP-LINK OMADA ER701-5G-Outdoor, 5G/4G/3G, WLAN 2,4 GHz, Ethernet 2,5 Gbps, montaje en mástil/pared/ventana

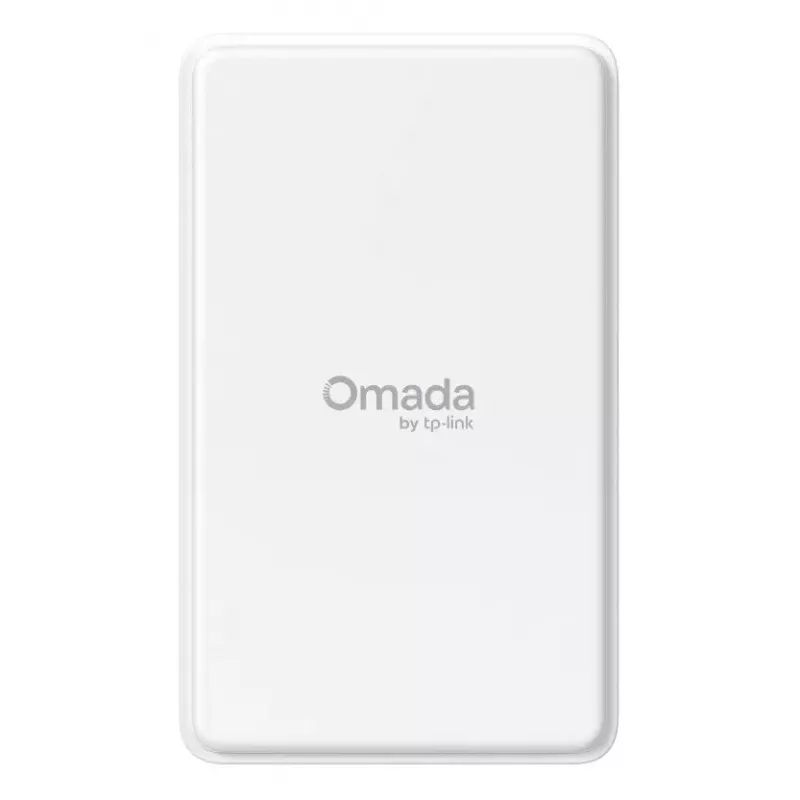

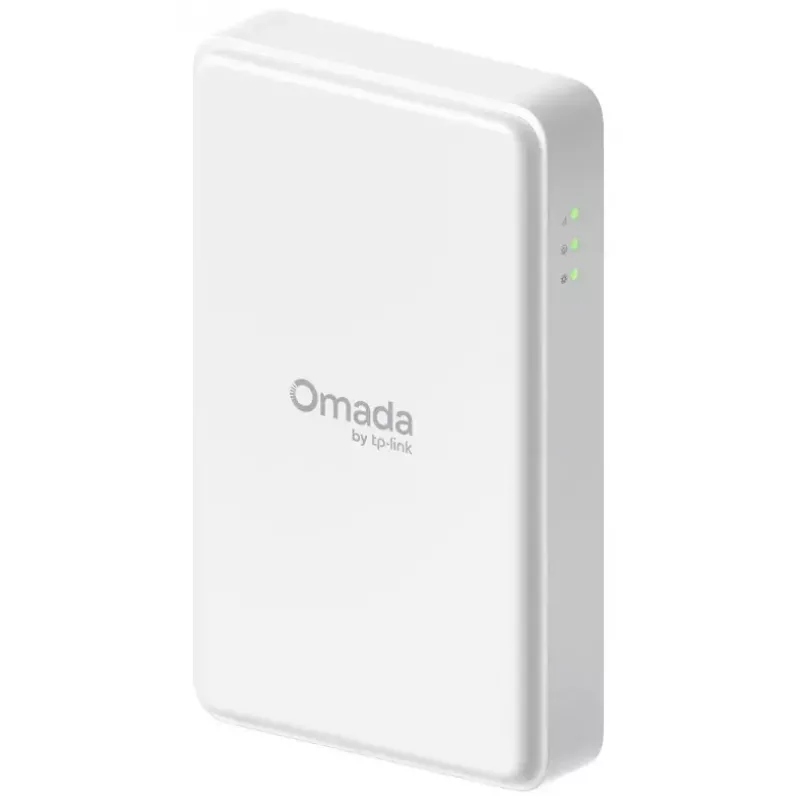

The TP-LINK OMADA ER701-5G-Outdoor is an outdoor cellular network gateway that delivers 5G/4G/3G connectivity with single-band 2.4 GHz Wi‑Fi and a 2.5 Gbps Ethernet interface. Designed for pole, wall or window mounting, it provides high-speed cellular access or backup WAN for locations where wired broadband is impractical. The device supports WCDMA, LTE-TDD and LTE-FDD cellular standards, WPA/WPA2-Personal security, and centralized management via the Omada platform or local app-based setup.

Advantages

The ER701-5G-Outdoor combines outdoor-hardened design and high-speed cellular performance: multi-gigabit Ethernet throughput, internal high-gain antennas and app-guided antenna alignment for easier installation. Dual SIM capability enables automatic failover for uninterrupted connectivity. Built to withstand outdoor conditions, the unit is dust- and water-resistant and intended for long-term external deployments. Management through the Omada app or centralized cloud simplifies configuration and monitoring.

Suitable for

• Remote sites and small branch offices requiring cellular primary or backup Internet
• Temporary deployments such as events, field offices, and pop-up locations
• Hard-to-wire facilities where outdoor mounting provides better reception

Key specifications

• Cellular connectivity: 5G/4G/3G compatible
• Peak 5G download and upload capabilities as specified by manufacturer (5G NR performance)
• 2.4 GHz single-band Wi‑Fi for local wireless access
• Ethernet: 1× 2.5 Gbps Ethernet LAN (PoE input supported via included adapter)
• Cellular standards supported: WCDMA, LTE-TDD, LTE-FDD
• Antenna configuration: multiple internal cellular antennas and internal Wi‑Fi antenna

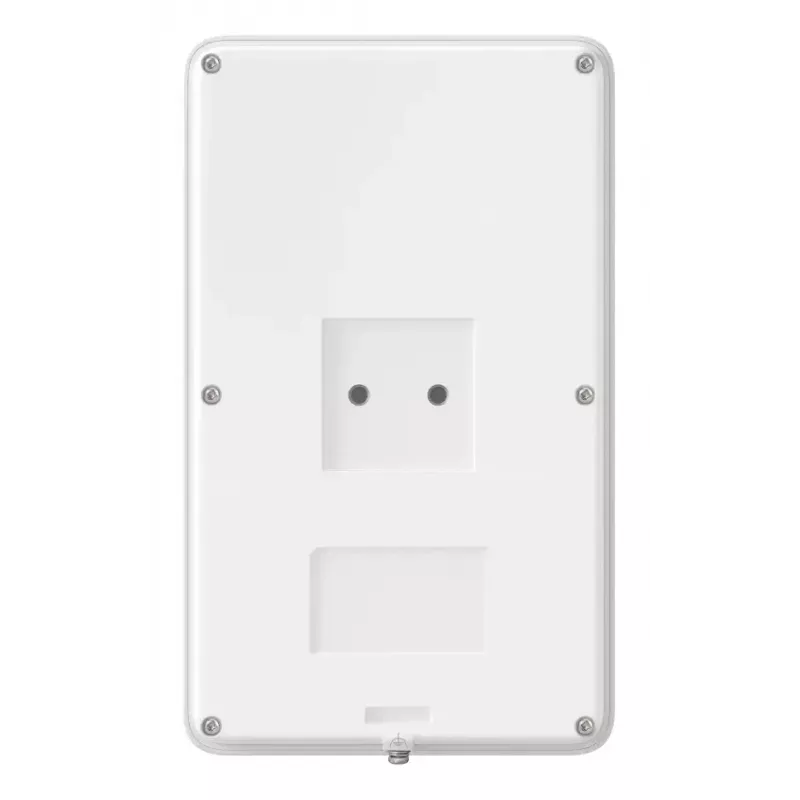

• Mounting options: pole, wall or window mount
• Security: WPA/WPA2-Personal for wireless access
• Weather protection: sealed outdoor enclosure (weatherproof rating indicated by manufacturer)

How to use

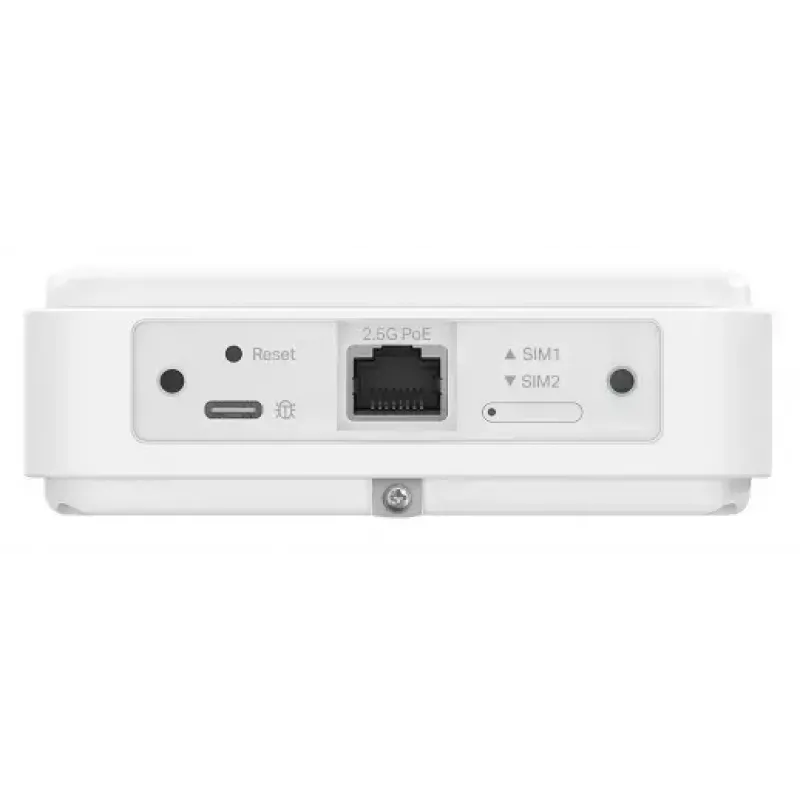

Install the ER701-5G-Outdoor on a suitable pole, wall or window location where cellular signal is available. Insert SIM cards into the nano SIM slots and connect power via the supplied PoE adapter to the 2.5 Gbps Ethernet port. Use the Omada app to perform app-guided antenna alignment and follow on-screen steps to configure WAN mode, SSID and security settings. For deployment as backup WAN, configure failover settings and priority rules through the management interface.

Recommendations

Place the gateway at a location with clear line-of-sight to the nearest cellular tower when possible and use the Omada app’s signal indicators during alignment. Use the included PoE adapter and recommended mounting hardware to maintain weatherproof integrity, and enable dual SIM failover if uninterrupted connectivity is required.
