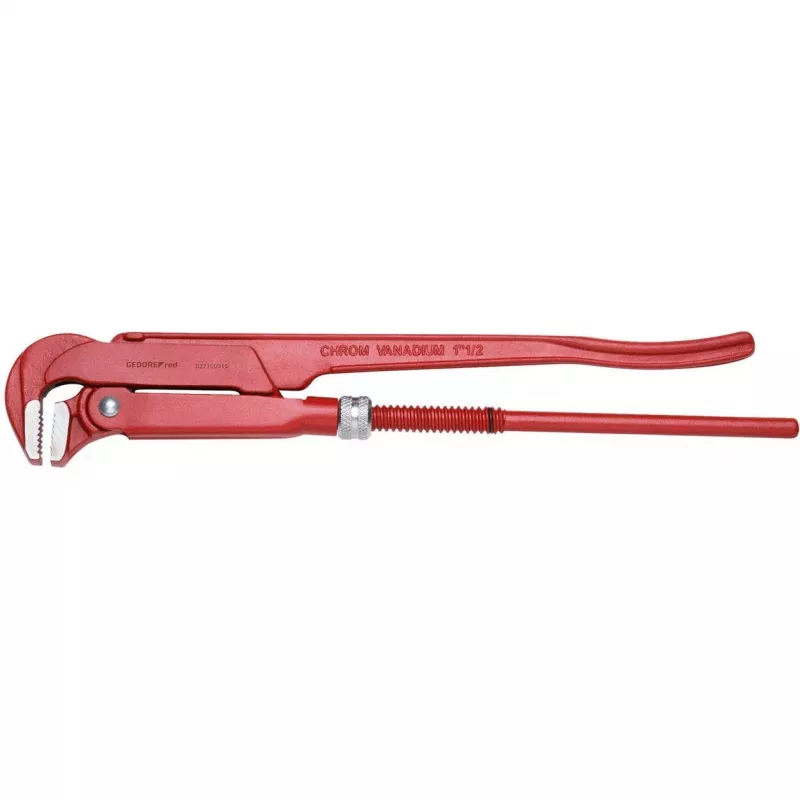

GEDORE red llave de tubo 90° modelo SV 1.1/2 420mm (R27100015)

Plumbers and installers often struggle with rounded or seized pipe fittings that slip under pressure. The GEDORE red 90° SV-Model pipe wrench solves this with a self-clamping S-type jaw that grips on three points, delivering secure hold even on polished or damaged surfaces. Its 90° jaw angle allows work in tight spaces where a straight wrench cannot reach.

Who is it for

This tool is built for professional plumbers, HVAC technicians, and industrial maintenance crews who need reliable torque on pipes up to 1 1/2 inches. It is equally suited to serious DIYers tackling stubborn plumbing repairs.

Main features

• 90° angled jaw for access in confined areas
• Self-clamping S-type jaw with 3-point contact to prevent slipping
• Quick adjustment via knurled nut for fast size changes
• Induction-hardened jaw teeth for long service life
• Drop-forged steel construction with powder-coated finish for corrosion resistance
• Ergonomic double T-profile handle with non-slip grip
• Complies with DIN 5234

Specifications

• Product Type: Pipe Wrench
• Model Series: SV-Model (Swedish Model)
• Jaw Angle: 90°
• Overall Length: 420 mm
• Nominal Pipe Capacity: 1 1/2 inch
• Max. Jaw Opening: 50 mm
• Jaw Type: S-type (3-point contact)
• Jaw Material: High-quality tool steel
• Jaw Hardening: Induction hardened
• Handle Type: Double T-profile
• Construction Material: Drop-forged steel
• Surface Finish: Powder-coated
• Adjustment Mechanism: Self-clamping, quick adjustment
• Standard Compliance: DIN 5234
• Application: Plumbing, installation, industrial
• Adjustment Nut: Knurled
• Grip: Ergonomic, non-slip

Tips

For best grip, position the wrench so the movable jaw faces the direction of rotation. Keep the jaw teeth clean and lightly oiled to maintain smooth adjustment. Do not use extensions on the handle; the tool is designed to apply maximum torque safely within its rated capacity.
