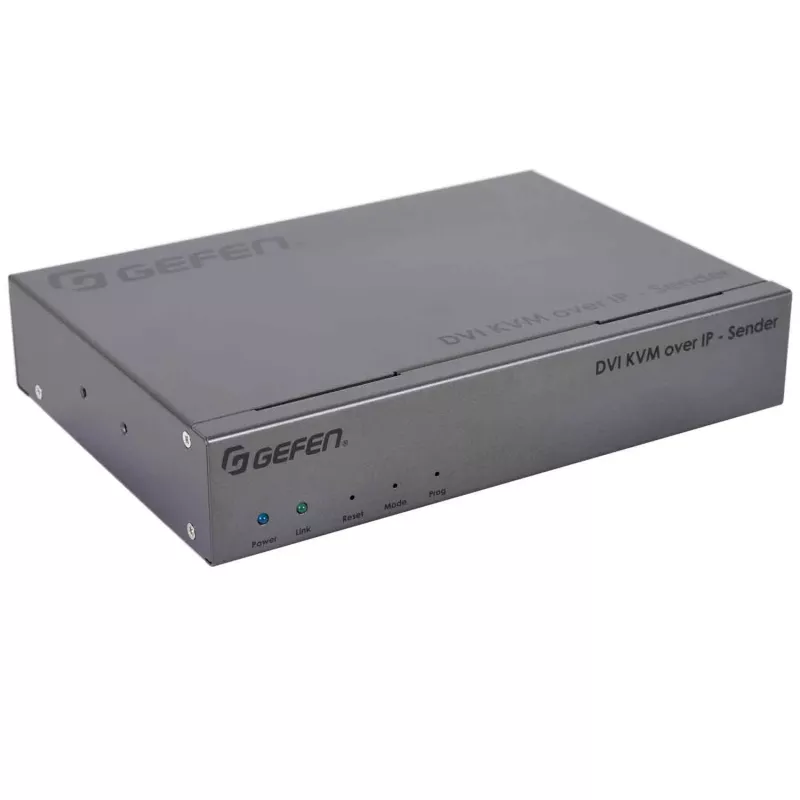

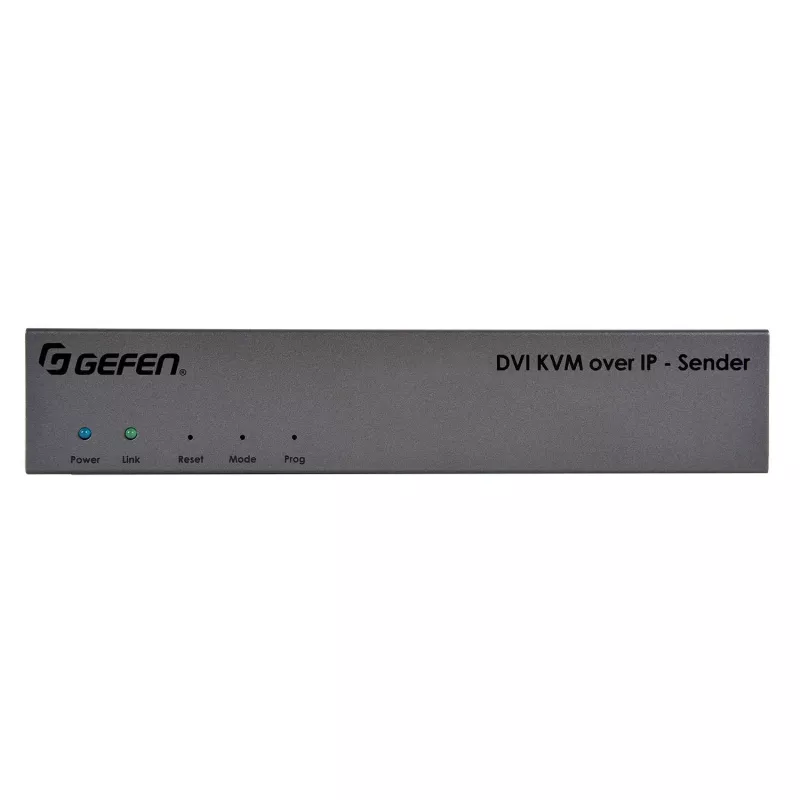

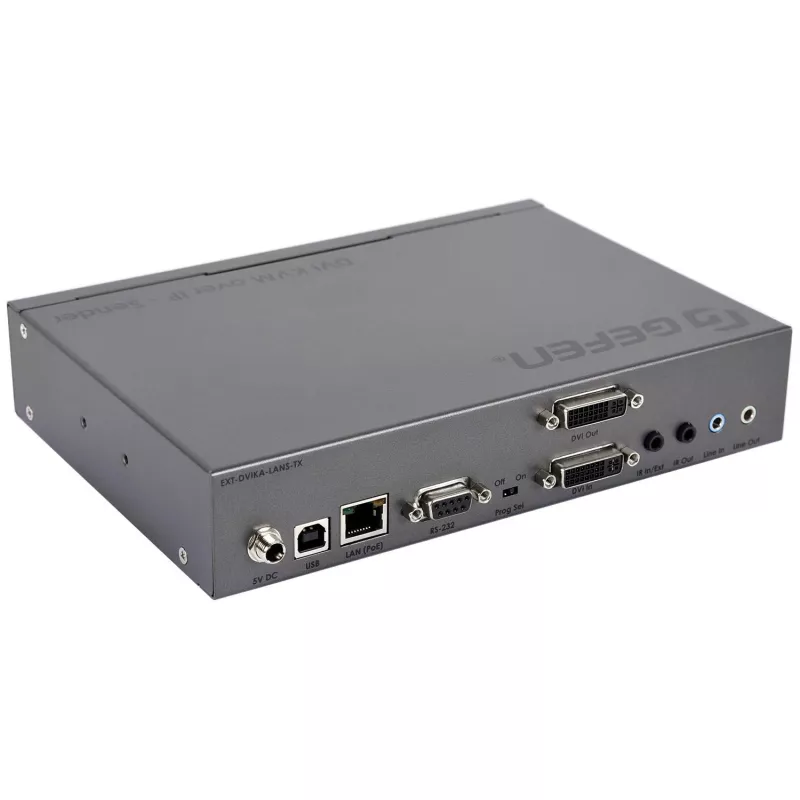

Gefen DVI KVM Over IP Sender Package - Extensión de vídeo, audio, infrarrojos, USB, serie

The Gefen EXT-DVIKA-LANS-TX is a professional DVI KVM Over IP Sender Package that extends video, audio, infrared, USB, and serial signals over a Gigabit Ethernet network. Ideal for extending a single computer's console to multiple remote locations, this sender unit supports resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD. It features local loop-through for DVI video and audio, two USB 2.0 device ports, RS-232 control, and IR pass-through. The unit is rack-mountable (1U, half rack width) and includes a locking 5V DC power supply.

Advantages

Seamless extension of DVI, USB, audio, RS-232, and IR over a single CAT5e/6 cable or network. Supports up to 16 senders and hundreds of receivers on the same network. HDCP compliant with EDID management ensures compatibility with a wide range of displays. Local loop-through allows connection of a local monitor and speakers for zero-latency viewing.

Suitable for

• Control room environments requiring remote KVM access
• Digital signage and video wall applications
• Server room management and remote workstation extension
• Broadcast and post-production studios

Key specifications

• Video Input: 1 x DVI-I (29-pin female)
• Video Output (Local): 1 x DVI-I (29-pin female)
• USB Host: 1 x USB Type B (female)
• USB Device: 2 x USB Type A (female)
• Audio Input: 1 x 3.5mm stereo mini-jack
• Audio Output (Local): 1 x 3.5mm stereo mini-jack
• Serial: 1 x DB-9 (female)
• IR Input/Output: 2 x 3.5mm mini-jack
• Network: 1 x RJ-45 Gigabit Ethernet
• Max Resolution: 1920 x 1200 (WUXGA) / 1080p Full HD
• Power Supply: 5V DC, 4A (locking connector)
• Mounting: Rack-mountable (1U, half rack width)

Recommendations

For optimal performance, use shielded CAT6 cabling and ensure your network supports IGMP snooping and multicast. The sender is compatible with Gefen receivers (sold separately) for point-to-point or multi-point extensions.
