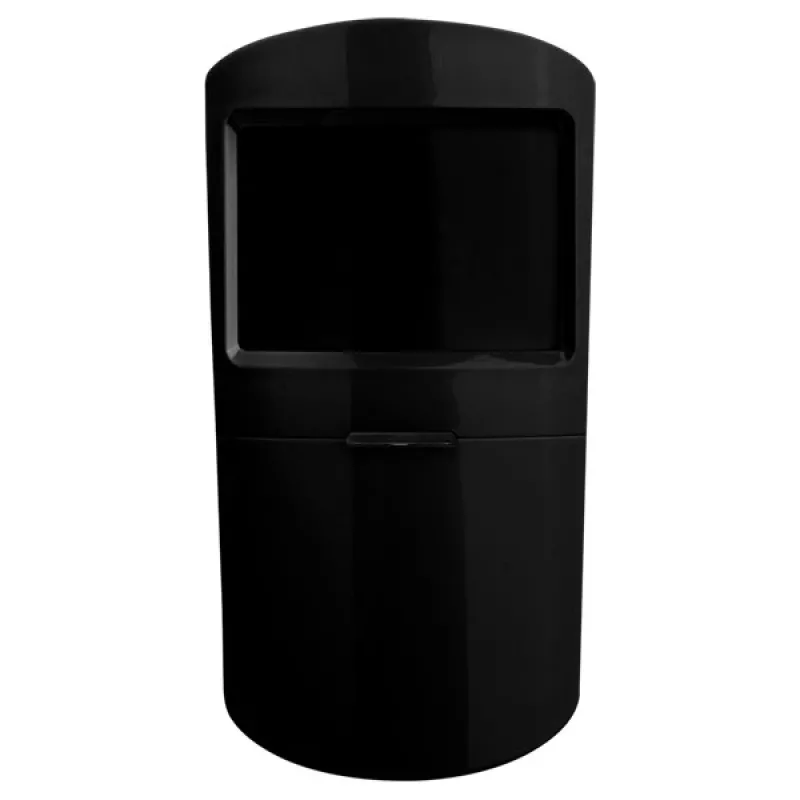

Genevo EVOPIR-NX-BK Sensor de movimiento PIR inalámbrico, negro

The Genevo EVOPIR-NX-BK is a high-performance wireless Passive Infrared (PIR) motion sensor designed for indoor security applications. Operating at 868 MHz, it seamlessly integrates with Genevo PRiMA and ULTRiMA alarm systems, providing reliable intrusion detection with a range of up to 12 meters and a 90-degree detection angle. Its compact black housing and advanced digital signal processing ensure accurate detection while minimizing false alarms.

Advantages

Pet immunity up to 25 kg prevents false triggers from household pets. Automatic temperature compensation maintains consistent performance across varying temperatures. The long battery life of up to 3 years reduces maintenance, and the tamper protection adds an extra layer of security against sabotage.

Suitable for

• Indoor residential and commercial premises
• Integration with Genevo PRiMA and ULTRiMA alarm systems
• Areas requiring pet-friendly motion detection

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Wireless Frequency: 868 MHz
• Detection Range: 12 meters
• Detection Angle: 90 degrees
• Power Source: 1x CR123A 3V Lithium Battery
• Battery Life: Up to 3 years
• Pet Immunity: Up to 25 kg
• Tamper Protection: Yes (Casing Open)
• Operating Temperature: -10°C to +55°C
• Wireless Transmission Range: Up to 500 meters (open space)
• Mounting Height: 2.1 - 2.7 meters
• Color: Black
• Signal Processing: Digital
• Temperature Compensation: Automatic
• LED Indicator: Yes (Alarm, Low Battery, Test Mode)
• Alarm Output: Wireless signal to control panel

Recommendations

For optimal performance, mount the sensor at the recommended height and ensure a clear line of sight to the control panel. Test the sensor after installation and replace the battery when the low battery indicator activates.
