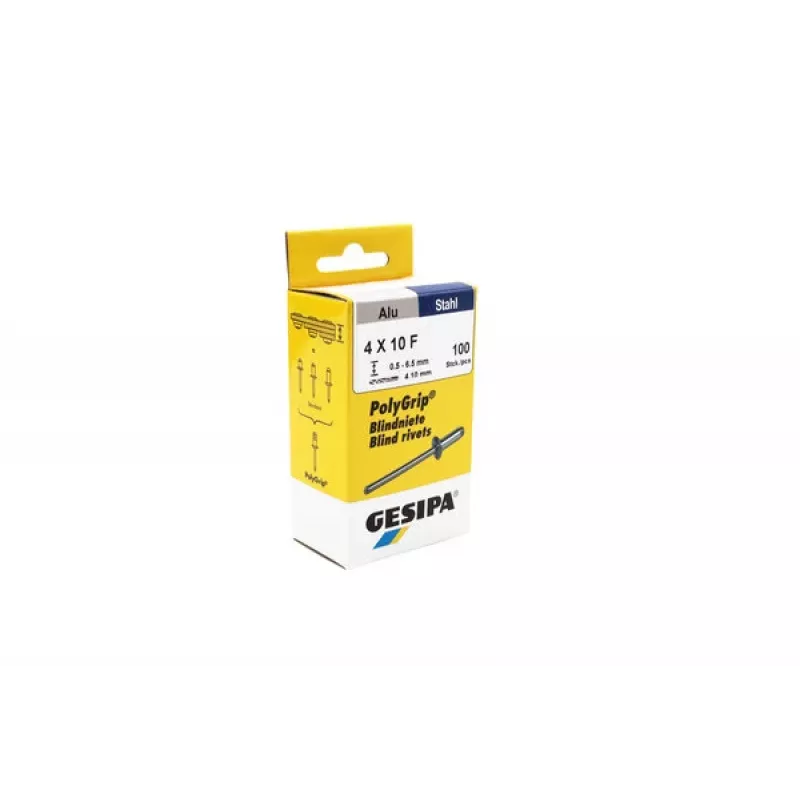

GESIPA PolyGrip® remache ciego 4,0 x 10,0 mm aluminio/acero (100 uds.) 1433848

With a shear strength of 1.5 kN and tensile strength of 1.9 kN, this GESIPA PolyGrip® blind rivet delivers reliable joints across a wide clamping range of 3.0 to 7.0 mm.

Overview

The GESIPA PolyGrip® blind rivet features a 4.0 mm diameter aluminium body and a steel mandrel. Its flat round head measures 8.0 mm in diameter and 1.0 mm thick. The rivet is 10.0 mm long and requires a 4.1 mm drill hole. It is supplied in a pack of 100 pieces.

What stands out

• Wide grip range from 3.0 to 7.0 mm for multi-material joints
• Aluminium body provides good corrosion resistance
• Steel break mandrel ensures secure setting
• Flat round head for a neat finish

Technical details

• Rivet type: Blind rivet
• Rivet series: PolyGrip®
• Head type: Flat round head
• Rivet body material: Aluminium
• Mandrel material: Steel
• Rivet diameter (d): 4.0 mm
• Rivet length (l): 10.0 mm
• Grip range: 3.0 - 7.0 mm
• Drill hole diameter: 4.1 mm
• Head diameter: 8.0 mm
• Head thickness: 1.0 mm
• Shear strength: 1.5 kN
• Tensile strength: 1.9 kN
• Number of pieces per pack: 100
• Surface finish: Natural

Our verdict

A versatile blind rivet for applications requiring a broad clamping range and good corrosion resistance.
