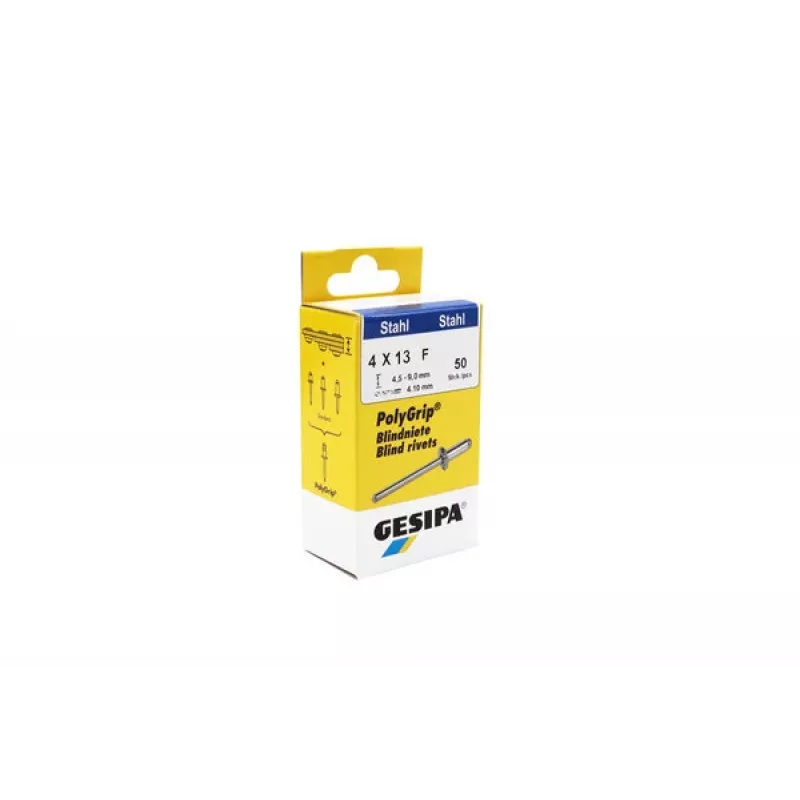

GESIPA Remaches ciegos PolyGrip® 4,0 x 13,0 mm acero/acero (50 uds.) 1464883

Joining materials of varying thicknesses or different types can be challenging with standard rivets. The GESIPA PolyGrip® blind rivet solves this by offering an exceptionally wide grip range of 1.0 to 8.0 mm, allowing one rivet size to cover multiple applications. Its steel body and steel mandrel provide high strength, with a shear strength of approximately 2000 N and tensile strength of approximately 2800 N, making it suitable for demanding multi-material joints.

Who is it for

This rivet is ideal for professionals in metalworking, automotive, construction, and general manufacturing who need a reliable fastener for assemblies with varying material thicknesses or mixed materials. It is especially useful when a wide grip range reduces the need to stock multiple rivet sizes.

Main features

• PolyGrip® design with wide grip range: 1.0 – 8.0 mm
• Steel rivet body and steel mandrel for high strength
• Dome head for a clean, finished appearance
• Drill hole diameter: 4.1 – 4.2 mm
• Pack of 50 pieces

Specifications

• Product type: Blind rivet
• Series: PolyGrip®
• Rivet diameter (d): 4.0 mm
• Rivet length (l): 13.0 mm
• Grip range: 1.0 – 8.0 mm
• Head type: Dome head
• Head diameter: 8.0 mm
• Head height: 1.2 mm
• Drill hole diameter: 4.1 – 4.2 mm
• Shear strength: 2000 N
• Tensile strength: 2800 N
• Material: Steel body, steel mandrel
• Corrosion protection: Standard steel (not stainless)
• Quantity per pack: 50 pieces

Tips

Ensure the drill hole diameter is within 4.1 – 4.2 mm for optimal setting. For materials with total thickness within the grip range, this rivet will provide a secure and vibration-resistant joint. Always use appropriate riveting tools compatible with 4.0 mm steel rivets.
