GETFORT GF-FRP-2J Cable de fibra óptica FTTH interior LSOH, 2 fibras, monomodo G.657.A2, 1m, blanco

Engineered for bend-insensitive performance, this 1-meter GETFORT GF-FRP-2J cable features two single-mode fibers compliant with ITU-T G.657.A2, ensuring minimal signal loss even in tight indoor routing. The LSOH jacket guarantees low smoke and zero halogen emission, making it a safe choice for FTTH installations in residential and commercial buildings.

Overview

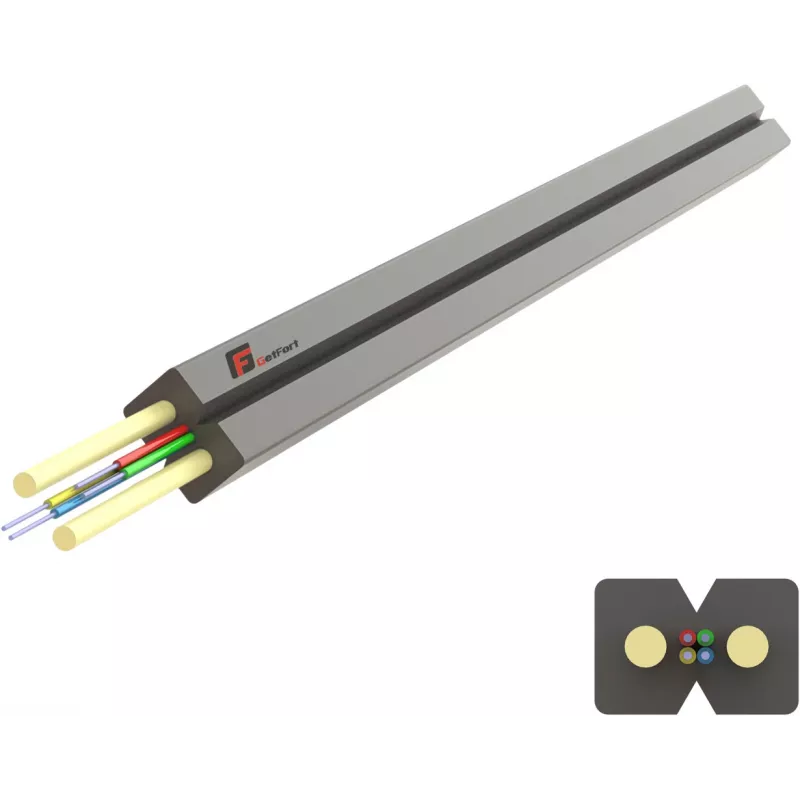

The GETFORT GF-FRP-2J is a 2-fiber indoor FTTH drop cable designed for reliable optical transmission. Its single-mode fibers offer low attenuation (≤0.35 dB/km at 1310nm, ≤0.20 dB/km at 1550nm) and excellent bend resistance. The cable is reinforced with FRP (Fiber Reinforced Plastic) strength members, providing high tensile strength (150 N) and crush resistance (1000 N/100mm) to withstand installation stresses. The white LSOH outer jacket meets IEC 60332-1 flame retardancy, IEC 61034 low smoke, and IEC 60754 zero halogen standards, ensuring safety in fire-sensitive environments.

What stands out

• Bend-insensitive G.657.A2 fibers allow tight bends without significant signal degradation.
• LSOH jacket reduces toxic smoke and corrosive gases in case of fire.
• FRP strength members provide durability and protection against physical damage.
• Compact 3.0mm outer diameter enables easy installation in conduits and tight spaces.
• Wide operating temperature range (-20°C to +70°C) suits various indoor environments.

Technical details

• Fiber count: 2
• Fiber type: Single-mode (ITU-T G.657.A2)
• Cable length: 1 meter
• Outer diameter: approx. 3.0 mm
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Strength member: FRP (Fiber Reinforced Plastic)
• Minimum bend radius: 7.5 mm
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.20 dB/km @1550nm
• Tensile strength (installation): 150 N
• Crush resistance: 1000 N/100mm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +70°C
• Fire resistance: IEC 60332-1
• Smoke density: IEC 61034
• Halogen content: IEC 60754

Our verdict

The GETFORT GF-FRP-2J is an excellent choice for indoor FTTH deployments where safety, flexibility, and performance are paramount. Its bend-insensitive fibers and LSOH jacket make it ideal for modern building installations, while the FRP reinforcement ensures long-term reliability. The 1-meter length is perfect for patch cords or short drop connections.
