GETFORT NGF-01 Herramienta de inserción LSA con impacto ajustable y cuchilla reversible

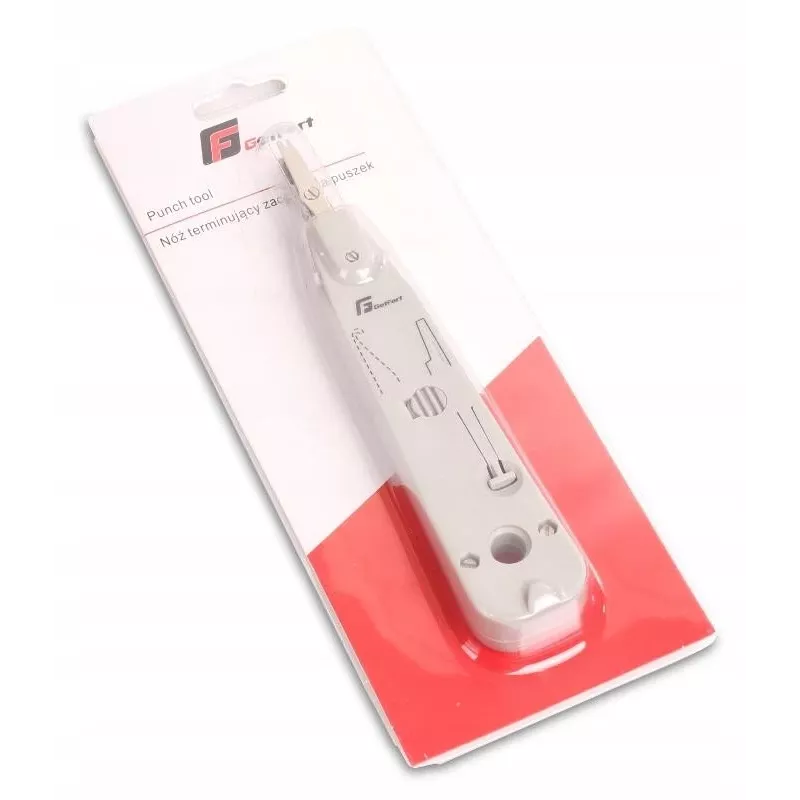

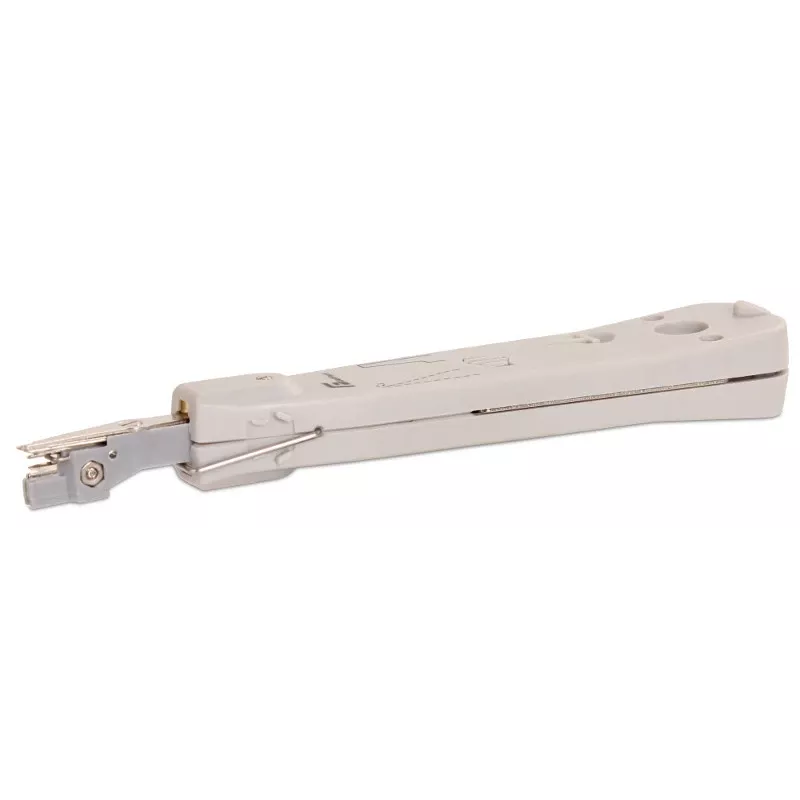

The GETFORT NGF-01 LSA Punch Down Tool is a professional-grade terminating knife designed for precise and efficient termination of LSA-PLUS IDC connectors in telecommunications, data networking, and voice cabling applications. Built with a robust construction and ergonomic grip, this tool ensures reliable performance in demanding environments.

Advantages

Adjustable impact sensor with cut-off function prevents over-termination and damage to connectors. Reversible hardened steel blade allows both cut and non-cut operations, extending tool versatility. Integrated wire hook and spudger streamline cable preparation and routing tasks.

Suitable for

• Terminating LSA-PLUS IDC connectors on 110 and Krone blocks
• Punching down solid and stranded cables (22-26 AWG) in UTP/STP networks
• Telecom and data center installations requiring TIA/EIA-568-B/C compliance
• Voice cabling and structured cabling systems

Key specifications

• Tool Type: Punch Down Tool / Terminating Knife
• Compatibility: LSA-PLUS IDC Connectors
• Impact Mechanism: Adjustable Sensor with Cut-off Function
• Blade Type: Reversible (Cut/Non-Cut)
• Blade Material: Hardened Steel
• Handle Material: High-Impact ABS Plastic

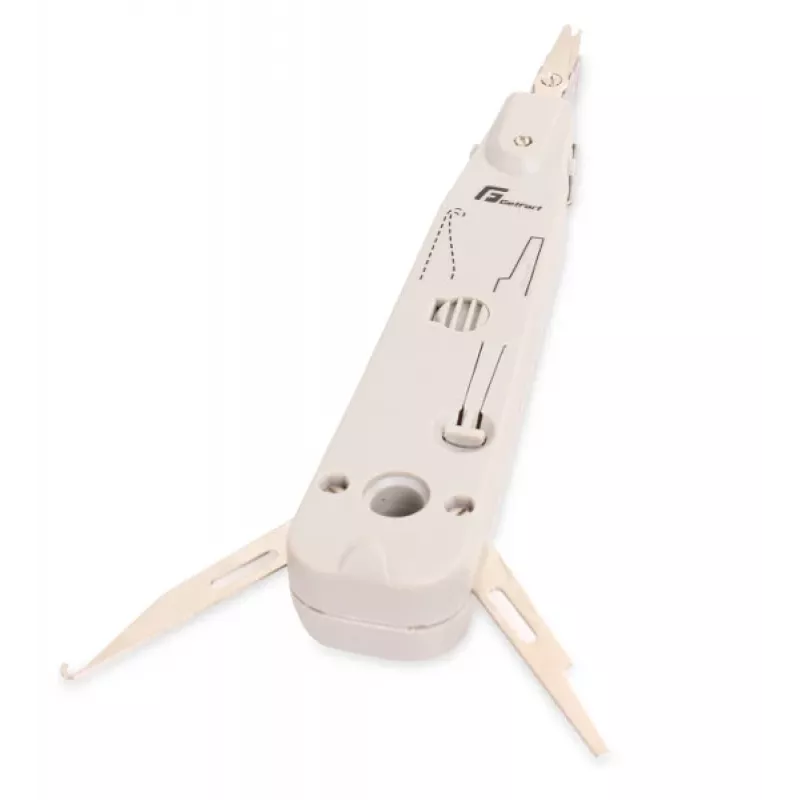

• Integrated Features: Wire Hook, Wire Spudger
• Wire Gauge Compatibility: 22-26 AWG (Solid and Stranded)
• Cable Termination: UTP/STP Cables
• Connector Standard: TIA/EIA-568-B/C
• Ergonomics: Ergonomic Grip Design
• Safety Features: Integrated Blade Guard

Recommendations

For optimal results, pair with GETFORT LSA connectors and a cable stripper. Always wear safety glasses when using punch down tools. Store in a dry place to maintain blade sharpness.
