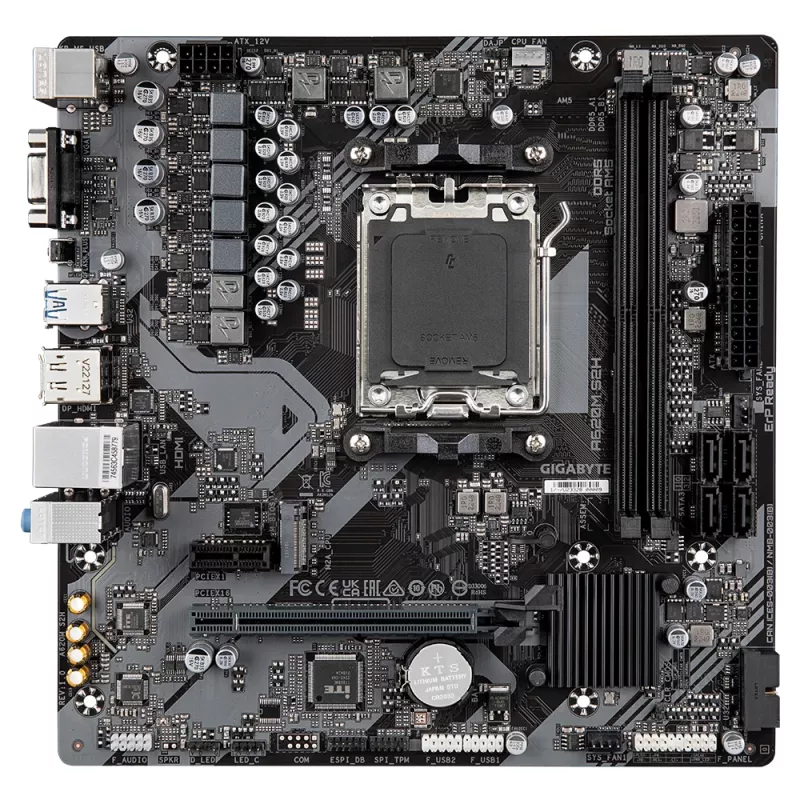

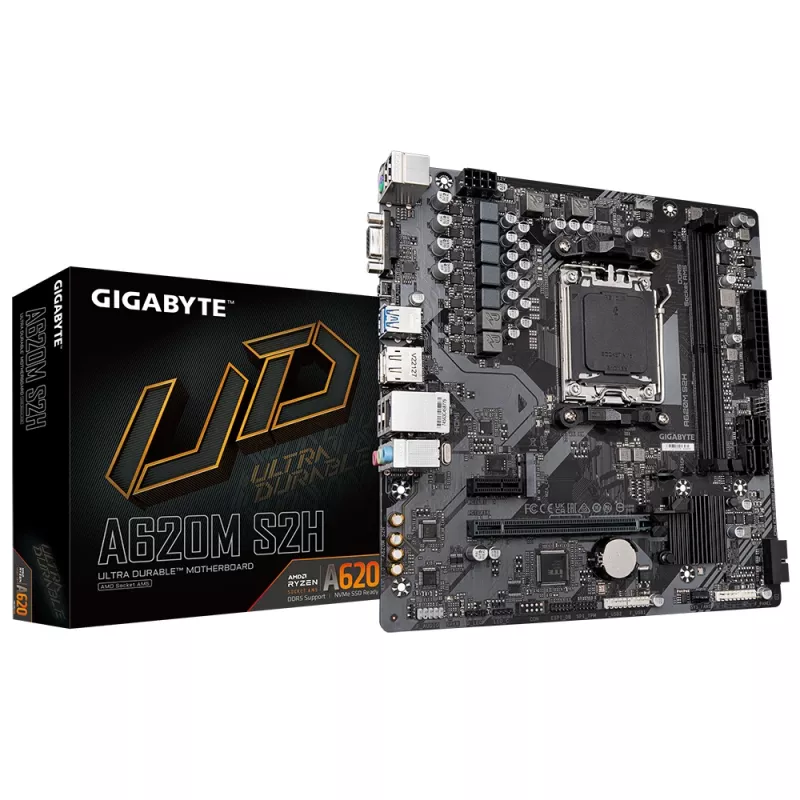

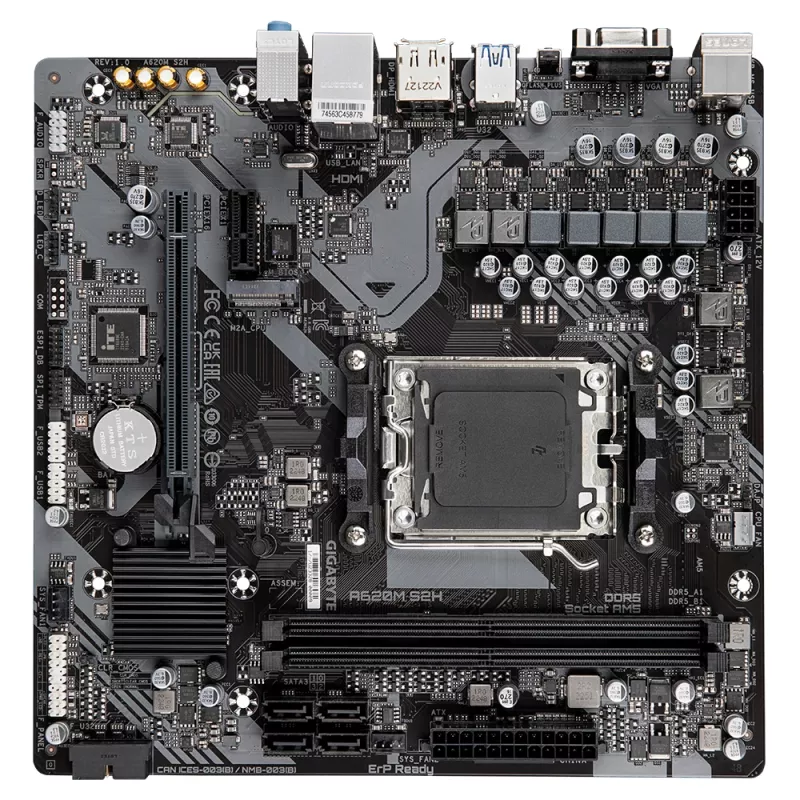

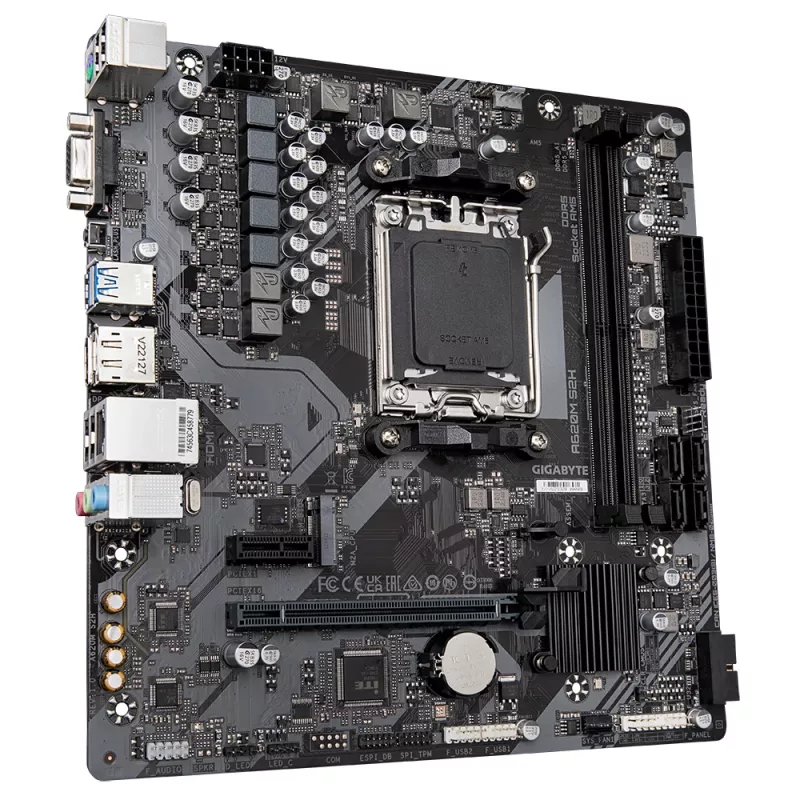

GIGABYTE A620M S2H placa base, A620, AM5, Micro ATX

The GIGABYTE A620M S2H (Micro ATX) motherboard is built for AM5 systems and supports AMD Ryzen 8000 series processors. It uses the AMD A620 chipset and provides a 5+2+2-phase digital VRM for stable power delivery. Memory support reaches up to 7200 MHz (OC) on DDR5 modules across two DIMM slots, with a maximum internal memory capacity of 96 GB. Storage options include one PCIe 4.0 M.2 slot and standard SATA connections for HDD and SSD drives, and the board offers GbE LAN for wired networking and RAID 0/1/10 support for configurable storage setups.

Advantages

The motherboard combines a compact Micro ATX form factor with modern AM5 compatibility and DDR5 support, delivering a balance of performance and space efficiency. Its digital VRM design and PCIe 4.0 M.2 slot enable reliable operation with high-speed storage and contemporary Ryzen CPUs. Integrated GbE LAN and RAID support add flexible connectivity and data redundancy options.

Suitable for

• Compact gaming PC builds using AMD Ryzen 8000 series processors
• Home or office workstations requiring reliable wired networking
• Content creators and professionals needing fast storage and stable power delivery

Key specifications

• Form factor: Micro ATX
• Chipset: AMD A620
• Processor socket: Socket AM5 (supports AMD Ryzen 8000 series)
• Memory: 2 × DDR5 DIMM slots, up to 7200 MHz (OC), maximum 96 GB
• Storage: 1 × PCIe 4.0 M.2 slot, SATA ports for HDD/SSD
• Power design: 5+2+2-phase digital VRM
• Networking: GbE LAN
• RAID: 0, 1, 10

How to use

Install the motherboard into a compatible Micro ATX case, mount an AM5-compatible Ryzen 8000 series CPU in the Socket AM5, and secure a compatible CPU cooler. Insert DDR5 memory modules into the two DIMM slots, install storage devices via the PCIe 4.0 M.2 slot or SATA ports, and connect power from a suitable PSU. Configure BIOS settings as needed for memory overclocking (up to DDR5-7200 OC) and enable RAID if using multiple drives. Attach peripherals and connect the system to a network via the onboard GbE LAN.

Recommendations

For stable performance, use a high-quality power supply and a compatible AM5 CPU cooler. When enabling memory overclocking, update the BIOS to the latest version and test system stability. Use RAID configurations only after backing up important data.
