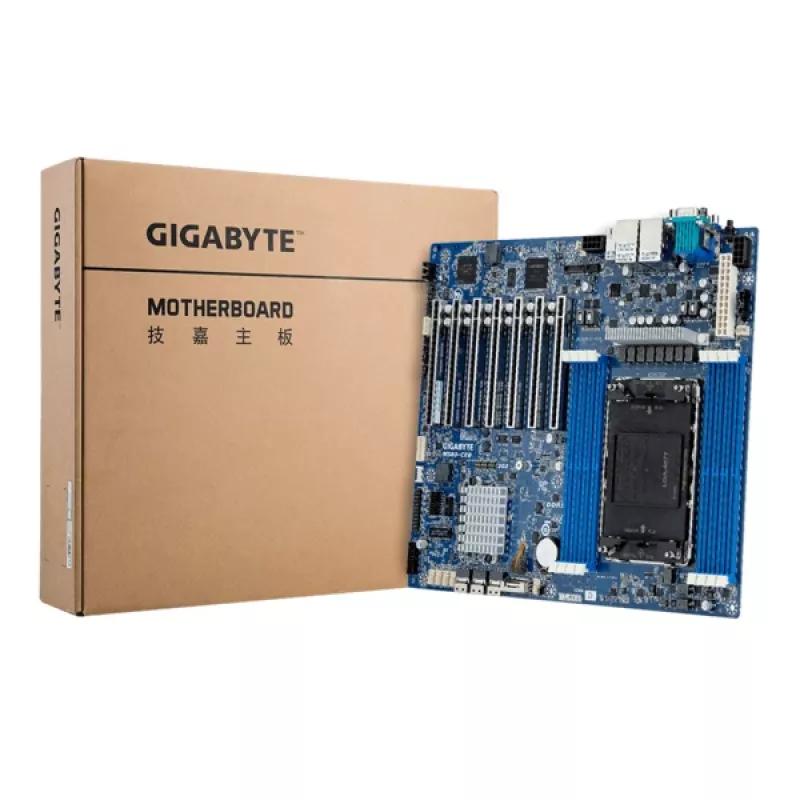

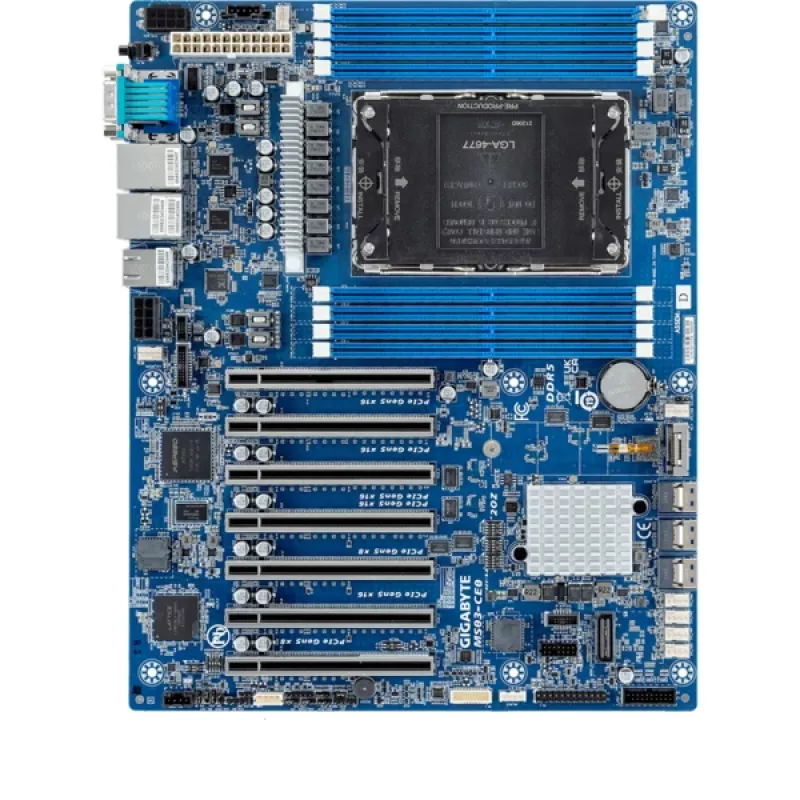

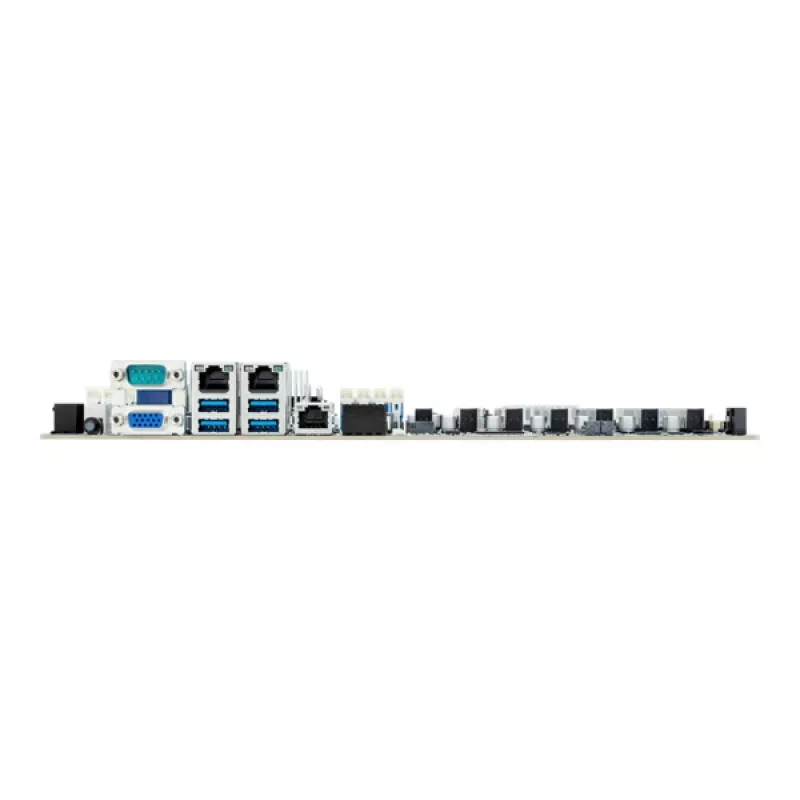

GIGABYTE MS03-CE0 placa base Intel C741 LGA 4677 (Socket E) ATX

Accelerating Artificial Intelligence and Leading Efficiency
Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
GSM CLI: A command-line interface for monitoring and managing remotely.
GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

GIGABYTE MS03-CE0. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I210-AT

How to use

Install a compatible Intel C741 processor into the LGA 4677 socket and populate DDR5 DIMMs according to the motherboard manual to reach the desired memory capacity and channel configuration. Connect SATA storage devices and configure RAID levels in the BIOS or via the RAID controller firmware as needed. Attach Gen5 NVMe drives and PCIe Gen5 accelerators to the appropriate slots to benefit from higher bandwidth. For remote monitoring and maintenance, use the pre-installed GIGABYTE Management Console or deploy GIGABYTE Server Management (GSM) components across server nodes.

Recommendations

For cluster deployments and large-scale server management, combine the MS03-CE0 with GIGABYTE Server Management (GSM) to enable real-time monitoring, remote control, and integration with IPMI or Redfish-compliant tools. Consider installing an optional TPM 2.0 module for hardware-based credential protection and enabling ECC DDR5 memory where supported by the processor to improve reliability in critical workloads.
