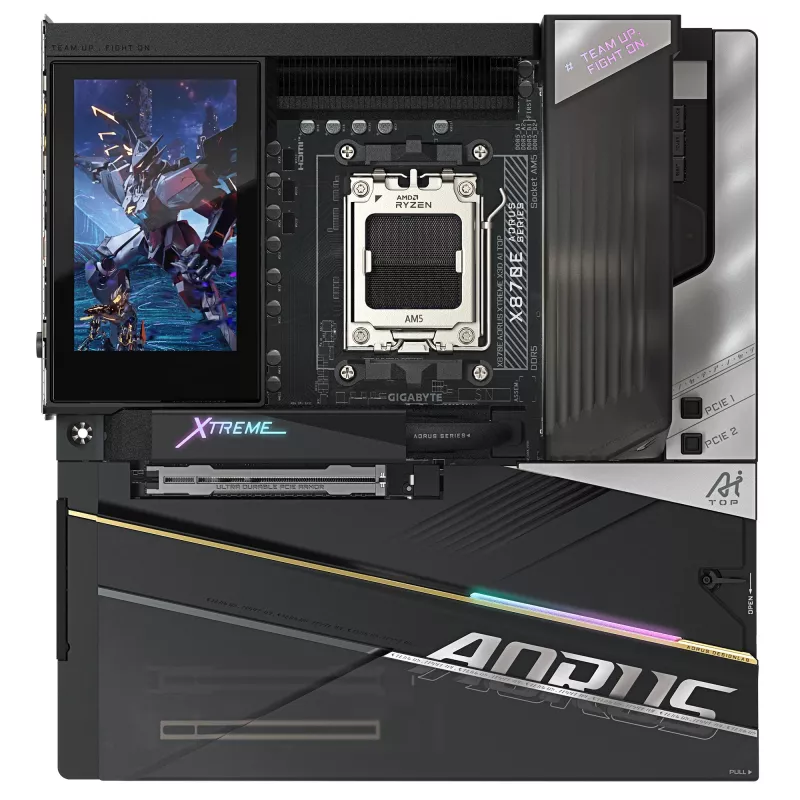

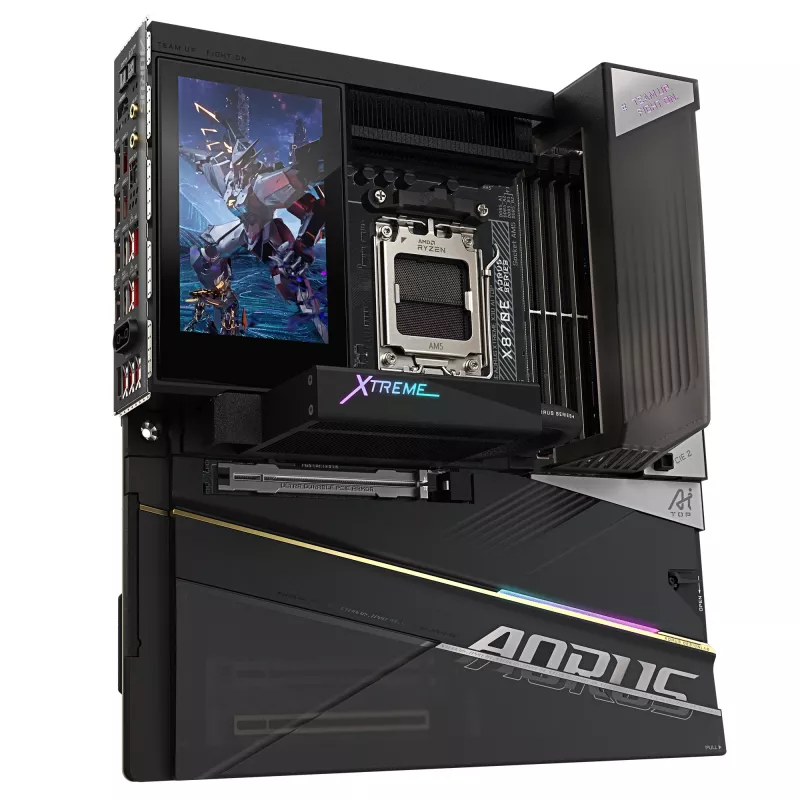

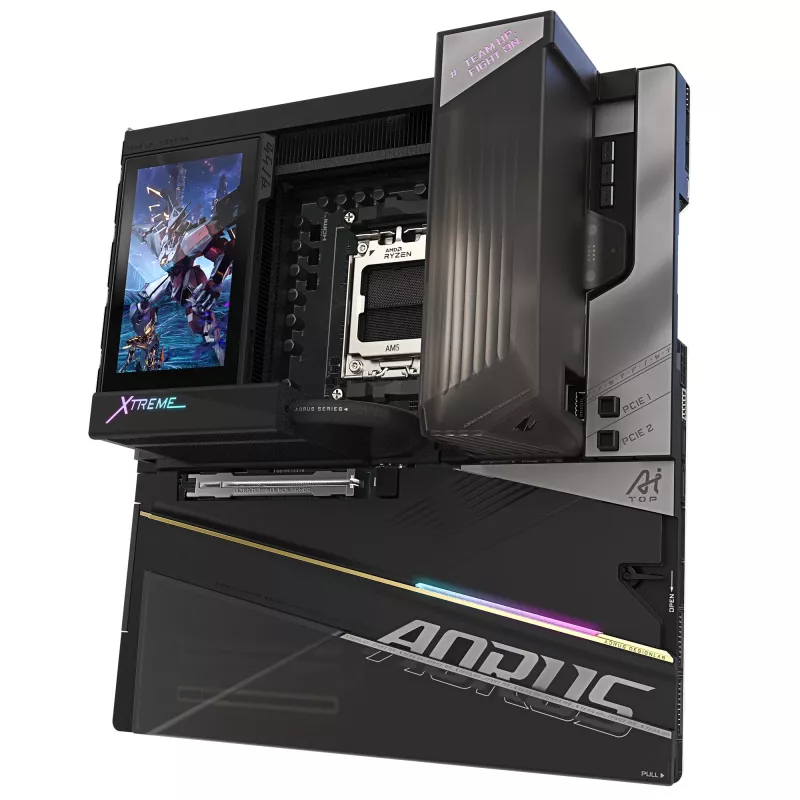

GIGABYTE X870E A XTR X AI TOP – Placa base AMD Socket AM5 (Ryzen Zen4)

GIGABYTE X870E A XTR X AI TOP is a high-end motherboard built for AMD Socket AM5 processors based on the Ryzen Zen4 family. The board provides a desktop platform with advanced power delivery, multi-GPU and high-speed storage support, and modern connectivity options. Its layout and feature set are intended for performance-oriented builds such as gaming rigs, content-creation workstations, and professional desktops that require stable overclocking and multiple expansion devices.

Advantages

The motherboard integrates robust VRM design and thermal solutions to support high-core-count AM5 CPUs under sustained loads. It combines PCIe lanes and M.2 interfaces for flexible storage and graphics configurations while offering high-speed networking and multiple USB ports for peripherals. Firmware and BIOS features allow system tuning and compatibility management tailored to Zen4 processors.

Suitable for

• High-performance gaming builds with discrete graphics cards
• Content creation systems for video editing, 3D rendering, and streaming
• Workstation setups requiring multiple storage devices and expansion cards
• Enthusiast overclocking and performance tuning with AM5 Ryzen CPUs

Key specifications

• CPU socket: AMD Socket AM5, compatible with Ryzen Zen4 processors
• Memory support: DDR5 memory modules (dual-channel) with multiple DIMM slots
• Expansion slots: Multiple PCIe slots supporting modern graphics and add-in cards
• Storage interfaces: M.2 slots and SATA ports for NVMe and SATA drives

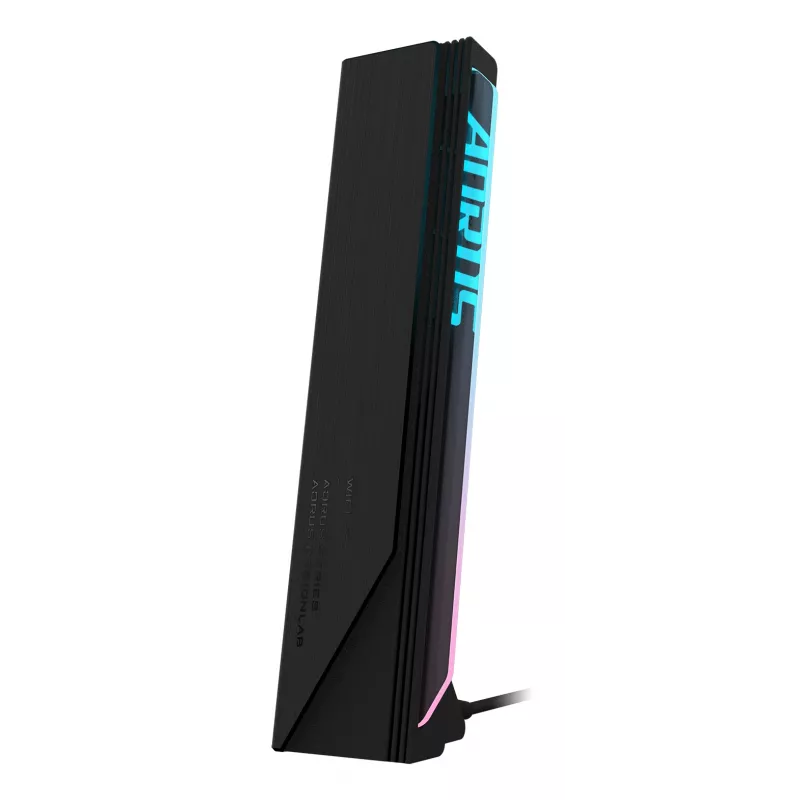

• Networking: Onboard high-speed Ethernet and/or Wi-Fi options for wired and wireless connectivity

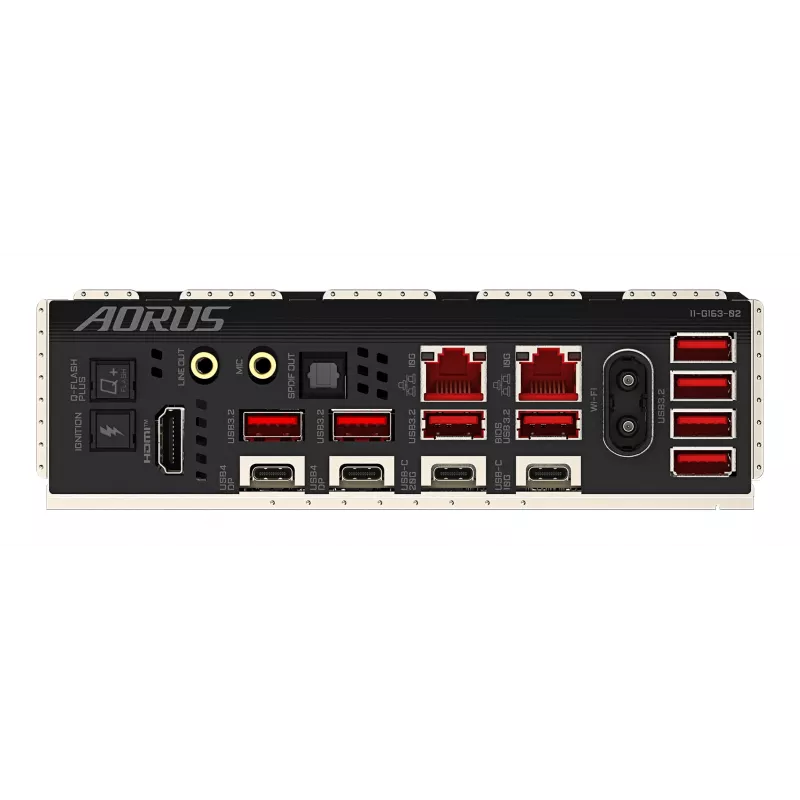

• USB connectivity: Multiple rear and internal USB headers supporting high bandwidth devices
• Cooling: Heatsinks and fan headers for CPU and chassis cooling solutions

How to use

Install the GIGABYTE X870E A XTR X AI TOP into a compatible ATX chassis and mount the AM5 CPU into the socket following manufacturer guidance. Insert DDR5 memory modules into the correct DIMM slots per the motherboard manual and connect storage devices to M.2 or SATA interfaces. Attach the power supply cables to the 24-pin ATX and CPU power connectors, then install graphics and expansion cards into the appropriate PCIe slots. Connect front panel connectors, fans, and USB headers, and complete the build by configuring BIOS settings for memory profiles, storage mode, and boot order. Update firmware when necessary to ensure full compatibility with the installed Ryzen Zen4 processor and other components.

Recommendations

Use modules and peripherals that meet the motherboard's supported specifications: certified DDR5 memory, NVMe drives in recommended M.2 slots, and a power supply with adequate capacity for your CPU and GPU. Ensure proper case airflow and secure heatsink contact for reliable thermal performance during demanding workloads. Refer to the official GIGABYTE support pages for BIOS updates and detailed configuration guidance.
