GIRA 120100 TKS Gateway de cámara para la comunicación de puerta

Integrates up to 16 IP cameras into the Gira door communication system, enabling HD video surveillance at the entrance. The gateway connects via TKS bus and Ethernet, with configuration through the Gira Project Assistant software.

Overview

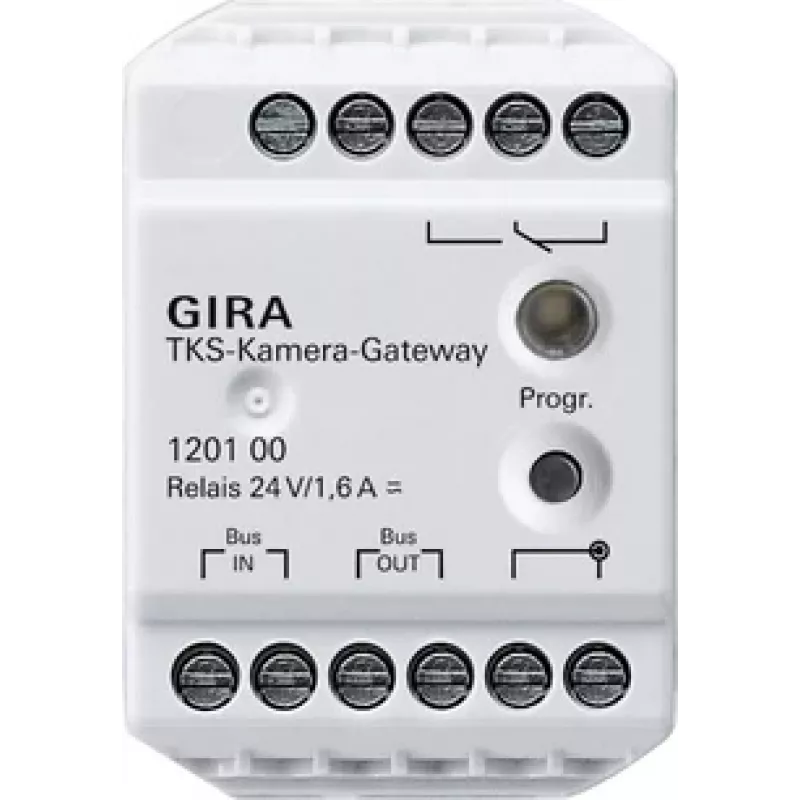

The GIRA 120100 TKS Camera Gateway bridges IP cameras with the Gira TKS door communication bus. It supports up to 16 cameras with a maximum resolution of 1280 x 720 pixels (HD 720p), providing clear video for visitor identification. The device is designed for DIN rail mounting (4 TE width) and is powered either via the TKS bus (26 V DC) or an external 12 V DC supply.

What stands out

• Connects up to 16 IP cameras to the Gira door communication system
• Supports HD 720p video resolution for detailed images
• DIN rail mounting for easy integration into electrical cabinets
• Configuration via USB or network using Gira Project Assistant

Technical details

• Product type: Door Communication Camera Gateway
• Door communication interface: 1x TKS bus
• Network interface: 1x RJ45 Ethernet (10/100 Mbit/s)
• Configuration interface: 1x USB 2.0 Type B
• Power supply: TKS bus (26 V DC) or external 12 V DC (1 A, not included)
• Mounting: DIN rail (REG), 4 TE (72 mm width)
• Operating temperature: -5 °C to +45 °C
• Storage temperature: -20 °C to +70 °C
• Relative humidity: 0% to 65% (no condensation)
• Housing material: Plastic, light grey (RAL 7035)

Our verdict

A robust gateway for integrating IP cameras into Gira door communication, offering HD video and flexible power options. Ideal for residential or commercial installations requiring video surveillance at entry points.
