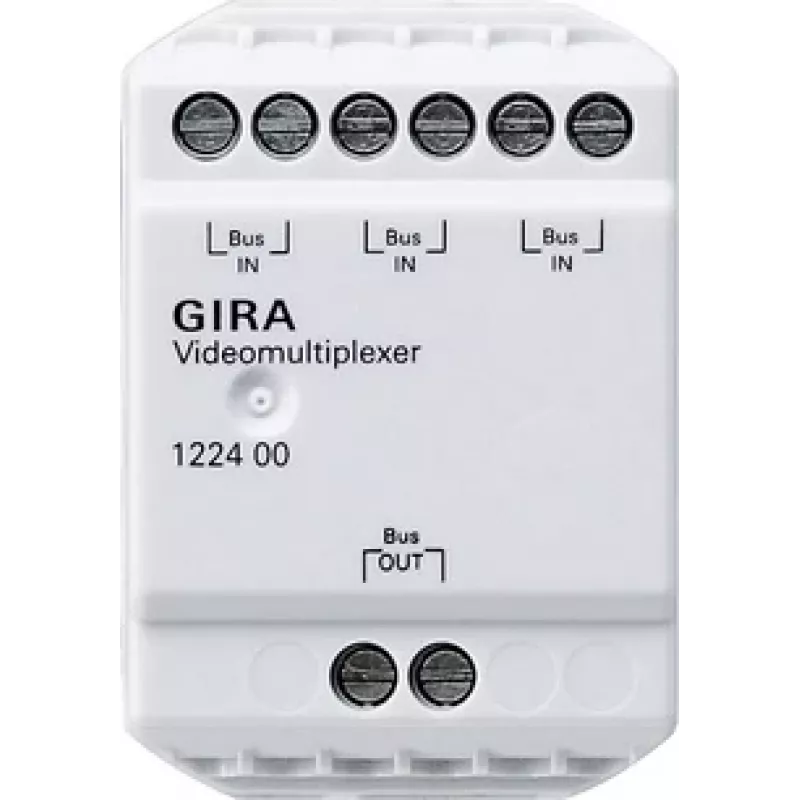

Gira 122400 videomultiplexor para comunicación de puerta, bus de 2 hilos, 4 entradas de cámara, carril DIN, 6 TE

This Gira video multiplexer stands out by combining four camera signals from the door communication system onto a single 2-wire bus, eliminating the need for separate video cabling to each indoor station. It is a compact DIN-rail module that simplifies multi-camera installations in residential or commercial buildings.

Highlights

• Distributes and multiplexes video signals from up to four Gira camera modules
• Integrated video amplifier ensures stable signal quality over the bus
• Potential-free switching contact for additional control functions
• Mounts on DIN rail, width 6 TE (approx. 108 mm)
• Powered via the 2-wire bus or external 24 V DC

In daily use

Installers appreciate the straightforward wiring: camera modules connect directly to the multiplexer, and a single 2-wire bus carries video and data to all indoor stations. The switching contact can trigger a door opener or signal light when a call is active. With screw terminals and a slim 6 TE housing, it fits neatly into standard distribution boards.

Full specifications

• Product type: Video multiplexer
• System compatibility: Gira door communication system
• Bus technology: 2-wire bus
• Number of video inputs: 4
• Input type: For Gira camera modules
• Mounting type: DIN rail (REG device)
• Module width: 6 TE
• Power supply: Via 2-wire bus or external DC 24 V
• Current consumption (bus): Approx. 100 mA
• Current consumption (external): Approx. 50 mA
• Integrated features: Video amplifier
• Additional connections: 1x potential-free switching contact
• Connection type: Screw terminals
• Operating temperature: 0 °C to +45 °C
• Protection class: IP20
• Housing material: Plastic

Final note

Designed for Gira door communication systems, this multiplexer simplifies video distribution while maintaining signal integrity.
