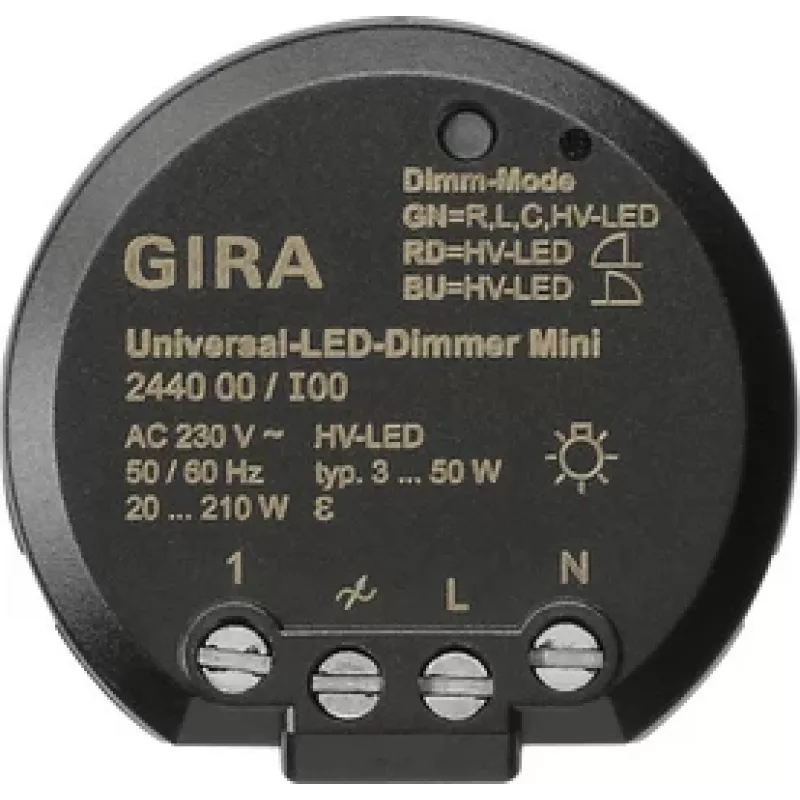

GIRA 244000 Módulo regulador LED universal, empotrar, electrónico, 230 V AC, 3-100 W LED / 20-200 W halógeno, corte de fase, arranque suave, función de memoria

The GIRA 244000 Universal LED Dimmer Module stands out with its automatic load type detection and adjustable minimum brightness, ensuring flicker-free dimming across a wide range of light sources. Unlike basic dimmers, it supports both leading and trailing edge phase control, making it compatible with dimmable HV-LEDs, incandescent, and halogen lamps without manual configuration.

Highlights

• Universal compatibility: dims HV-LEDs, incandescent, HV halogen, and LV halogen with electronic or conventional transformers.
• Electronic short-circuit, overload, and over-temperature protection for safe operation.
• Soft start and memory function: recalls last brightness level after power interruption.
• Adjustable minimum brightness to prevent LED flicker and optimize dimming range.
• Flush-mounted design for integration into Gira System 2000 inserts.

In daily use

This dimmer module operates with a 2-wire connection (L and load) and is controlled via an external push-button or rotary control element. It automatically detects the connected load type and selects the appropriate dimming principle, ensuring smooth and stable performance. The soft start feature extends lamp life by gently ramping up brightness, while the memory function restores your preferred setting after a power cut.

Full specifications

• Product type: Universal LED Dimmer Module
• Mounting type: Flush-mounted (Unterputz)
• Control principle: Phase control (leading edge/trailing edge, R, L, C loads)
• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Load type: Dimmable HV-LEDs, incandescent lamps, HV halogen lamps, LV halogen lamps with electronic or conventional transformers
• LED load (R, C type): 3 - 100 W (VA)
• LED load (L type): 3 - 100 W (VA)
• Incandescent/HV halogen load: 20 - 200 W
• LV halogen (Gira Tronic Transformer): 20 - 200 W
• LV halogen (Conventional Transformer): 20 - 200 VA
• Minimum load: 3 W (LED), 20 W (incandescent/halogen)
• Protection features: Electronic short-circuit protection, overload protection, over-temperature protection
• Special features: Soft start, memory function, adjustable minimum brightness, automatic load type detection
• Connection type: 2-wire connection (L and load)
• Dimming method: Electronic (requires external push-button or rotary control element)
• Ambient temperature: 0 °C to +45 °C
• Compatibility: Suitable for Gira System 2000 inserts

Final note

With its robust protection and intelligent load detection, the GIRA 244000 delivers reliable dimming for modern LED lighting while remaining backward-compatible with traditional bulbs.
