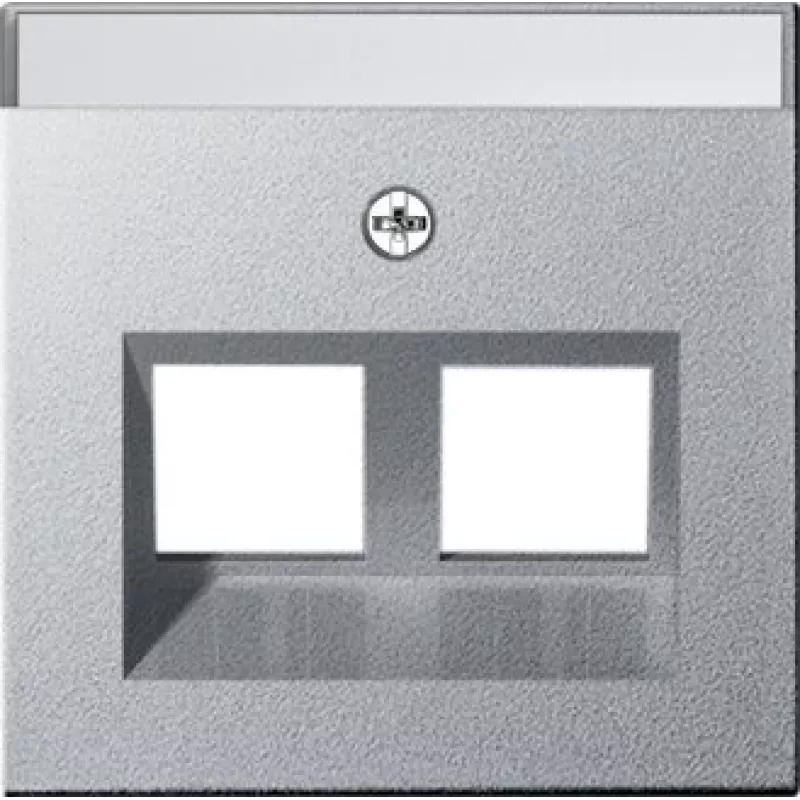

GIRA 264026 Toma de conexión RJ-45, Cat.6A apantallada, aluminio

High-speed data connections in flush-mounted installations often suffer from interference and limited bandwidth. The GIRA 264026 RJ-45 socket insert solves this by providing a shielded Cat.6A connection point that supports 10 Gigabit Ethernet up to 500 MHz, ensuring reliable performance in demanding network environments.

Who is it for

This module is ideal for electricians, system integrators, and homeowners who need a robust, future-proof network outlet compatible with Gira System 55, E2, Event, and Esprit cover frames.

Main features

• RJ-45 jack, shielded (FTP/STP), Cat.6A (Class EA)
• Supports 10 Gigabit Ethernet (10GBase-T) and PoE+ / PoE++
• Frequency range up to 500 MHz, TIA-568A/B wiring
• LSA termination, 45-degree cable entry, gold-plated contacts
• Aluminium colour, thermoplastic and die-cast zinc housing
• Flush-mounted, installation depth approx. 30 mm

Specifications

• Connector type: RJ-45
• Number of ports: 1
• Category: Cat.6A (Class EA)
• Shielding: Shielded (FTP/STP)
• Transmission speed: 10 Gigabit Ethernet
• Frequency range: Up to 500 MHz
• Wiring standard: TIA-568A/B
• Termination type: LSA
• Mounting type: Flush-mounted
• Colour: Aluminium
• Material: Thermoplastic, die-cast zinc
• Compatibility: Gira System 55, E2, Event, Esprit
• Contact material: Gold-plated
• Cable entry angle: 45 degrees
• PoE support: PoE+ (IEEE 802.3at), PoE++ (IEEE 802.3bt)
• Installation depth: Approx. 30 mm

Tips

For optimal performance, use shielded Cat.6A cable and ensure proper grounding of the shielding. Pair with a compatible Gira cover frame for a clean finish.
