GIRA 283228 System 55 Interruptor de tecla bipolar 10AX 250V antracita

Rated at 10 AX and 250 V AC, this 2-pole rocker switch handles demanding lighting and motor loads with reliable ON/OFF control. Its anthracite full-surface rocker and break-proof thermoplastic build are engineered for the Gira System 55 range, delivering both durability and a clean, modern look.

Overview

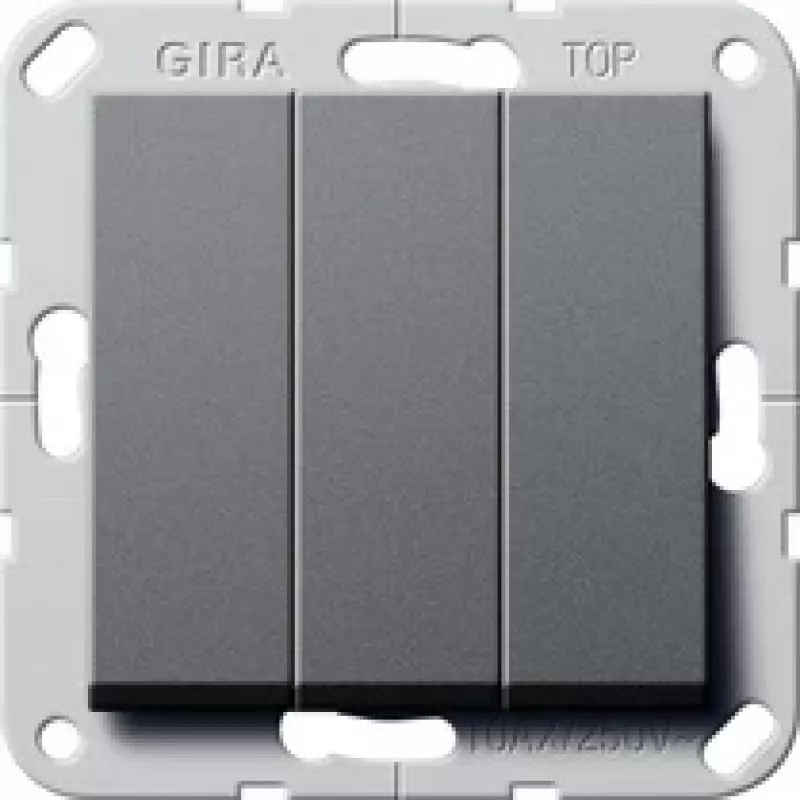

The GIRA 283228 is a flush-mounted insert switch designed for integration with Gira System 55 frames and covers. It features screw terminals accepting 1.5 to 2.5 mm² conductors, ensuring secure and straightforward wiring. The switch is halogen-free and certified by VDE, reflecting its compliance with German electrical safety standards.

What stands out

• 2-pole switching for complete isolation of live and neutral conductors
• 10 AX rating suitable for inductive loads like fluorescent lighting
• Full-surface rocker in anthracite for a sleek, modern appearance
• Break-proof thermoplastic material resistant to impact and wear
• Compatible with the entire Gira System 55 range for flexible design combinations

Technical details

• Switch type: Rocker switch
• Number of poles: 2
• Switching function: ON/OFF
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Mounting type: Flush-mounted (insert)
• Design line/series: Gira System 55
• Colour: Anthracite
• Material: Thermoplastic (break-proof)
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm²
• Halogen-free: Yes
• Operating temperature: -20 to +40 °C
• Certification: VDE
• Installation depth: Approx. 32 mm
• Rocker type: Full-surface rocker
• Product class: Installation material

Our verdict

A robust and stylish 2-pole switch that meets the high standards of the Gira System 55 ecosystem, ideal for professional installations requiring reliable load isolation and a premium anthracite finish.
