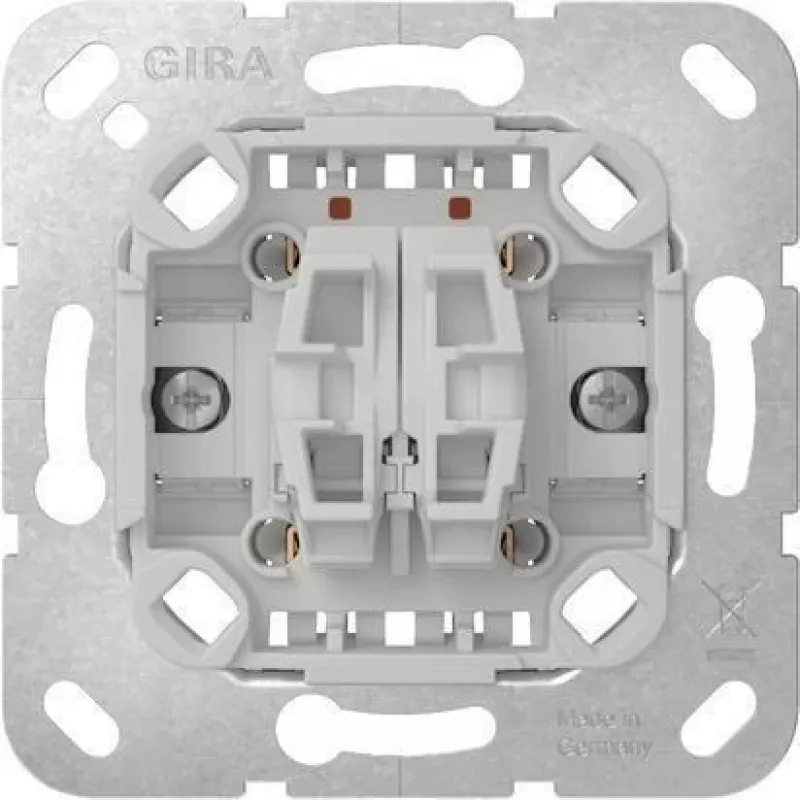

Gira 312800 Mecanismo conmutador bipolar, 10A 250V AC, bornes de tornillo, empotrar

Engineered for reliable switching of two independent circuits, the Gira 312800 push-button insert delivers a 2-pole changeover function with a robust 10 A / 250 V AC rating. Its momentary actuation and screw terminals make it a versatile core for custom control setups.

Overview

This modular insert is part of the Gira System 55 family and is compatible with a wide range of cover plates, including Gira E2, Event, Esprit, Standard 55, and F100. Designed for flush-mounted installation, it features a compact thermoplastic housing that is halogen-free and certified to VDE standards. The insert provides six terminals—two common, two normally open, and two normally closed—enabling flexible wiring for changeover applications.

What stands out

• 2-pole changeover switching for two independent circuits or a 2-pole load.
• Momentary push-button action for precise control.
• Rated for 10 A at 250 V AC, suitable for most residential and commercial loads.
• Screw terminals ensure secure, maintenance-free connections.
• Flush-mounted design integrates seamlessly into standard wall boxes.
• Compatible with multiple Gira cover plate ranges for design flexibility.

Technical details

• Switching function: Changeover (Wechsler)
• Number of poles: 2
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Mounting type: Flush-mounted (Unterputz)
• Actuation type: Momentary (Taster)
• Compatibility: Gira System 55, E2, Event, Esprit, Standard 55, F100
• Protection class: IP20
• Material: Thermoplastic (housing)
• Halogen-free: Yes
• Operating temperature: -20 to +40 °C
• Number of terminals: 6 (2 common, 2 NO, 2 NC)
• Certification: VDE
• Internal color: Black/Grey
• Design: Modular insert

Our verdict

A dependable and flexible changeover insert that pairs with Gira's extensive cover plate portfolio, making it an ideal choice for electricians and installers seeking a high-quality flush-mounted push-button solution.
