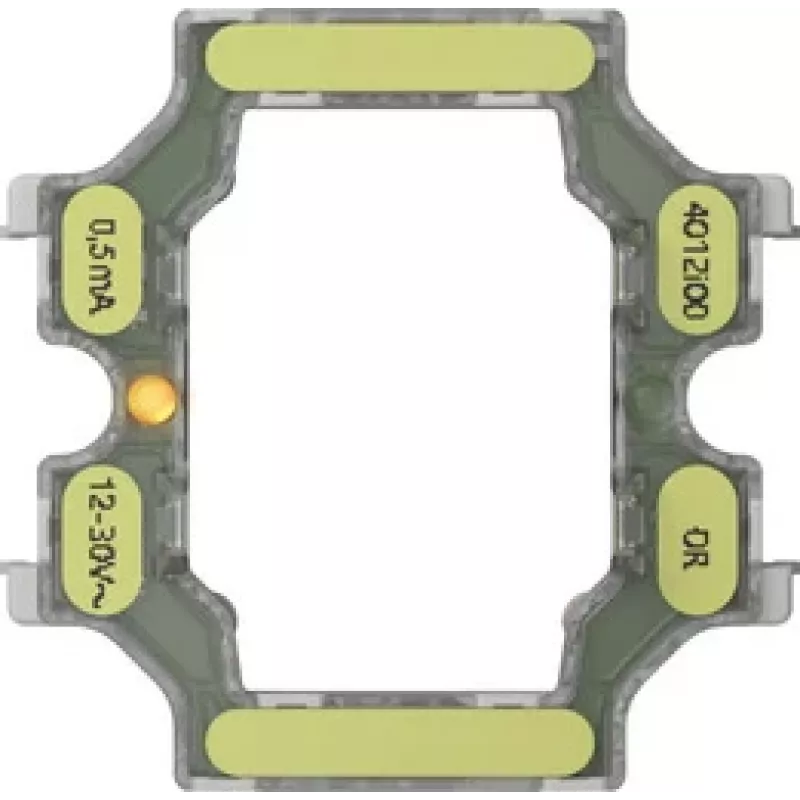

GIRA 3794012 Elemento de iluminación LED T4 0,5 mA naranja

LED illumination element for Gira switch ranges, providing clear status indication in orange. With a nominal current of 0.5 mA and low power consumption of 0.23 W, it offers energy-efficient operation. The T4 lamp form factor and integrated contacts ensure easy installation within switch mechanisms.

Advantages

Low power consumption, long service life, and uniform illumination. Compatible with multiple Gira switch ranges for flexible use.

Suitable for

• Gira System 55
• Gira E2
• Gira Event
• Gira Esprit
• Gira Standard 55

Key specifications

• Light source: LED
• Nominal current: 0.5 mA
• Nominal voltage: 230 V AC
• Light colour: Orange
• Lamp form factor: T4
• Power consumption: 0.23 W
• Housing material: Plastic
• Operating temperature range: -25 to +70 °C

Recommendations

Ideal for status indication in rocker switches, push-buttons, and key switches where low current draw and reliability are required.
