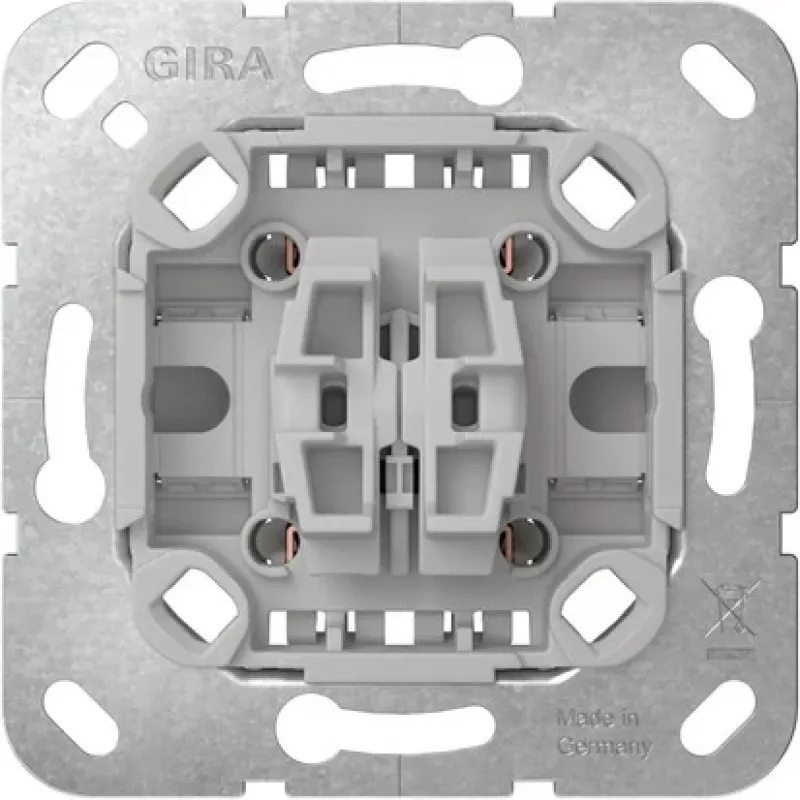

GIRA 381800 Mecanismo de interruptor basculante conmutador, 2 vías, sin garras de expansión

Electricians and installers use this GIRA 381800 rocker switch insert in residential and commercial buildings to control two independent lighting circuits from two different points each. It is a two-way switch (changeover switch) with two gangs, designed for flush-mounted installation in standard wall boxes. The insert works with Gira System 55, E2, Event, Esprit, Standard 55, ClassiX, F100, and TX_44 design lines, requiring a compatible rocker and frame (not included).

Key specifications

• Switch function: two-way (changeover)
• Number of gangs: 2
• Rated current: 10 A
• Rated voltage: 250 V AC
• Connection type: screw terminals, up to 2.5 mm² rigid conductors
• Mounting type: flush-mounted, screw fixing without spreading claws
• Material: thermoplastic
• Protection class: IP20
• Operating temperature range: -20 °C to +40 °C
• Installation depth: approx. 32 mm

Why choose it

The GIRA 381800 offers a reliable switching solution for two separate circuits, with screw terminals for secure connections and compatibility across multiple Gira design lines. Its compact design fits standard flush-mounted boxes, and the absence of spreading claws simplifies installation in certain wall types.

Ideal use cases

• Staircase lighting controlled from two locations
• Corridor lighting with two switch points
• Large rooms requiring two independent lighting circuits
• Renovation projects using Gira System 55 or compatible frames

Good to know

The insert is certified according to VDE and CE standards. It is intended for use with Gira rocker switches and frames from the listed design lines; the rocker and frame are not included in the scope of delivery.
