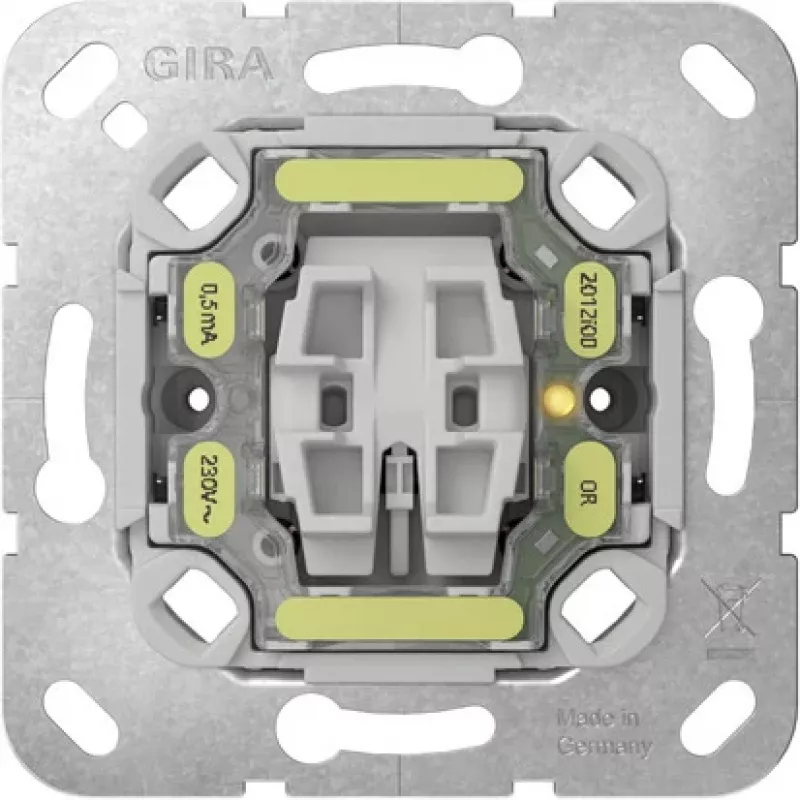

GIRA 382600 Mecanismo interruptor de control, 1 polo, 10 A, 250 V, empotrar, con conexión de luz de control, termoplástico, IP20

Electricians and installers use the GIRA 382600 control switch insert in residential and commercial flush-mounted installations to control lighting circuits. It provides a reliable switching point for single-pole, two-way applications and supports connection of an external indicator light for status display.

Key specifications

• Switch type: Off/Two-way switch (Aus-/Wechselschalter)
• Function: Control switch with indicator light connection
• Mounting type: Flush-mounted (Unterputz)
• Fastening method: Screw fastening without claw
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Number of poles: 1-pole
• Indicator light capability: Yes (requires separate lamp)
• Installation depth: Approx. 32 mm
• Material: Thermoplastic
• Protection class: IP20
• System compatibility: Gira System 55 and compatible design lines
• Switching principle: Rocker mechanism
• Number of rockers required: 1 (single rocker)
• Halogen-free: Yes
• Suitable for: Standard flush-mounted boxes

Why choose it

The insert is part of the Gira System 55 range and works with a wide selection of cover plates and rockers. Its screw terminals allow secure conductor connection, and the indicator light option provides visual status feedback when paired with a suitable lamp.

Ideal use cases

• Lighting control in homes and offices
• Two-way switching for staircases or corridors
• Applications requiring a switch with indicator light connection

Good to know

The insert is designed for flush-mounted installation in standard boxes. It is halogen-free and made of thermoplastic. A rocker and cover plate are not included and must be ordered separately from the Gira System 55 range.
