GIRA 387100 Mecanismo interruptor de tecla, contacto cerrado, 1 polo, 10 A, empotrar

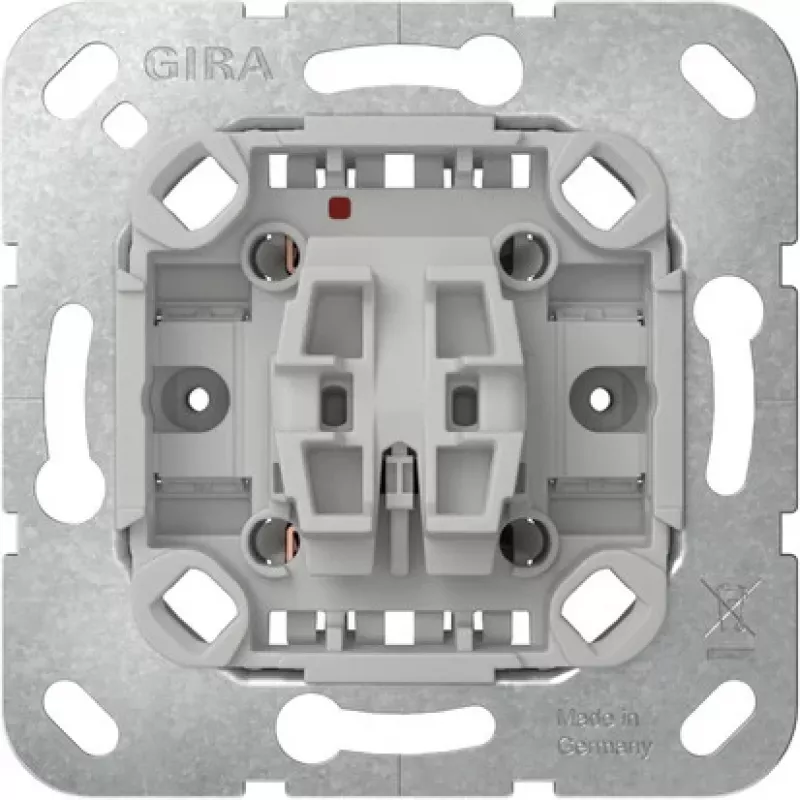

The GIRA 387100 rocker switch insert is a normally open contact mechanism designed for flush-mounted installation. It provides a reliable switching solution for Gira System 55, E2, Event, Esprit, and ClassiX series rockers and frames, allowing you to complete your installation with the desired cover plate.

Highlights

• Normally open (NO) contact function
• 1-pole switching
• Rated for 250 V AC and 10 A
• Screw terminals for secure wiring
• Halogen-free thermoplastic construction
• Compact design with approx. 24 mm installation depth

In daily use

This insert serves as the functional core of a rocker switch. When paired with a compatible Gira rocker and frame, it provides a straightforward push-to-make action for controlling lighting or other loads. The screw fixing without claws ensures a secure fit in standard flush-mounted boxes, and the screw terminals accommodate solid or stranded conductors for flexible installation.

Full specifications

• Product type: Rocker switch insert
• Switch function: Normally open (Schließer)
• Number of poles: 1-pole
• Mounting type: Flush-mounted (Unterputz)
• Fixing method: Screw fixing (without claws)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Material: Thermoplastic (PC)
• Protection class: IP20
• Operating temperature: -20 °C to +40 °C
• Compatibility: Gira System 55, E2, Event, Esprit, ClassiX series rockers and frames
• Installation depth: Approx. 24 mm
• Halogen-free: Yes

Final note

The GIRA 387100 is an internal mechanism; the visible rocker and frame are ordered separately to match your desired design.
