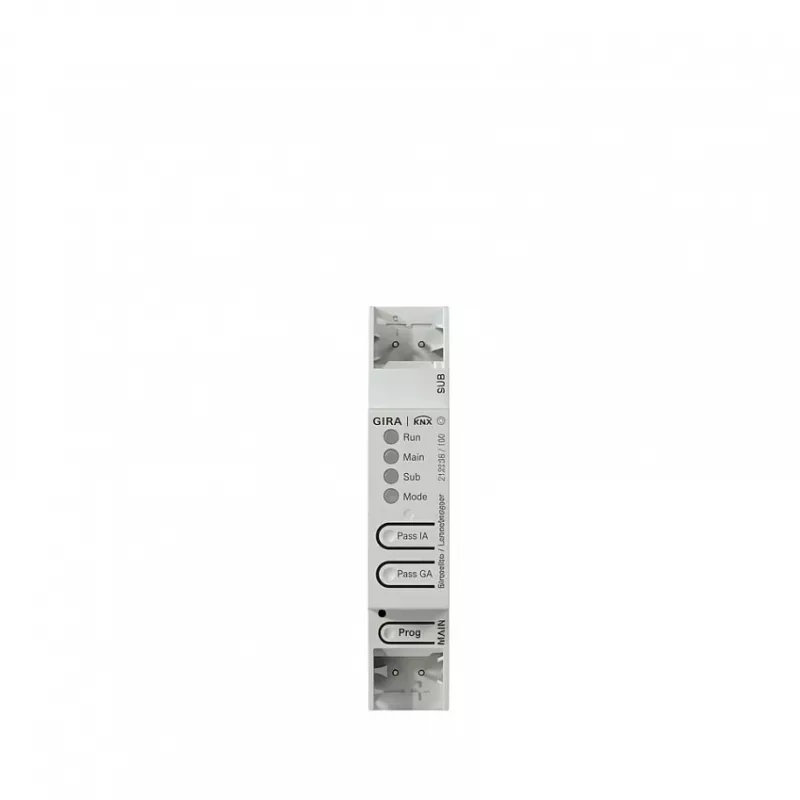

gira acoplador de área/línea KNX 212300 para instalaciones KNX, modelo 212300

The gira KNX area/line coupler 212300 is a dedicated device for KNX building automation networks that links separate KNX areas or line segments while preserving controlled communication between them. Designed for installations where topology segmentation and reliable data routing are required, the coupler supports structured network expansion and helps isolate faults between segments without affecting overall system operation. It is intended for use in residential and commercial KNX projects where improved stability and manageability are needed.

Advantages

The coupler allows separation of KNX lines to reduce bus load and improve response times on local segments while maintaining necessary telegram transfer between areas. It provides predictable behavior for group communication across segments and contributes to fault containment, so disturbances on one line do not propagate freely to other parts of the installation. The device is compatible with standard KNX topologies and integrates into existing installations to facilitate scalable system design and maintenance.

Suitable for

Key specifications

How to use

Install the coupler in the KNX distribution cabinet according to local electrical regulations and the manufacturer's mounting instructions. Connect the device to the appropriate KNX line segments using KNX bus cabling and ensure correct bus power supply and grounding. Configure group address routing and area/line parameters in the KNX ETS project to define which telegrams are forwarded between segments. After configuration, verify communication across segments and test fault isolation behavior under controlled conditions.

Recommendations

Plan segmentation and router configuration in ETS before physical installation; document line boundaries and routing rules to simplify future maintenance. Ensure that bus power, grounding, and cable topology meet KNX installation standards and verify functionality after any network changes.
