GIRA Actuador de conmutación para comunicación de puerta, empotrar, 1 contacto NO, 10 A 121100

Switching actuator for the Gira door communication system, flush-mounted, with a potential-free NO relay contact rated for 230 V AC, 10 A resistive load.

Overview

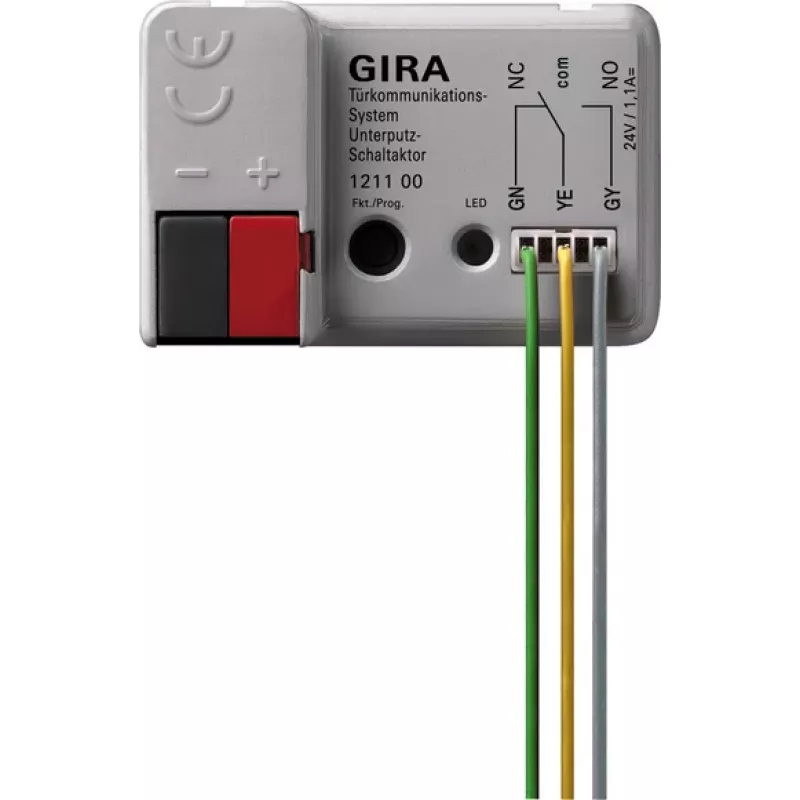

The GIRA 121100 is a switching actuator designed for integration into the Gira door communication system via the 2-wire bus. It provides one potential-free normally open (NO) relay contact, enabling control of external devices such as door openers, lights, or bells. The actuator is flush-mounted in a standard device box and features a manual operation button and status LED for local control and diagnostics.

What stands out

• Switching capacity up to 10 A at 230 V AC for resistive loads
• Manual operation button for direct on-site switching
• Status LED for clear operational feedback
• Compact flush-mounted design with only 32 mm installation depth
• Compatible with Gira System 6000 (2-wire bus)

Technical details

• Product type: Switching actuator
• Installation type: Flush-mounted (Unterputz)
• Application: Gira door communication system
• System compatibility: Gira System 6000 (2-wire bus)
• Number of contacts: 1
• Contact type: Potential-free NO (normally open) relay contact
• Switching capacity (resistive load): 230 V AC, max. 10 A
• Switching capacity (inductive load): 230 V AC, max. 4 A (cos φ = 0.6)
• Switching capacity (DC load): 24 V DC, max. 2 A
• Operating voltage: Via Gira 2-wire bus system
• Connection type: Screw terminals
• Features: Manual operation button, status LED
• Mounting: Standard flush-mounted device box
• Installation depth: Approx. 32 mm
• Programmability: Via Gira Project Assistant (GPA)
• Material: Plastic
• Operating temperature: 0 °C to +45 °C
• Protection class: IP20 (when installed)

Our verdict

Reliable switching actuator for Gira door communication systems, offering robust relay performance and easy installation.
