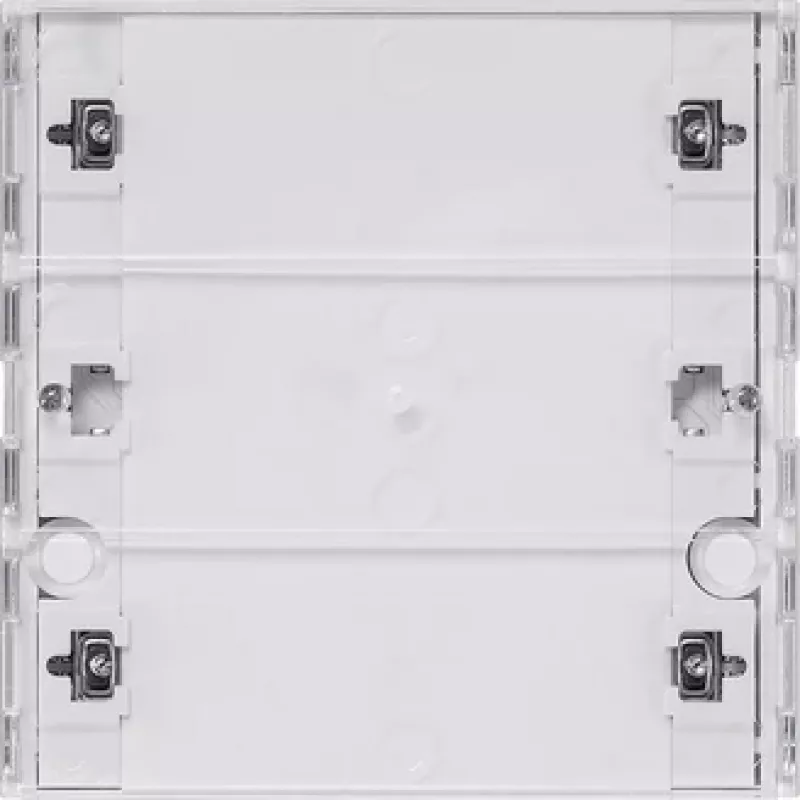

GIRA Emisor de pared inalámbrico 1 elemento 533100 Emisor de pared inalámbrico, 1 canal, 868,3 MHz, blanco puro

Operating on the Eltako-Funk protocol at 868.3 MHz with up to 10 mW transmission power, this 1-channel wall transmitter delivers reliable wireless control for switching, dimming, and blind commands. Its surface-mounted design and Pure White (RAL 9010) thermoplastic housing integrate seamlessly into standard 80x80 mm switch plates.

Overview

The GIRA 533100 is a mains-powered wireless wall transmitter with a single rocker. It connects directly to 230V AC (L and N) and draws less than 0.5 W in standby. The device communicates with compatible Eltako actuators such as FSR61, FUD61, and FSB61, enabling flexible control without additional wiring.

What stands out

• 1-channel pushbutton for switching, dimming, or blind control
• Eltako-Funk wireless technology at 868.3 MHz
• Transmission power up to 10 mW
• Indoor range up to 30 meters, outdoor up to 100 meters
• Mains powered (230V AC) with standby consumption below 0.5 W
• Surface-mounted in Pure White (RAL 9010) thermoplastic
• IP20 rated for indoor use

Technical details

• Brand: GIRA
• Model: 533100
• MPN: 533100
• EAN: 4010337116509
• Wireless technology: Eltako-Funk
• Number of channels: 1
• Power supply: Mains powered
• Operating voltage: 230V AC
• Frequency band: 868.3 MHz
• Transmission power: Max. 10 mW
• Mounting type: Surface-mounted
• Colour: Pure White (RAL 9010)
• Material: Thermoplastic
• Protection class: IP20
• Ambient temperature: 0°C to +50°C
• Relative humidity: 0% to 95% (non-condensing)
• Standby power consumption: < 0.5 W
• Control type: Pushbutton
• Compatibility: Eltako Funk system (e.g., FSR61, FUD61, FSB61)

Our verdict

A compact and reliable wireless wall transmitter for Eltako-based smart home installations, offering straightforward single-channel control with low standby power.
